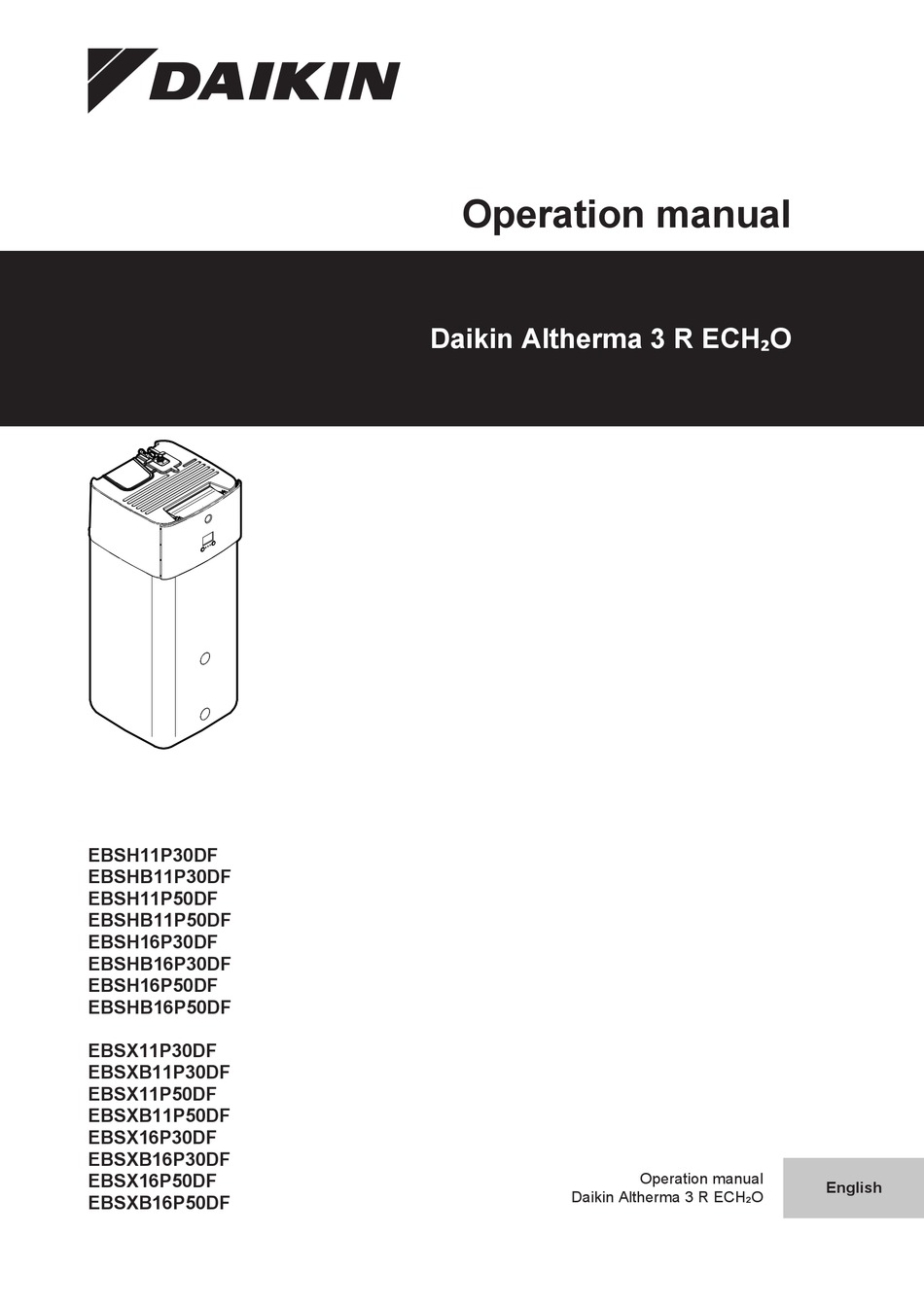

- Page 1 Operation manual Daikin Altherma 3 R ECH₂O EBSH11P30DF EBSHB11P30DF EBSH11P50DF EBSHB11P50DF EBSH16P30DF EBSHB16P30DF EBSH16P50DF EBSHB16P50DF EBSX11P30DF EBSXB11P30DF EBSX11P50DF EBSXB11P50DF EBSX16P30DF EBSXB16P30DF Operation manual EBSX16P50DF English Daikin Altherma 3 R ECH₂O EBSXB16P50DF...
-
Page 2: Table Of Contents
Latest revisions of the supplied documentation may be available on To check the malfunction history..........18 the regional Daikin website or via your installer. Symptom: You are feeling too cold (hot) in your living room..19 Symptom: The water at the tap is too cold ........ 19 The original documentation is written in English. -
Page 3: User Safety Instructions
Waste batteries MUST be treated at a specialised treatment facility for reuse. By ensuring waste batteries are disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 4: Instructions For Safe Operation
▪ User: Standard mode of the user interface. ▪ Advanced user: You can read out and edit more information ▪ If not, you can purge air immediately. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 5: Space Heating/Cooling
1 Go to the applicable zone: Zone Go to … Main zone – Heating [2.5] Main zone > Heating WD curve EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 6: Domestic Hot Water
Operation ▪ "5.6 Space heating/cooling ▪ "5.8 Schedule screen: Example" [ 4 14] INFORMATION curve" [ 4 15] ▪ "5.9 Weather-dependent Cooling is only applicable in case of reversible models. ▪ User reference guide Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 7: User Interface: Overview
Slot for WLAN cartridge With the WLAN cartridge, the installer can connect the system to the internet. As user you can then control the system via the Daikin Residential Controller app. Note: This slot cannot be used for SD cards. -
Page 8: Menu Structure: Overview User Settings
Only applicable for reversible models, or heating only models + conversion kit (**) Only accessible by installer (***) Only applicable when WLAN is installed INFORMATION Depending on the selected installer settings and unit type, settings will be visible/invisible. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 9: Possible Screens: Overview
Go through the list of the main menu. Go to the main menu screen. Holiday mode Enable/disable breadcrumbs. Holiday mode active Item Description a Domestic hot water Domestic hot water Measured tank temperature EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 10: Main Menu Screen
Adjust and automatically apply the desired zones. Shows the applicable symbol temperature. for your additional zone emitter type. Set the leaving water temperature for the additional zone (if present). Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 11: Detailed Screen With Values
To read out information 1 Go to [8]: Information. Possible read-out information In menu… You can read out… [8.1] Energy data Produced energy, consumed electricity, and consumed gas, energy flow diagram EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 12: Space Heating/Cooling Control
To restrict automatic changeover according to a schedule Conditions: You set the space operation mode to Automatic. 1 Go to [4.2]: Space heating/cooling > Operation mode schedule. 2 Select a month. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 13: Domestic Hot Water Control
When powerful operation is active, the risk of space heating/cooling and capacity shortage comfort problems is significant. In case of frequent domestic hot water operation, frequent and long space heating/cooling interruptions will happen. EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 14: Schedule Screen: Example
1 Select the day of which you want to clear the content. For example Friday 2 Select Copy. User defined 1 Delete Edit Copy Result: Next to the copied day, "C" is displayed. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 15: Weather-Dependent Curve
Which type of curve you use to make adjustments, depends on your personal preference. "5.9.4 Using weather-dependent curves" [ 4 17]. Availability The weather-dependent curve is available for: ▪ Main zone - Heating EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 16: 2-Points Curve
For example, if leaving water temperature is in general fine but at low ambient temperatures too cold, raise the slope so that leaving water temperature is heated increasingly more at decreasingly lower ambient temperatures. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 17: Using Weather-Dependent Curves
When the maximum lower the tank temperature daily by 1°C and check if you still have or minimum setpoint is reached, the curve flattens out. enough hot water. EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 18: Maintenance And Service
▪ Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer. ▪ Be aware that the refrigerant inside the system is odourless. Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 19: Symptom: You Are Feeling Too Cold (Hot) In Your Living Room
EBSH/X(B)11+16P30+50DF Operation manual Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... -
Page 20: Disposal
Control (read only) [3.9] Setpoint mode [3.4] Schedule [3.1] WD curve type [3.C] (read only) Tank Heat up mode [5.6] Hysteresis [5.9] 11.2 Settings menu Setting Fill in… Main zone Operation manual EBSH/X(B)11+16P30+50DF Daikin Altherma 3 R ECH₂O 4P663485-1 – 2021.07... - Page 24 4P663485-1 0000000U 4P663485-1 2021.07 Verantwortung für Energie und Umwelt...
