ODU MINI-SNAP F Series Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

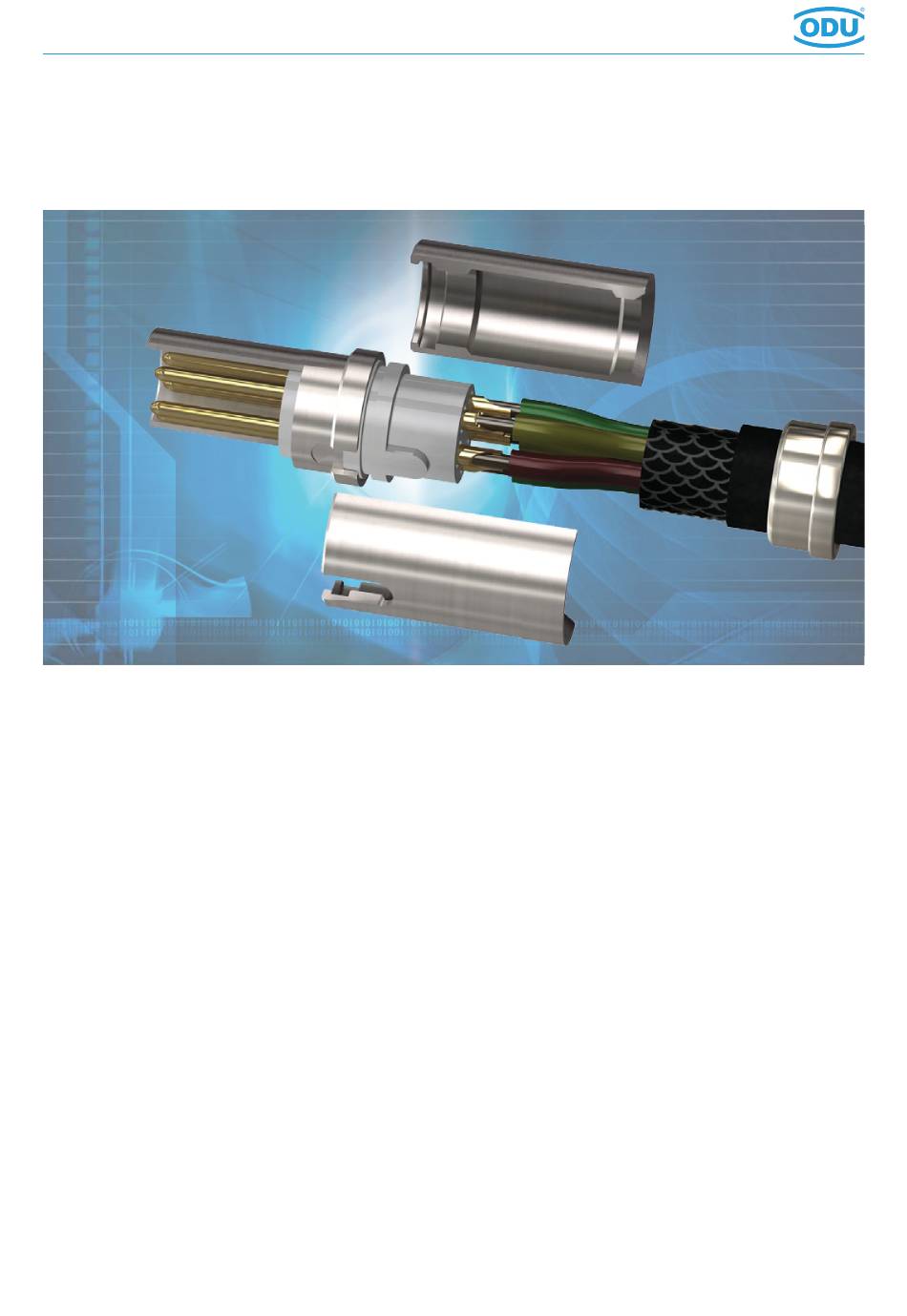

ODU MINI-SNAP® Series F
010.054.000.000.000
Assembly Instructions
Unsealed Plugs (IP 50)
– Crimp Version
– Solder Version
Sealed Plugs (IP 68)
– Crimp Version
– Solder Version
Sealed Right-Angled Plugs (IP 68)
– Crimp Version
– Solder Version
www.odu.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINI-SNAP F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ODU MINI-SNAP F Series

Summary of Contents for ODU MINI-SNAP F Series

  • Page 1 ODU MINI-SNAP® Series F 010.054.000.000.000 Assembly Instructions Unsealed Plugs (IP 50) – Crimp Version – Solder Version Sealed Plugs (IP 68) – Crimp Version – Solder Version Sealed Right-Angled Plugs (IP 68) – Crimp Version – Solder Version www.odu.de...
  • Page 2 010.054.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Straight Plug and In-line Receptacle IP 50 Crimp Version Back nut (style 1) Insert with In-line receptacle solder capacity Half-shells EMI ring Cable collet Back nut for cable bend cable bend relief...
  • Page 3 010.054.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions 4. Insert contacts into insulator according to contact arrangement. 5. Bend cable shield outwards. Assemble half-shells. 6. Slide the EMI ring and the cable collet against the half-shells and clamp the shield against it.
  • Page 4 010.054.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Straight Plug and In-line Receptacle IP 50 Solder Version Back nut (style 1) Insert with In-line receptacle solder capacity Half-shells EMI ring Cable collet Back nut for cable bend cable bend relief...
  • Page 5 010.054.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions 4. Solder the wires (A) according to contact arrangement. 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring and the cable collet against the half-shells and clamp the shield against it.
  • Page 6 010.055.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Straight Plug and In-line Receptacle IP 68 Crimp Version Washer Back nut EMI ring (optional) (style 1) Insert with In-line receptacle solder capacity Half-shells Sealing Cable collet Back nut for cable bend...
  • Page 7 010.055.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions 4. Insert contacts into insulator according to contact arrangement. 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring, sealing, washer and the cable collet against the half-shells and clamp the shield against it.
  • Page 8 010.055.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Straight Plug and In-line Receptacle IP 68 Solder Version Washer Back nut EMI ring (optional) (style 1) Insert with In-line receptacle solder capacity Half-shells Sealing Cable collet Back nut for cable bend...
  • Page 9 010.055.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions 4. Solder the wires (A) according to contact arrangement. 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring, sealing, washer and the cable collet against the half-shells and clamp the shield against it.
  • Page 10 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Right-Angled Plug IP 68 Crimp Version Insert with Half-shell O-ring Back screw solder capacity Plug Right-angled part EMI ring Sealing Washer (optional) Back nut for Crimp insert cable bend Cable collet relief (style 2)
  • Page 11 If necessary, secure thread (B) with adhesive (see page 19). Screw back nut on the assembled plug, counterhold by means of the spanner at (C) and hold against with ODU spanner wrench. Caution! Consider tightening torque (see page 19). www.odu.de...
  • Page 12 If necessary, secure thread (D) with adhesive (see page 19). 8. Mount back screw (F) on the assembled plug and fasten cable with the ODU spanner wrench in the housing. Caution! Consider tightening torque (see page 19). The assembly is nished.
  • Page 13 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions www.odu.de Page 13...
  • Page 14 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Right-Angled Plug IP 68 Solder Version Insert with Half-shell O-ring Back screw solder capacity Plug Right-angled part EMI ring Sealing Washer (optional) Back nut for Crimp insert cable bend Cable collet relief (style 2)
  • Page 15 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions 4. Solder the wires (A) according to contact arrangement. 5. Bend cable shield outwards, place half-shells and right-angled part over insulator. 6. Slide EMI ring, sealing, washer and cable collet against the right-...
  • Page 16 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions Assembly Right-Angled Plug IP 68 Solder Version 7. Put the assembled cable considering the guidings (D) in the connector housing. If necessary, secure thread (E) with adhesive (see page 19). 8. Mount back screw on the...
  • Page 17 010.053.000.000.000 ODU MINI-SNAP® Series F Assembly Instructions www.odu.de Page 17...
  • Page 18 Size diameter Torque moment in Nm 3. Tools/Accessories – ODU open-ended spanner see ODU MINI-SNAP series F, product catalogue section accessories and tools – ODU crimping tool see ODU MINI-SNAP series F, product catalogue section accessories and tools 4. Recommended glue for the back nut Loctite®...
  • Page 19 3. Tightening torque of the back screw (right-angled plug) Size 4. Tools/Accessories – ODU open-ended spanner see ODU MINI-SNAP series F, product catalogue section accessories and tools – ODU crimping tool see ODU MINI-SNAP series F, product catalogue section accessories and tools All dimensions in mm, dimension tolerance: +10 % 5.
