ODU Easy-Clean AMC Assembly Instruction Manual

ASSEMBLY INSTRUCTION
®
ODU AMC

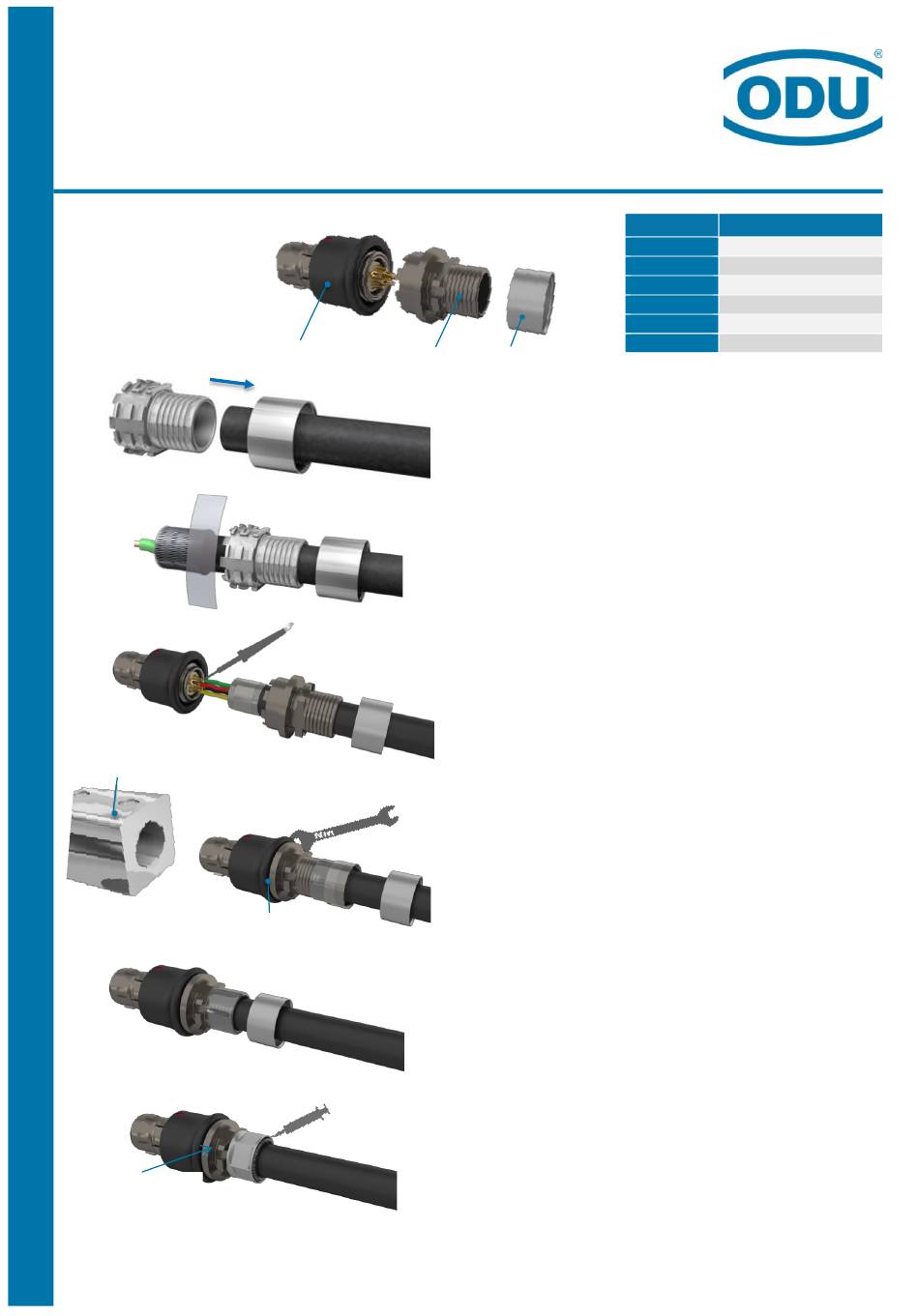

1. Cable assembly
Note: Images are examples
and may differ from the
product.
ODU assembly tool
Adhesive
Sealing surface
overmold
All Rights reserved, including possible patents or trademarks. Documents shall not be provided to a third party or duplicated in any form without prior written permission.
This document is not managed.
& ODU AMC
Plug
Crimp adapter
®
Easy-Clean
Crimp sleeve
1. Slide crimp sleeve and crimp adapter over the
cable. The crimp sleeve is not needed if a metal
band is used for fastening the shield to the crimp
adapter.
2. Strip the cable and conductors (page 2). Fold
back the shield and use fastening tape to fasten
it temporarily to the cable jacket. Tin-plate this
wires if needed.
3. Solder the wires, noting the placement of each
wire according to your wiring chart. Clean the
solder area with Isopropylalcohol and brush.
4. Screw the crimp adapter on so that it is flush,
observing torque values. Secure the screw
thread with adhesive. The assembly tools
should be used to counter the torque.
5. Remove the fastening tape and lay the shield
braid on to the crimp adapter.
6. Fasten the shield braid to the crimp adapter by
means of crimping or by using a metal band.
More information
compound into the connection area
7. Bend relief: This can be implemented by means
of overmolding or by using shrink boot.
More information. (s
General information: Illustrations only exemplary. Product may vary in appearance.
1) Additional information for cable preparation etc. please see page 2 and following
1
max. cable  mm
Size
0 5.5
1 6.5
1.5 8.0
2 10.0
3 11.5
4.5 17.5
Note! Cable with foil shield such as foiled twisted
pair-cable (FTP) not suitable for shield termination
mentioned below.
.
Pour potting
(see page 4)
ee page 5)
(see page 3)
