ODU AMC Assembly Instruction Manual

ODU AMC
BREAK-AWAY PLUG
ASSEMBLY INSTRUCTION

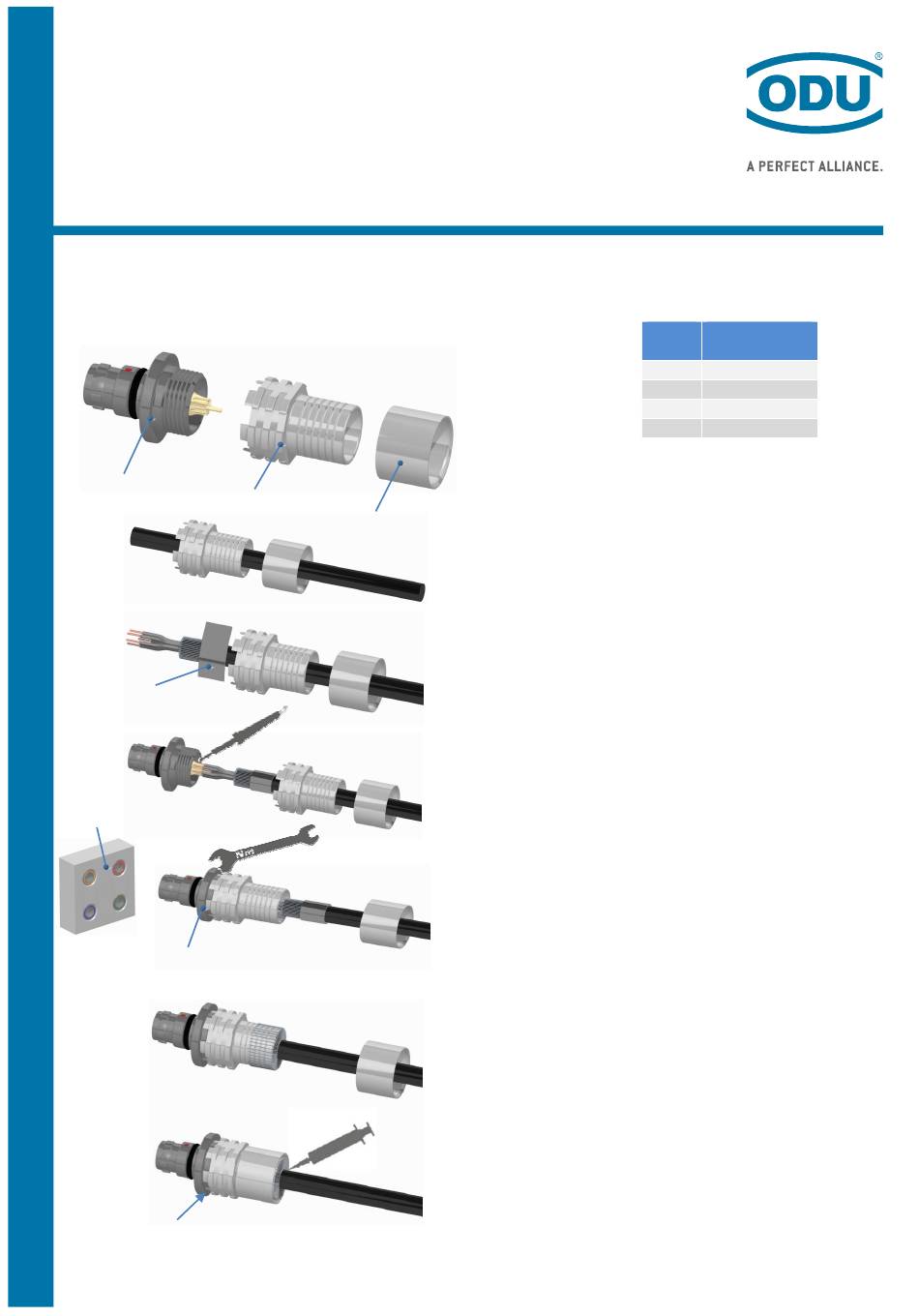

1 Assembly sequence

Plug
Crimp adapter
Fastening tape
ODU advise Crepe masking tape
e.g. Würth: 09920019
ODU assembly tool
(on request)
Adhesive
Sealing surface for cable overmolding
1) Additional information for cable preparation etc. please see page 2 and following
2) Secure the crimp adapter on housing with adhesive (ODU advise Loctite 2701)
All Rights reserved, including possible patents or trademarks. Documents shall not be provided to a third party or duplicated in any form without prior written permission.
This document is not managed
®
HIGH-DENSITY
Crimp sleeve
Note: Cable with foil shield such as foiled twisted pair-cable
(FTP) not suitable for shield termination mentioned
below.
1. Slide crimp sleeve and crimp adapter over the cable. The
crimp sleeve is not needed if a metal band is used for
fastening the shield to the crimp adapter.
2. Strip the cable and conductors
use fastening tape to fasten it temporarily to the cable
jacket. Tin-plate this wires if needed.
3. Solder the wires, noting the placement of each wire
according to your wiring chart.
Clean the solder area with Isopropylalcohol and brush.
4. Screw the crimp adapter on so that it is flush, observing
torque values
(see page 3)
Secure the screw thread with adhesive
5. Remove the fastening tape and lay the shield braid on to
the crimp adapter. Fasten the shield braid to the crimp
adapter by means of crimping or by using a metal band.
More information see page 4
Encapsulate the interior of the crimp adapter to secure the
soldered points(ODU advise WEVO-2K-casting resin
PU552FL).
6. Bend relief: This can be implemented by means of
overmolding or by using a shrink tube.
More information see page 5.
max. cable ∅
Size
mm
00 (C) 5.0
0 7.0
1 8.5
1.5 (A) 10.5
1)
. Fold back the shield and
.
2)
.
.
010.650.001.000.001-a
1
