Siemens HMI-15 User Manual

Roller ac servo system

Advertisement

Quick Links


Safely Instruction
· Please read this manual carefully, also with related manual for the machinery before use the controller.
· For installing and operating the controller properly and safely, qualified personnel are required.
· Please try to stay away from arc welding equipment, in order to avoid electromagnetic interference and
malfunction of the controller.
· Keep in room bellow 45℃and above 0℃.
· Do not humidity below 30% or above 95% or dew and mist of places.
· Install the control box and other components, turn off the power and unplug the power cord.
· To prevent interference or leakage accidents, please do the ground work, the power cord ground wire
must be securely connected to an effective way to earth.
· All parts for the repair provided by the Company or approved before use.
· Performing any maintenance action, you must turn off the power and unplug the power cord. There are
dangerous high voltage control box, you must turn the power off after one minute before opening the
control box.
· This manual marked with the symbol of the Department of Safety Precautions must be aware of and
strictly adhered to, so as not to cause unnecessary damage.
1 Installation Instructions
1.1 Product specifications
Product Type
Power frequency

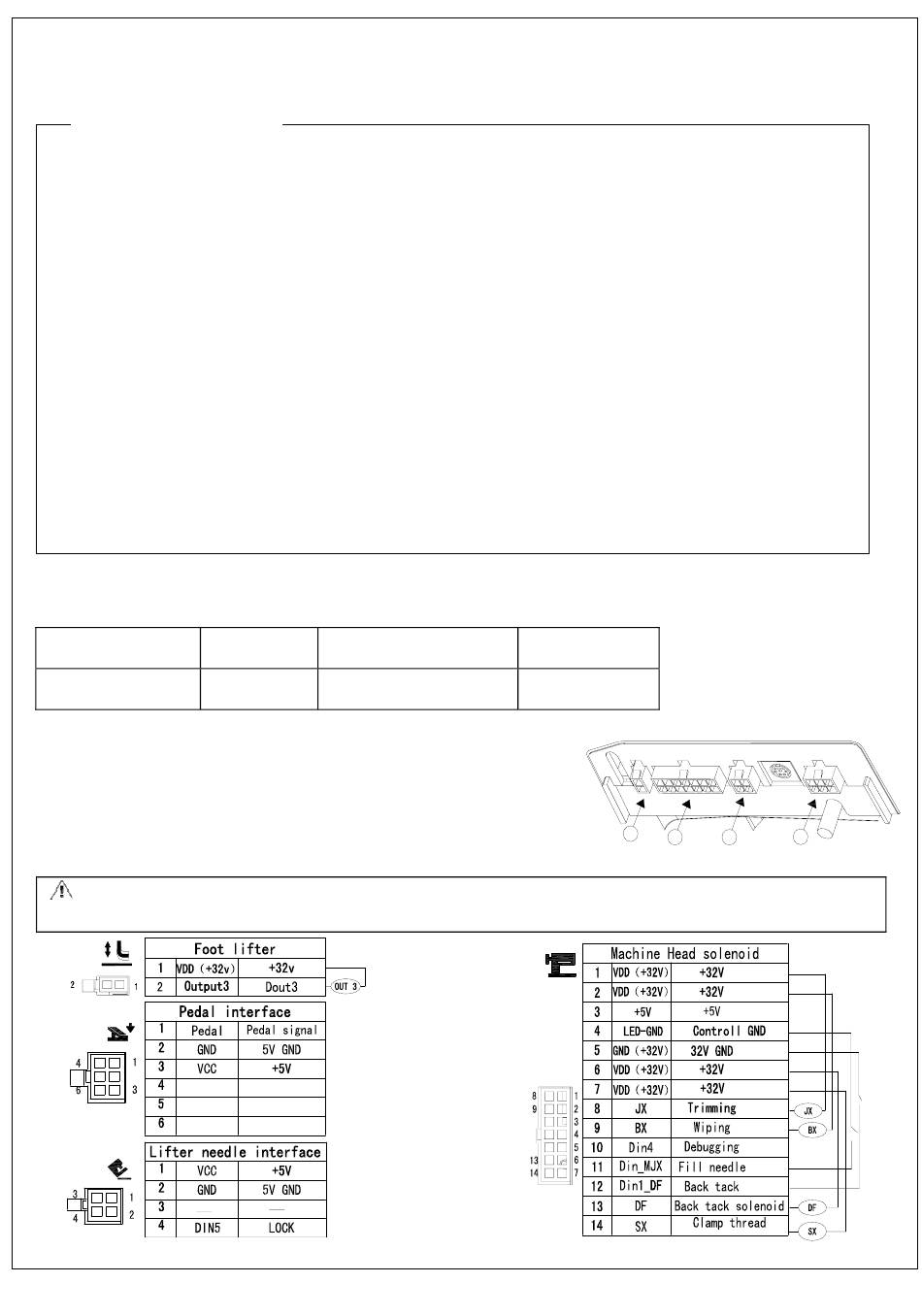

1.2 Interface plug connections
The pedals and the machine head of the connector plug are Mounted
to the corresponding position in the controller back of socket, as shown
in Figure 1-1. Please check if the plug is inserted firmly.
① Foot lifter solenoid socket; ② Machine head solenoid socket;
③ Lifter needle lock socket;
The use of the normal force are not inserted into the plug and socket, please check whether the matching,
direction or needle insertion direction is correct!
Roller AC Servo System
HMI-15 User Manual
ASE59
Supply Voltage
50Hz/60Hz
Maximum output power
Pedals socket;
Fig.1-2 Controller Interface Definition
AC 220 ± 44 V
750W
1/8
1
2
3
Fig.1-1 Controller Socket Diagram
4


Advertisement

loading

Summary of Contents for Siemens HMI-15

  • Page 1 Roller AC Servo System HMI-15 User Manual   Safely Instruction  · Please read this manual carefully, also with related manual for the machinery before use the controller. · For installing and operating the controller properly and safely, qualified personnel are required.
  • Page 2   1.3 Wiring and Grounding We must prepare the system grounding project, please a qualified electrical engineer to be construction. Product is energized and ready for use; you must ensure that the power outlet the AC input is securely grounded. The grounding wire is yellow and green lines, it must be connected to the grid and reliable security protection on the ground to ensure safe use, and prevent abnormal situation.
  • Page 3 Name Description In constant-stitch sewing: a. One shot to the pedal, automatic performed number of stitches of every One-shot-sewin section. g selection b. Toe down the pedal again and again to finish rest the sections until it finish pattern. 1). As the pedal is toed down, machine will start sewing. Once the treadle returned to neutral, Free sewing machine will stop immediately.
  • Page 4 3 System Parameters Setting List 3.1 Parameter table Mode Range Default Description key , the digital tube display P100; 1、Long press 2、Press key to display the value of the current parameter 3、Press the corresponding key and key to change the parameter value or selection parameter number,  ...
  • Page 5 Special mode: 0: normal Mode 1 4 3 0/1/2 1: simply sewing mode /3 2: motor initial angle measurement (Do not remove the belt) 3: Automatically setting the pulley ratio by the CPU. (synchronizer is necessary and the belt not removed) Feedforward torque of motor: 1 4 4 0~31...
  • Page 6: Monitor Mode

    2 3 4 0/1 Motor direction: 1: CCW 0: CW 2 4 0 0~9999 1000 The ratio between motor and machine (1000 stands for 1:1) 2 4 2 0~359 Up needle stop angle (After detecting the synchronizer signal) 2 4 3 0~359 Down needle stop angle 2 4 4...
  • Page 7: Error Mode

    3.4 Error Mode If the error code appears, please check the following items first: 1.Make sure the machine has been connected correctly; 2. Reload the factory setting and try again. Error Description Solution Code E r - 0 1 Hardware overcurrent Turn off the power switch, and restart after 30 seconds.
  • Page 8 P 0 2 4 The control system in the restoration of the factory, can be reset up needle stop position. 0 0 0 0 Step 1: Press key, then Press ,enter the monitor mode. Parameter 024 is shown, which means the default up needle stop position in angle(0°). 0 1 2 4 Step 2: Turn the hand wheel and adjust to the right position as up needle stop, and the needle position angle is shown simultaneously.
