Opal CCM711 User Manual

User Manual

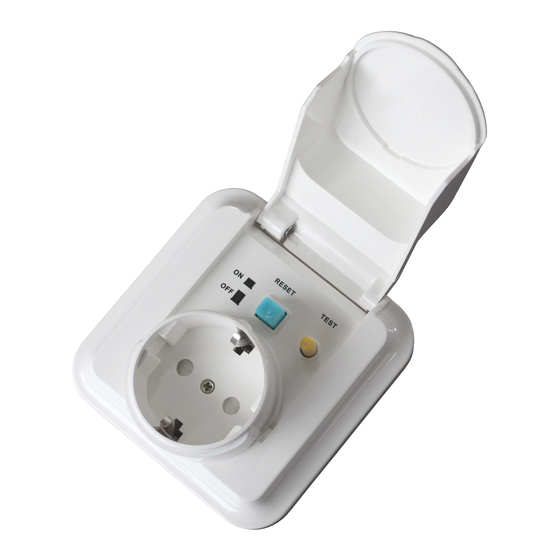

Socket RCD (CCM711)
English
Finnish
Swedish
USER MANUAL (GB)
Function Description
The function of this safety socket outlet is the same as for a residual current device, it could protects all
devices and cables connected to the safety socket outlet .
Authorised persons:
Installation, connection and removal may only be performed by a qualified electrician.
Operating test
After installation, it is important to check the corrective function to safety socket outlet .Press the Reset
button ,and then press the test button, the unit must trip.in addition, Check with a suitable tester that the
power is actually switched off .
Safety socket outlet must not be used if it has not passed this function test.
test the function of the safety socket outlet from time to time, e.g. every month. The test can be carried
out as follows:
1、 Press Reset button.
2、 Press Test button, the unit must trip.
3、 Press Reset button again.
If Unit can not trip, contact an qualified electrician to check the device.
Connection diagram
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can take this product for environmental
safe recycling.
