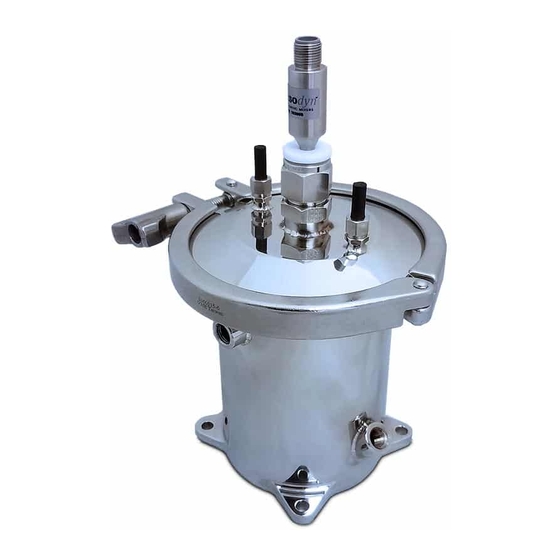

- Page 1 LabRAM II Jacketed Vessel Users’ Manual Resodyn Acoustic Mixers, Inc. 130 N. Main Street, Suite 630, Butte, MT 59701 (406) 497-5333 www.resodynmixers.com...
-
Page 2: Table Of Contents
Jacketed Vessel Assembly – Component Pictures ..........9 Jacketed Vessel Accessory Installation and Removal .......... 11 Operating Instructions ........................13 LabRAM II Jacketed Vessel Accessory Operation ..........13 Service Information ........................14 Maintenance and Service ..................14 Supplemental Information ......................15... -
Page 3: Introduction
• coolants, including steam, water, antifreeze, hot oil, etc. Not covered in this manual are: Details, use, operation, or repair of LabRAM II, Pharma RAM II, or LabRAM II H • mixers. Please refer to those manuals for more information •... -
Page 4: Definitions And Abbreviations
Resistance Temperature Detector used to measure the temperature of processing materials Service Loop: A gradual arc in lines and cables connected to the Jacketed Vessel to accommodate the vertical movement of the LabRAM II mixing platform during operation. Stainless Steel Vacuum: Internal vessel pressure that is less than atmospheric pressure. -
Page 5: Safety Information
SAFETY INFORMATION Safety Information Every effort has been made to assure that the LabRAM II Jacketed Vessel is easy to use, reliable, and safe. This section outlines the general safety considerations and highlights important information with caution and warning symbols used throughout this document. - Page 6 50 psig (3.5 bar) for the Jacketed Vessel system. A (user supplied) product-side pressure relief valve must be installed (i.e. in the vacuum line) if the LabRAM II Jacketed Vessel is used in applications where the process pressure inside the mixer could exceed 50 psig.
-
Page 7: General Notes
Vacuum lines connecting LabRAM II vacuum ports to Jacketed Vessel fixture Lid Four tube plugs (for operation without vacuum, includes two extra) • • Four bolts with washers for anchoring the Jacketed Vessel fixture to the LabRAM II platform Two braided SS flex hoses for Jacketed Vessel heating/cooling transfer fluid •... - Page 8 LabRAM II Jacketed Vessel Users’ Manual SAFETY INFORMATION RTD Assembly Vacuum Port (1 of 2) O-ring Jacketed Face-Seals Vessel Lid Jacketed Vessel Sanitary Jacket Quick-Clamp Heat Transfer Fluid Port Mixing Liner Bolt for Mounting on LabRAM II Figure 4-1. Jacketed vessel cutaway showing the components included in the assembly (except hoses and cables).
-
Page 9: Installation
In Figure 5-2 the fully assembled Jacketed Vessel is pictured mounted on a LabRAM II mixer resonator plate with all connections attached. Note that each line or cable attached to the Jacketed Vessel fixture forms a gradual arc (or service loop) to accommodate the vertical movement of the LabRAM II mixing platform during operation. - Page 10 LabRAM II Jacketed Vessel Users’ Manual SAFETY INFORMATION Figure 5-2. Jacketed Vessel mounted on a Resodyn LabRAM II mixer. Figure 5-3. RTD assembly, sleeve, nut, and ferrules used to seal the RTD feed. Resodyn Acoustic Mixers, Inc. Rev. 110119...
-
Page 11: Jacketed Vessel Accessory Installation And Removal
Attach each of the Heat Transfer Fluid Hoses to the back panel of the LabRAM II mixer as shown in Figure 5.2. The Jacketed Vessel should work equally well regardless of the direction of flow, but if a specific flow direction is desired, note the hose locations. - Page 12 LabRAM II Jacketed Vessel Users’ Manual SAFETY INFORMATION Adjust the RTD height until the tip extends the desired distance from the bottom of the lid to the desired depth into the removable Mixing Vessel. If the RTD does not slide easily through the PTFE Sleeve, loosen the Compression Nut.
-
Page 13: Operating Instructions
Use proper PPE. • Operating Instructions 6.1 LabRAM II Jacketed Vessel Accessory Operation Isolate the Jacketed Vessel from the vacuum pressure (if used) and heating/cooling transfer fluid supply pressure (e.g. turn off the heat transfer fluid pump). -
Page 14: Service Information
Service Information 7.1 Maintenance and Service The LabRAM II Jacketed Vessel accessory should only be operated when it is in good working condition. If the system shows any signs of visible damage or fails to operate as outlined in this manual, the system should not be operated. -
Page 15: Supplemental Information
2956 1/2" PTFE Ferrule Set 102665 Tube Plug, PTFE Heat Transfer Fluid Hose 1339 for Service Loop (not shown) Antistatic Tubing for 3285 Vacuum Lines (not shown) Figure 8-1: LabRAM II Jacketed Vessel Components Resodyn Acoustic Mixers, Inc. Rev. 110119... - Page 16 Innovative Mixing Technologies OmniRAM™ RAM 5 RAM 55 LabRAM™ II LabRAM™ II H LabRAM™ 130 North Main St., Suite 630, Butte, MT 59701 406-497-5333 info@resodynmixers.com www.resodynmixers.com...
