Running the PC software for DALI-STM32

6 Running the PC software for DALI-STM32
The ST7 DALI user interface is available with STM8 DALI example (AN3298). Use the
"PowerControl" file in the following path of STM8 package:
STM8Sx_AN3298_FW_V2.0.0\Utilities\PC_Software\ST7 DALI Master.
The user interface consists of a main window and 5 other windows. The main window is
always visible.
Select "View" menu to choose other visible windows.
Following windows options appear in drop down menu:
Ballast grid window: ballasts found on the bus after a search light level slider window:
buttons and sliders for adjusting light level parameters selection window: buttons for
selecting groups scene window: buttons for selecting scenesDALI logger window: displays
all DALI commands sent.
6.1

Basic commands

Addressing the ballast
Select "Extras" menu in the main window and select item "Search for ballasts...". The
following window appears:
Run a "Full Search". When it is finished, run a "Quick Search".
The master will find a ballast on the network. The ballast window shows the ballast as
shown in
26/31

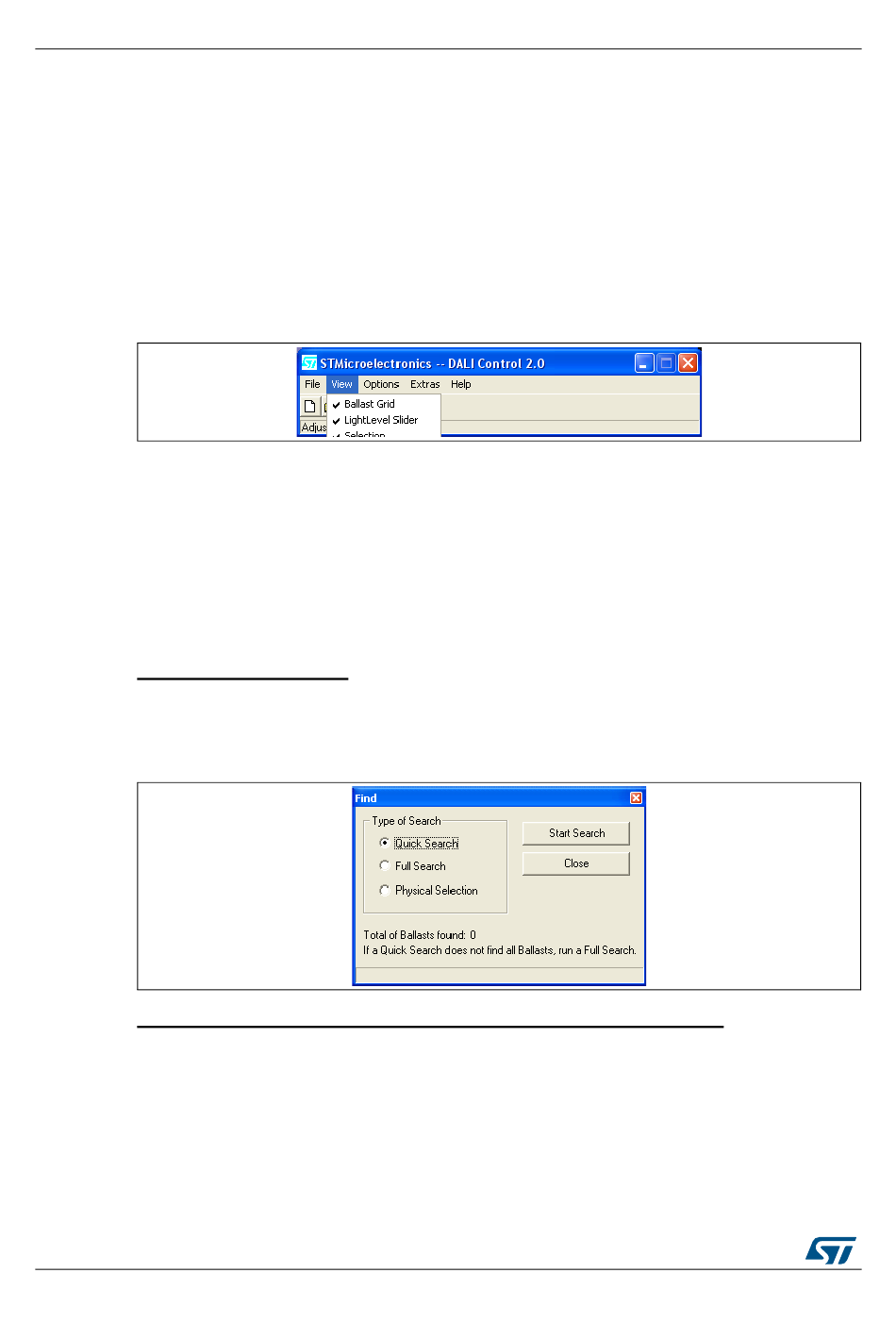

Figure 13. Search for ballast window

Figure 16.
DocID025866 Rev 1

Figure 12. Main window

UM1728
