Application setup
6.
For the master device connect the serial cable (RS-232) to the PC and the ST7 DALI
master board and also connect the 12V adapter to the master board as can be seen in
Figure
7.
The kit is now ready for operation (two LEDs should be ON, one on the STEVAL-
ILM001V and one on the STM32-discovery).
24/31

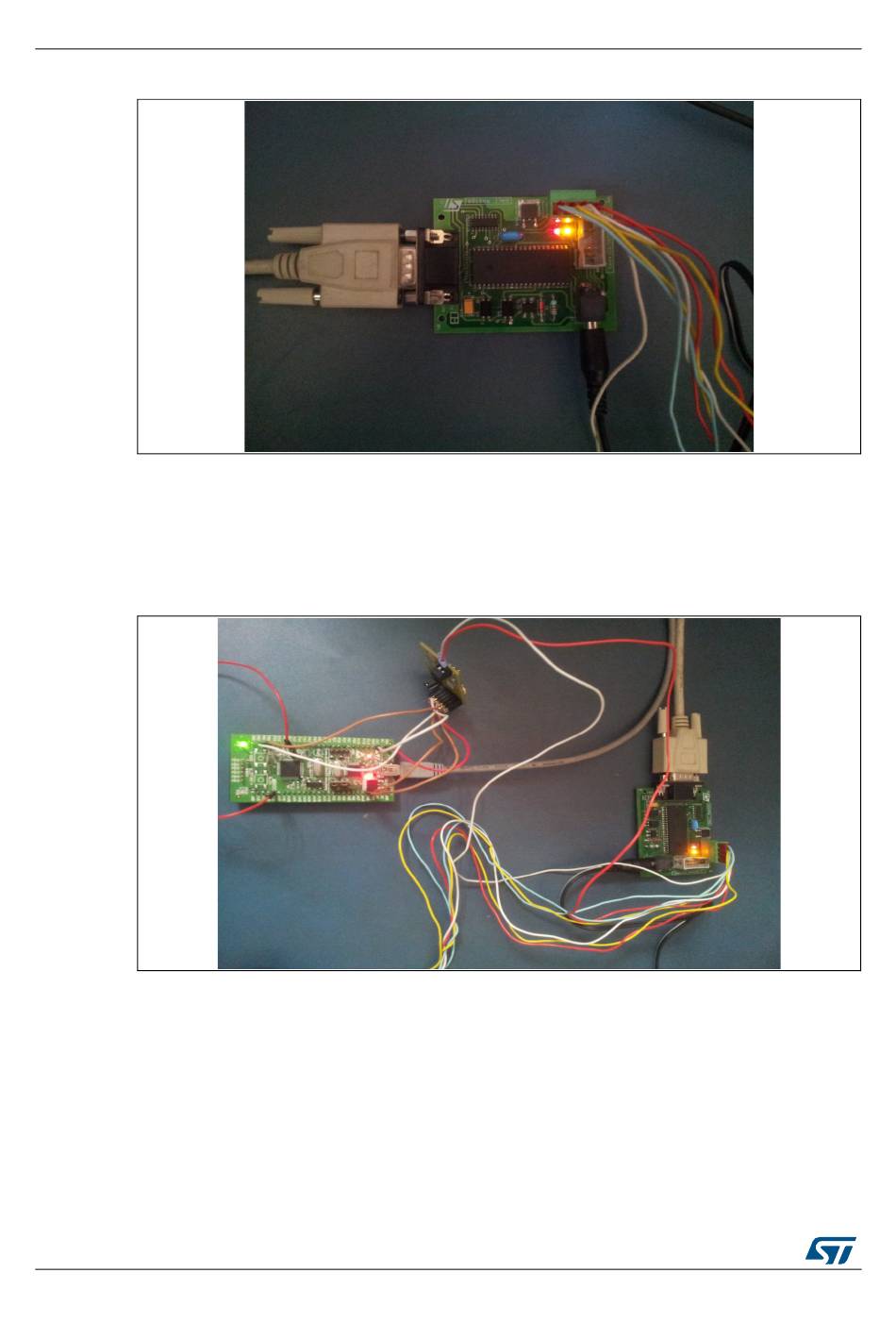

Figure 10. Master device setup (ST7 DALI master board)
10.
Figure 11. Complete DALI setup
DocID025866 Rev 1
UM1728
