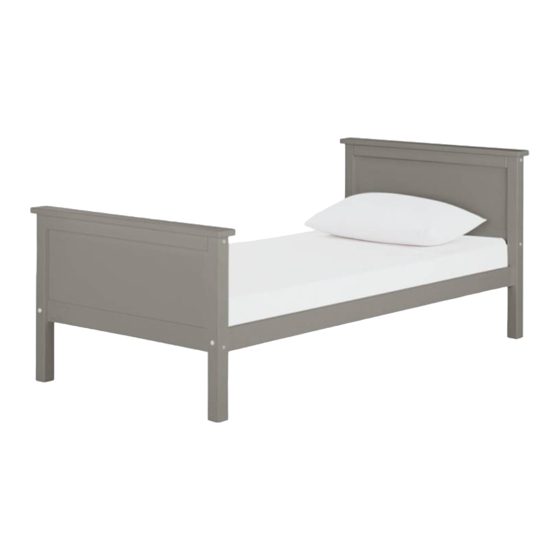

Singlebed - Brooklyn
IMPORTANT! KEEP FOR FUTURE
8529198
REFERENCE
Dimensions
Length - 200,4cm
Depth - 100,2cm
Height - 84,4cm
Weight - 26,6kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 4 - 25/08/22
Advertisement
Related Manuals for Argos Brooklyn 8529198
Summary of Contents for Argos Brooklyn 8529198
- Page 1 Singlebed - Brooklyn IMPORTANT! KEEP FOR FUTURE 8529198 REFERENCE Dimensions Length - 200,4cm Depth - 100,2cm Height - 84,4cm Weight - 26,6kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
-
Page 2: Important! Keep For Future Reference
Safety and Care Advice Safety and Care Advice Important – Please read these instructions fully before starting assembly 80-23101-65 Singlebed IMPORTANT! KEEP FOR FUTURE REFERENCE PLEASE DISPOSE OF PACKAGING MATERIAL. PLASTIC BAGS CAN BE DANGEROUS TO YOUNG CHILDREN WARNI N G! Not suitable for children under 4 years. WARNING! Do not place this child’s bed near heat sources, windows and other furniture. -
Page 3: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2 and 3. -
Page 4: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Leg x1 (82x5,5x5,5cm) Leg x1 Leg x1 (66,7x5,5x5,5cm) (66,7x5,5x5,5cm) No. 12-05506674-65 No. 12-05506673-65 No. 12-05508201-65 Slat x15 Top rail x2 (89,7x6,5x1,47cm) - Page 5 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 3913-06100 No. 3922-06014 No.
- Page 6 Assembly Instructions Step 1 Insert the dowels into the holes in bedsides Ø10 and endrail Ø8 Insert Ø8 dowels into the holes in endrail It may be necessary to tap the dowels in very gently with a small hammer. Step 2 Attach endrails to top rails...
- Page 7 Assembly Instructions Step 4 Attach leg to endrails Insert assembly screws and fasten with the allen key. Don’t overtighten. Step 5 Insert Ø5 dowel into the leg . Attach leg to endrail using the inserted dowels only. Attach endrails fi lling to leg using the inserted dowels only.
- Page 8 Assembly Instructions Step 6 Insert Ø5 dowel into the leg as in the previous step. Attach endrail , at the same time should leg attached to the two endrails using the inserted dowels only. Insert assembly screws and fasten with the allen key.
- Page 9 Assembly Instructions Step 8 Attach the second bedside to the bed by placing the dowels into the holes in legs as in the previous step. Push 2 barrel nuts into the small holes in bedside . Push 1 connecting bolt through legs to meet the barrel nuts and fasten with the allen...
- Page 10 Assembly Instructions Step 10 Position the remaining twelve slats in the bed with an approximate 63-64 mm distance of 63-64 mm mm between each. Fasten each slat with two screws Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 E-mail: order@fl...
