LAYTON DESK GY/WT
61357
1-9
61357

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAYTON 61357 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amart Furniture LAYTON 61357

Summary of Contents for Amart Furniture LAYTON 61357

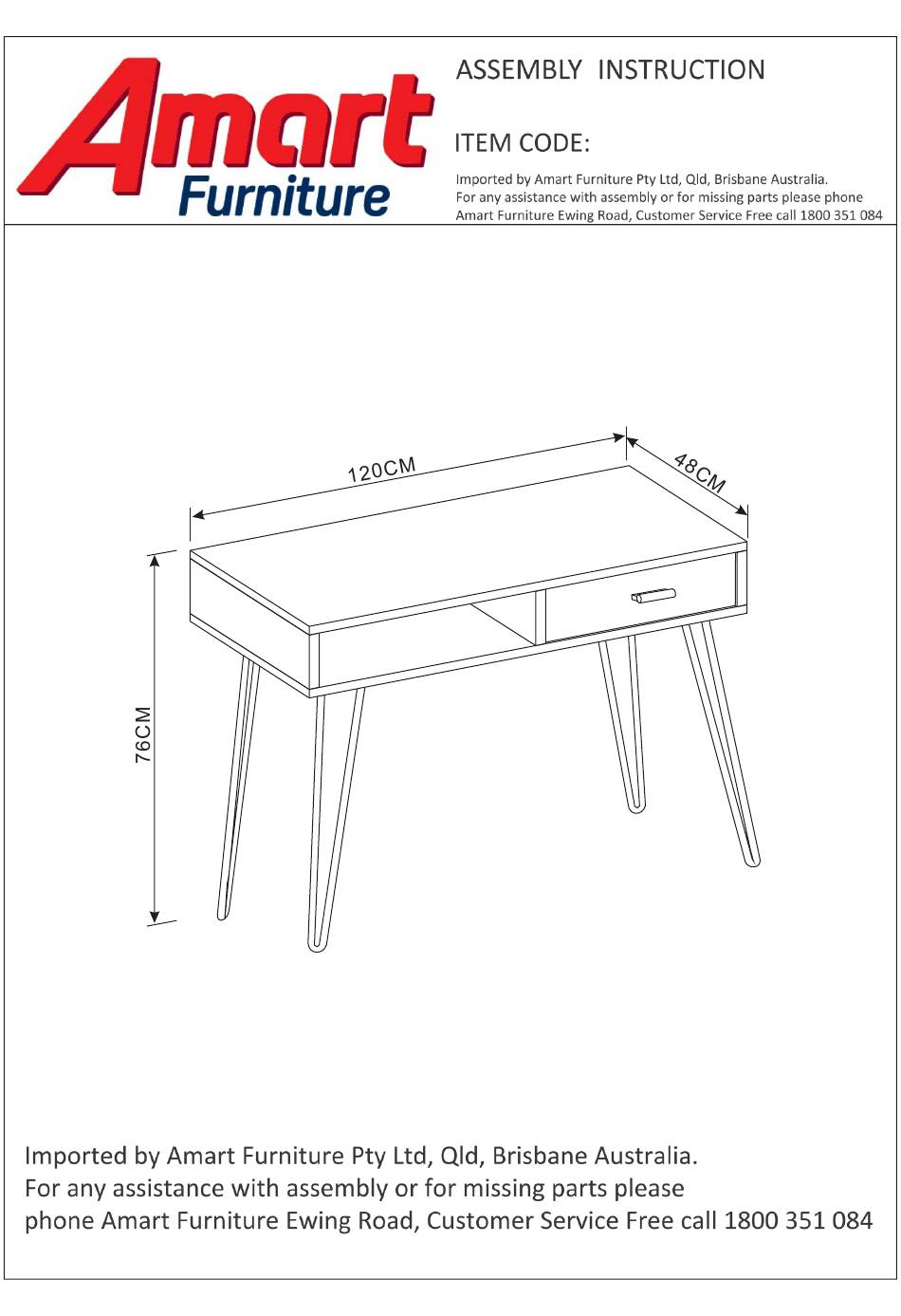

  • Page 1 LAYTON DESK GY/WT 61357 61357...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION BEFORE YOU START: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3 . E n s u r e t h a t y o u h a v e a l l r e q u i r e d c o n t e n t s f o r c o m p l e t e a s s e m b l y 4 .

  • Page 3: Parts List

    PARTS LIST Top Panel Drawer Back Panel Bottom Panel Bottom Drawer Panel Left Side Panel Metal Frame Side Panel Metal Tube Back Panel Front Drawer Panel Drawer Left Panel Drawer Right Panel M6X12mm M6X25mm ST3. 5X14mm Screw 26pcs Bolt Bolt Bolt 20pcs 6pcs...
  • Page 4 STEP 1 Assemble metal tube (12) to bottom panel (2)using bolt (B1) STEP 2 Assemble metal frame (11) to bottom panel (2)using bolt (B2),then insert plastic tack (H) to metal frame (11) . STEP 3 Assemble drawer runner (E1) to side panel (4) using screw (C). 61357...
  • Page 5 STEP 4 Assemble back panel (5) to side panel (4) using bolt (A). STEP 5 Assemble back panel (5),left side panel (3),side panel (4) to bottom panel (2) using bolt (A) and wood dowel (F). metal tube (12) to bottom panel (2)using bolt (B1). STEP 6 Assemble back panel (5),left side panel (3),side panel (4) to top panel (1) using bolt (A) and wood dowel (F).
  • Page 6 STEP 7 Assemble drawer back panel (9) to drawer left panel (7) and drawer right panel (8) using bolt (A). STEP 8 Assemble handle ( G)to front drawer panel ( 6) using bolt (D),then insert bottom drawer panel as instruction showing.Assemble front drawer panel ( 6) to drawer left panel ( 7) and drawer right panel (8) .
  • Page 7 STEP 10 Insert drawer ( 6) then assemble metal ( K) to top panel (1) using screw (C). STEP 11 Assembly is complete. STEP 12 Knock in wall nut (J) on the wall,then connect metal (K) and wall nut (J) using screw ( I) . Fix the desk to the wall.
  • Page 8 SAFETY BRACKETS INSTRUCTIONS Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. Attach the second Mounting Plate to the furniture frame with the Short Screws. Move the furniture to its final position.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE A multi-step finish is applied to all of our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in characterare not defects, but distinctions that make each piece of furniture unique.
