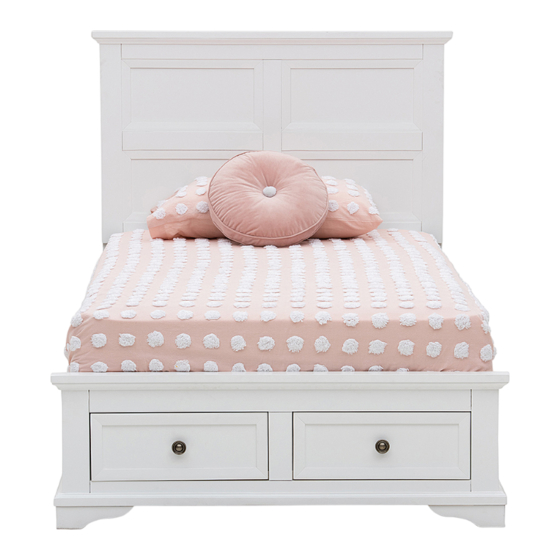

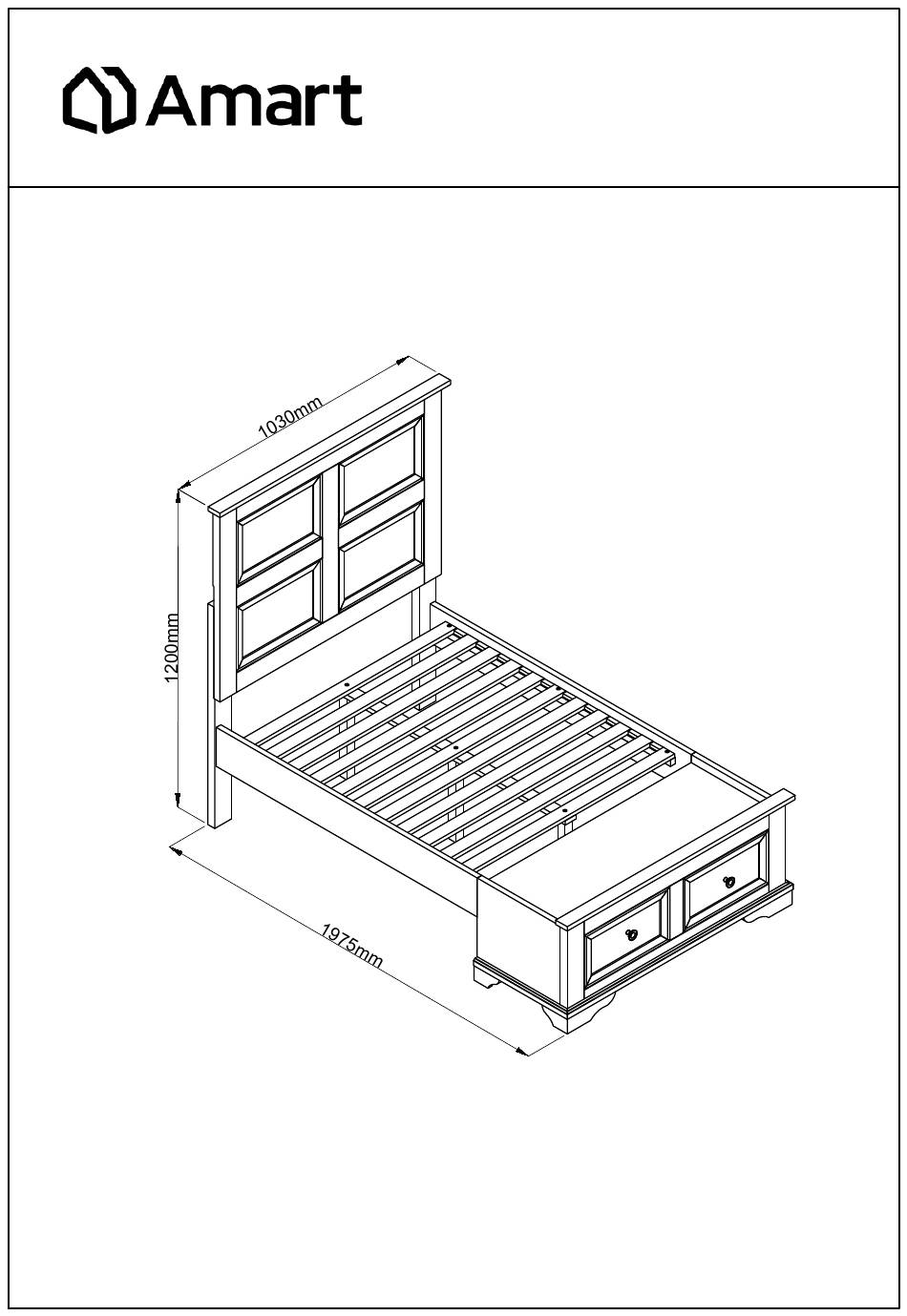

- Page 1 ASSEMBLY INSTRUCTION CHANELLE SINGLE BED ITEM CODE : 64402 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 64402...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 3: Part List
PART LIST HEADBOARD PANEL (X1) 1030x705x50mm 850x70x25mm HEADBOARD LEG RIGHT (X1) 850x70x25mm HEADBOARD LEG LEFT (X1) 1010x507x400mm FOOTBOARD (X1) 1443x130x50mm (X2) SIDE RAILS MIDDLE RAIL 1273x60x20mm (X1) 288x40x40mm SUPPORT LEGS (X3) SLATS 906x60x18mm (X3) MIDDLE SLATS 906x60x18mm (X8) HARDWARE LIST A. - Page 4 With two people carefully lay the Footboard on to a sheet or piece of cardboard. Attach adhesive felt pad onto the legs. With two people carefully stand the Footboard upright. 64402...
- Page 5 STEP 1 Attach the handle Attach handle in front of drawers, Take out handle from drawer, use on the drilling hole position by using screwdriver removing the bolts. screwdriver to tighten bolts up. STEP 2 Tighten the headboard leg 2a, 2b to headboard panel 1 with bolts A, spring washer F and flat washer E. 64402...
- Page 6 STEP 3 Attach side rails 4 to headboard legs 2a, 2b and footboard 3 by interlocking the brackets on the side rail with the bolts C on the headboard/footboard and then push down to lock in place STEP 4 Tighten the slats 7 and middle rail 5 to all support legs 6 with bolts B. Assembly these components out of bed frame.
- Page 7 STEP 5 Use two people to place H frame onto 4. Attach H frame onto 4 using the bolt (A), tighten it up by using an allen key (G). H frame STEP 6 Attach 8 onto 4 using the screws (D), tighten it up by using an screwdriver. 64402...
- Page 8 ASSEMBLY IS COMPLETE 64402...
- Page 9 suitable and sudden...
