Summary of Contents for Amart Furniture 61350

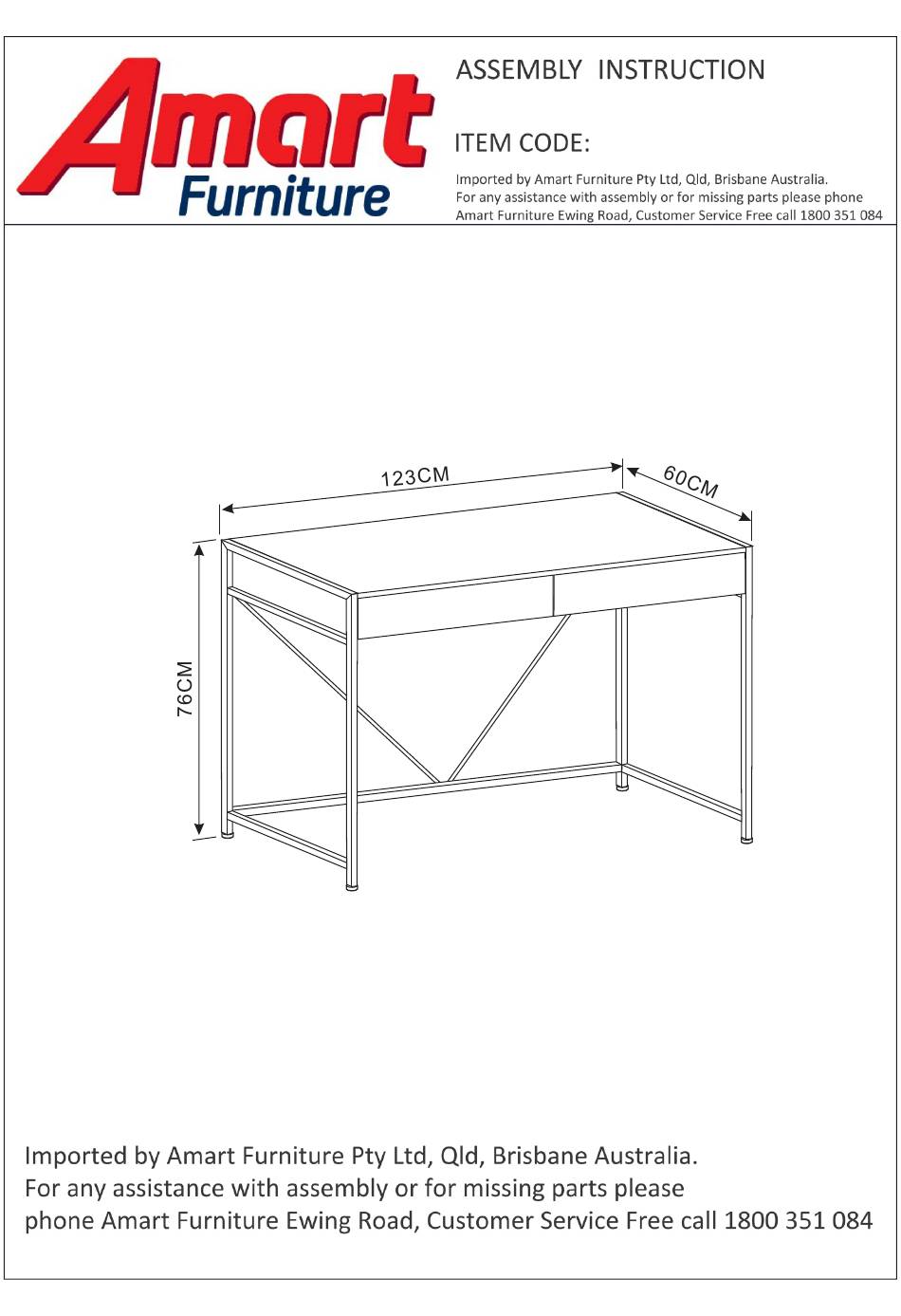

- Page 1 PARK CITY DESK BRW 61350 1-10 61350...
-
Page 2: Pre-Assembly Preparation
5 . K e e p a l l h a r d w a r e p a r t s a n d p a c k a g i n g o u t o f r e a c h o f s m a l l c h i l d r e n . 6. Do not over tighten the screws and bolts as this may damage the threads PEOPLE REQUIRED ALLOW 20 MINUTES ADDITIONAL TOOLS REQUIRED 2-10 61350... -
Page 3: Parts List
Drawer Left Panel M6X12mm ST3.5X12mm M6X25mm Screw Bolt 3pcs Bolt Bolt 19pcs 24pcs 6pcs ST5X60mm ST5X50mm 8X30mm 4pcs Screw 4pcs 18pcs Screw Wood Dowel Drawer slideway 6pcs ST4X25mm 4pcs 2pcs Metal Fixed Feet Screw Wall Nut 2pcs 2pcs 3-10 61350... - Page 4 Assemble fixed feet (G) to metal frame (12). STEP 2 Assemble metal tube (13)&(14) to metal frame (12) using bolt (B1). STEP 3 Assemble metal tube (15) to metal frame (12) and metal tube (14) using bolt (B1). 4-10 61350...
- Page 5 Assemble Drawer slideway ( E1) to left side panel ( 2) and right side panel (3) using screw (C) . STEP 6 Assemble top panel (1) to back panel (5),left side panel ( 2) ,right side panel ( 3) and middle panel (4) using bolt ( A) and wood dowel (F). 5-10 61350...
- Page 6 Assemble drawer back panel ( 10) to drawer left panel ( 8) and drawer right panel (9) using screw ( D1),then insert drawer bottom panel ( 11).Assemble left front drawer panel (6) and right front drawer panel (7) to drawer left panel (8) and drawer right panel (9) using bolt (A). 6-10 61350...
- Page 7 STEP 10 Assemble drawer slideway (E2) to drawer left panel ( 8) and drawer right panel using screw ( C). STEP 11 Insert drawer (6) and (7). STEP 12 Assembly is complete. 7-10 61350...
- Page 8 STEP 13 Knock in wall nut (I) on the wall,then connect metal (J) and wall nut ( I) using screw (H). Fix the desk to the wall. 8-10 61350...
- Page 9 Plates and tighten until snug. Do not over tighten. Make sure that the Mounting Plates are firmly attached to the wall and furniture and that the Wall Strap is snug. HARDWARE Metal x 1 Screw x 1 Wall Nut x 1 Wall Back Side 9-10 61350...
-
Page 10: Care And Maintenance
Do not allow plastic to come in direct contact with your furniture. Chemicals in the plastic of placemats etc. may soften and mark the finish if left in contact with the furniture for a period of time. 10-10 61350...
