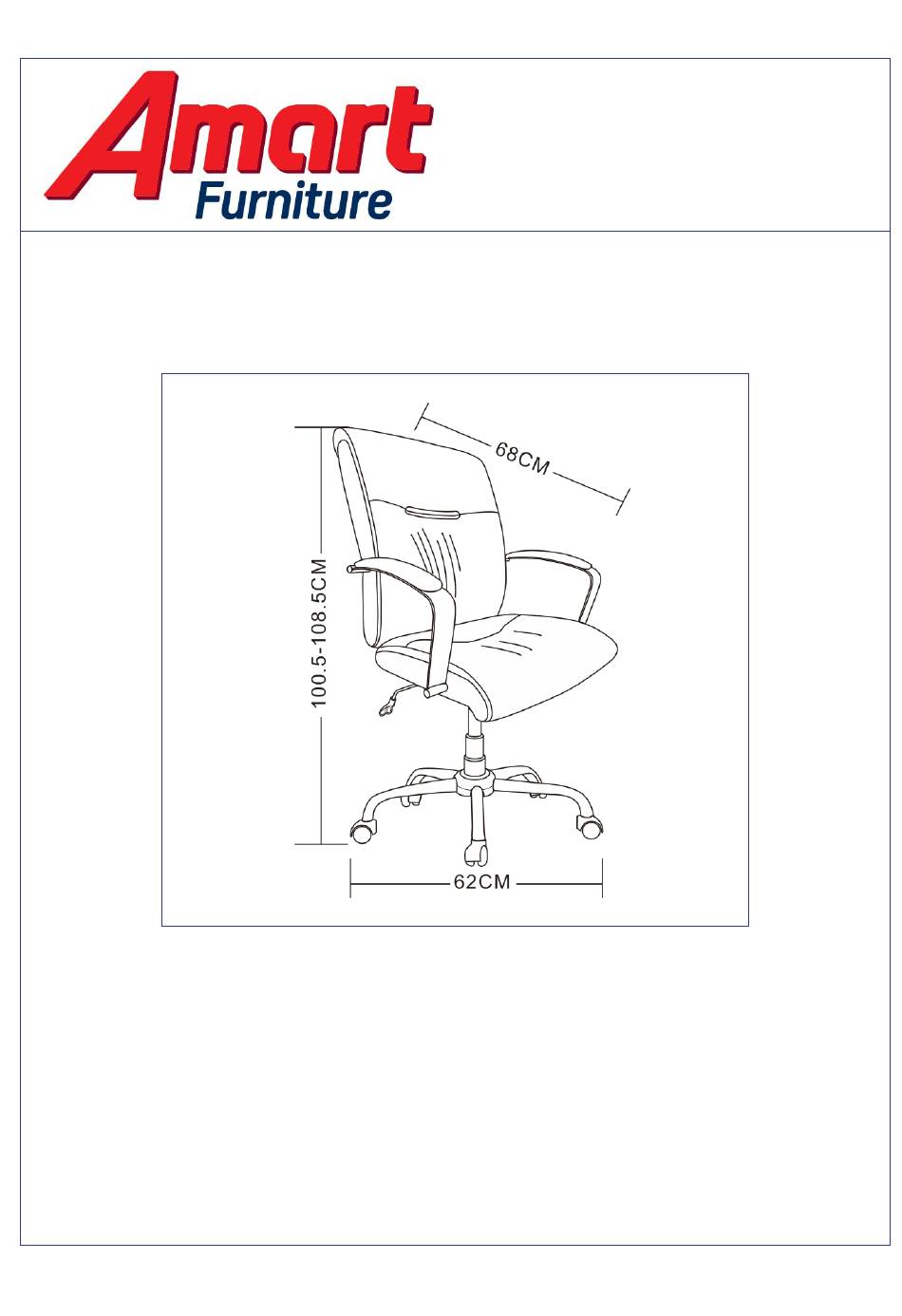

ASSEMBLY INSTRUCTION

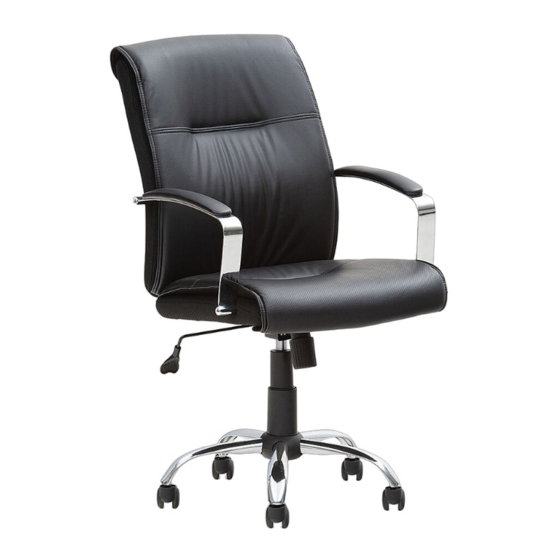

Albion Office Chair
ITEM CODE:62891
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture Ewing Road, Customer Service Free call 1800 351 084
1-8
62891
Advertisement
Related Manuals for Amart Furniture Albion 62891
Summary of Contents for Amart Furniture Albion 62891
- Page 1 Amart Furniture Ewing Road, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Ewing Road, Customer Service Free call 1800 351 084 62891...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. Take care when lifting.Product should be assembled as near as possible to the point of use. Ensure that you have all required contents for complete assembly. Always read the assembly instructions carefully before beginning assembly . -
Page 3: Parts List
PARTS LIST BACK ARMREST (L)&(R) SEAT MECHANISM GAS LIFT GAS LIFT COVER BASE CASTOR rubber plug bolt bolt bolt Φ15mm 4XPCS M6x25mm 4xPCS M8x55mm 4xPCS M6x18mm 4xPCS Allen key 62891... - Page 4 STEP 1: STEP 1: Insert castor 8 to base 7 . STEP 2: Put gas lift 5 into base 7 as instruction shown, then put gas lift cover 6 on gas lift 5 .Remove gas lift cover before assembly. 62891...
- Page 5 STEP 3: Attach mechanism 4 to seat 3 using bolt A. Fasten by allen key. STEP 4: Turn back the seat 3 attach back 7 to seat 3 using bolt B. Fasten by allen key. 62891...
- Page 6 STEP 5: As shown, attach armrests 2 to back 1 and seat 3 using bolt C. Fasten by allen key. STEP 6: Lift back 1 As shown, insert rubber plug D into armrest 2 62891...
- Page 7 STEP 7: As shown, put the assembly chair body into gas lift 5 . STEP 8: As shown, put the assembly chair body into gas lift 5 . 62891...
- Page 8 STEP 9: Assembly is complete. CARE AND MAINTENANCE OFFICE CHAIR DO NOT REMOVE THIS LABEL DO NOT STAND ON THIS CHAIR-DO NOT USE THIS CHAIR AS STEP LADDER. USE THIS PRODUCT ONLY FOR SEATING ONE PERSON AT A TIME. DO NOT USE THIS CHAIR UNLESS ALL BOLTS, SCREWS AND KNOBS ARE FIRMLY SECURED.
