Fluke SimpliFiber 850 Instruction Sheet

Fluke SimpliFiber 850 Instruction Sheet

Optical power source

Advertisement

The SimpliFiber optical power source provides optical power for testing
fiber optic cables. You can use the source with any loss test set.
This instruction sheet covers the following models:
The SimpliFiber 850/1300 Source, which provides 850 nm and
1300 nm optical power for testing multimode fiber.
The SimpliFiber 1310 Source, which provides 1310 nm optical
power for testing singlemode fiber.
The SimpliFiber 1550 Source, which provides 1550 nm optical
power for testing singlemode fiber.
A SimpliFiber source comes with the following:
Holster with connector cover
Dust cap(s)
2 AA batteries (installed)
Instruction sheet
Warranty registration card
Registration
Registering your product with Fluke Networks gives you access to
valuable information on product updates, troubleshooting tips, and
other support services. To register, fill out and return the postage-paid
card provided, or fill out the online registration
Networks website at www.flukenetworks.com/registration.
PN 2031600 September 2002
© 2002 Fluke Networks, Inc. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.
Optical Power Source
SimpliFiber
Instruction Sheet
form on the Fluke
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SimpliFiber 850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fluke SimpliFiber 850

  • Page 1 Fluke Networks website at www.flukenetworks.com/registration. PN 2031600 September 2002 © 2002 Fluke Networks, Inc. All rights reserved. Printed in USA. All product names are trademarks of their respective companies.
  • Page 2: Contacting Fluke Networks

    Visit the Fluke Networks website at www.flukenetworks.com. Send email to support@flukenetworks.com. For operating assistance in the USA, call 1-800-283-5853. To order accessories or get the location of the nearest Fluke Networks distributor or service center, call: • USA: 1-888-99-FLUKE (1-888-993-5853) •...

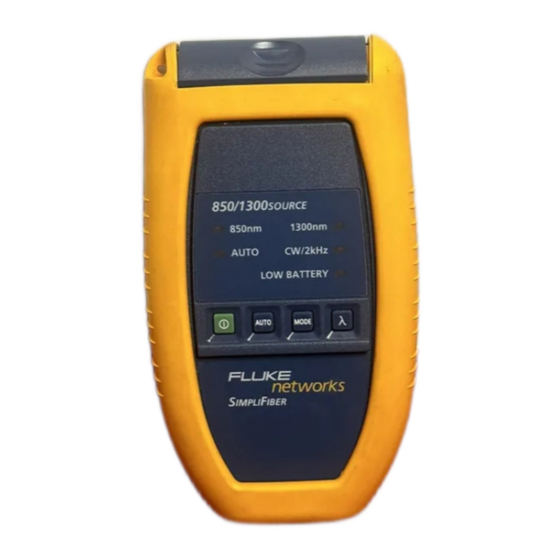

  • Page 3 850/1300 Source Features alq01.eps Warning Read “Precautions and Safety Information” before using the source. 850 nm port with SC or ST connector. The LED lights when the port is active. 1300 nm port with SC or ST connector. The LED lights when the port is active.
  • Page 4 1310 and 1550 Source Features alq02.eps Warning: Class 1 Laser Product Read “Precautions and Safety Information” before using the source. 1310 nm or 1550 nm port with SC or ST connector. The LED lights when the port is active. The LED lights when the output is in continuous wave (CW) mode or blinks when the output is modulated at 2 kHz.
  • Page 5: Maintenance

    2 AA alkaline batteries. To access the batteries, remove the battery compartment cover on the back of the source. Replacement Parts The following replacement parts for the SimpliFiber source are available from Fluke Networks. Visit the Fluke Networks website for a complete list of fiber test accessories. Fluke Networks Description...
  • Page 6 Weight (in holster) LIMITED WARRANTY & LIMITATION OF LIABILITY Fluke Networks products will be free from defects in material and workmanship for one year from the date of purchase. Parts, accessories, product repairs, and services are warranted for 90 days. This warranty does not cover disposable batteries, cable...
