１-４. USB2Dynamixel Conne

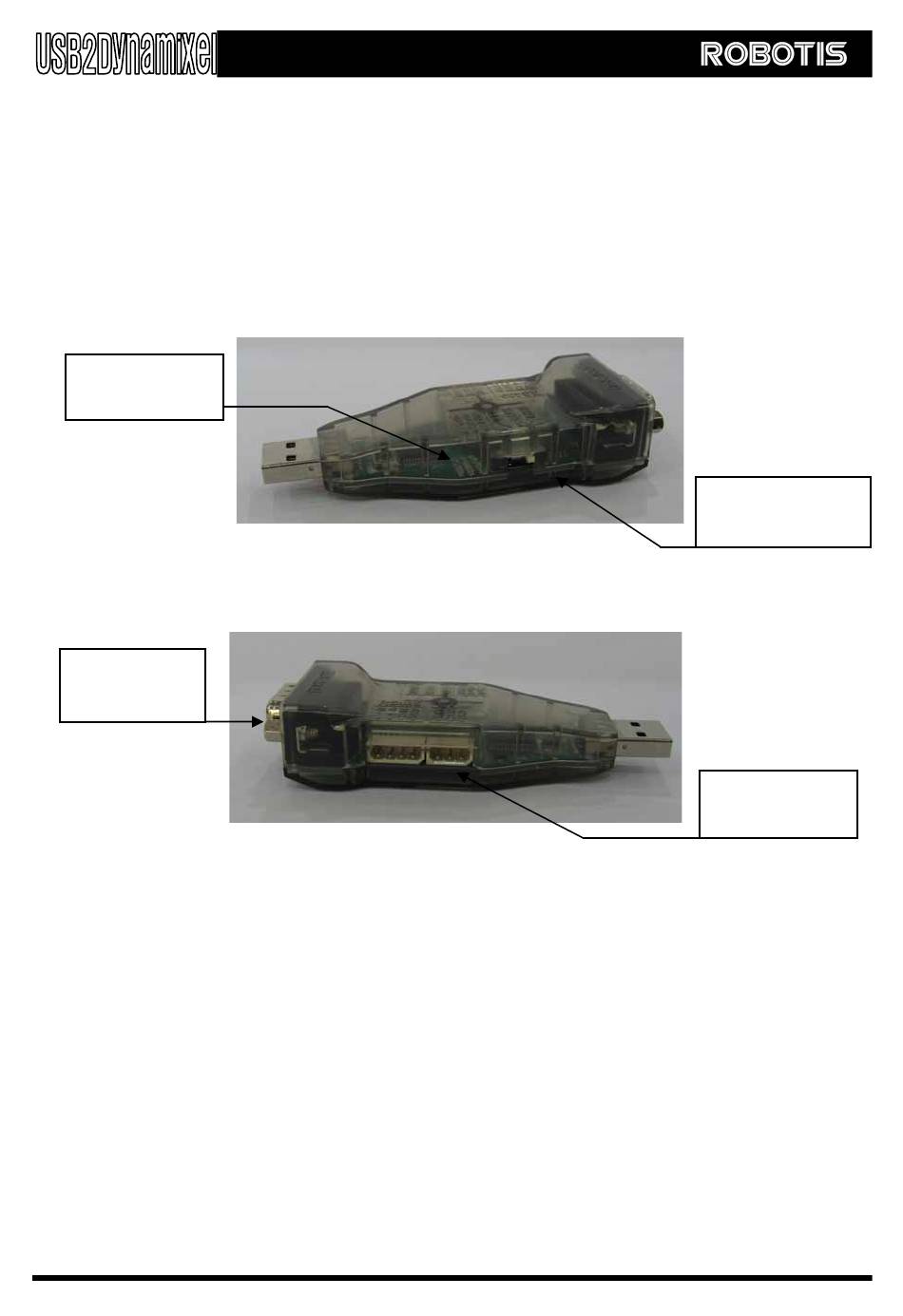

１ -４-１ . U SB2Dynamixel Components
Status display
LED
Serial
connector
Status display LED
Function select switch
3P connector
4P connector
Serial connector
User's Manual
: Displays power status, TxD(data write), and RxD(data read).
: Allows the selection of TTL, RX-485, or RX-232
: Connects to the AX series Dynamixel via TTL.
: Connects to the DX, RX series Dynamixel via RX-485.
: Converts a USB port to a serial port via RX-232.
ction
5
Function select
switch
3P / 4P
connector
