Ropox Support 40-44010 User Manual

Washbasin
Hide thumbs Also See for Support 40-44010:
Table of Contents

Advertisement

Quick Links

Download this manual

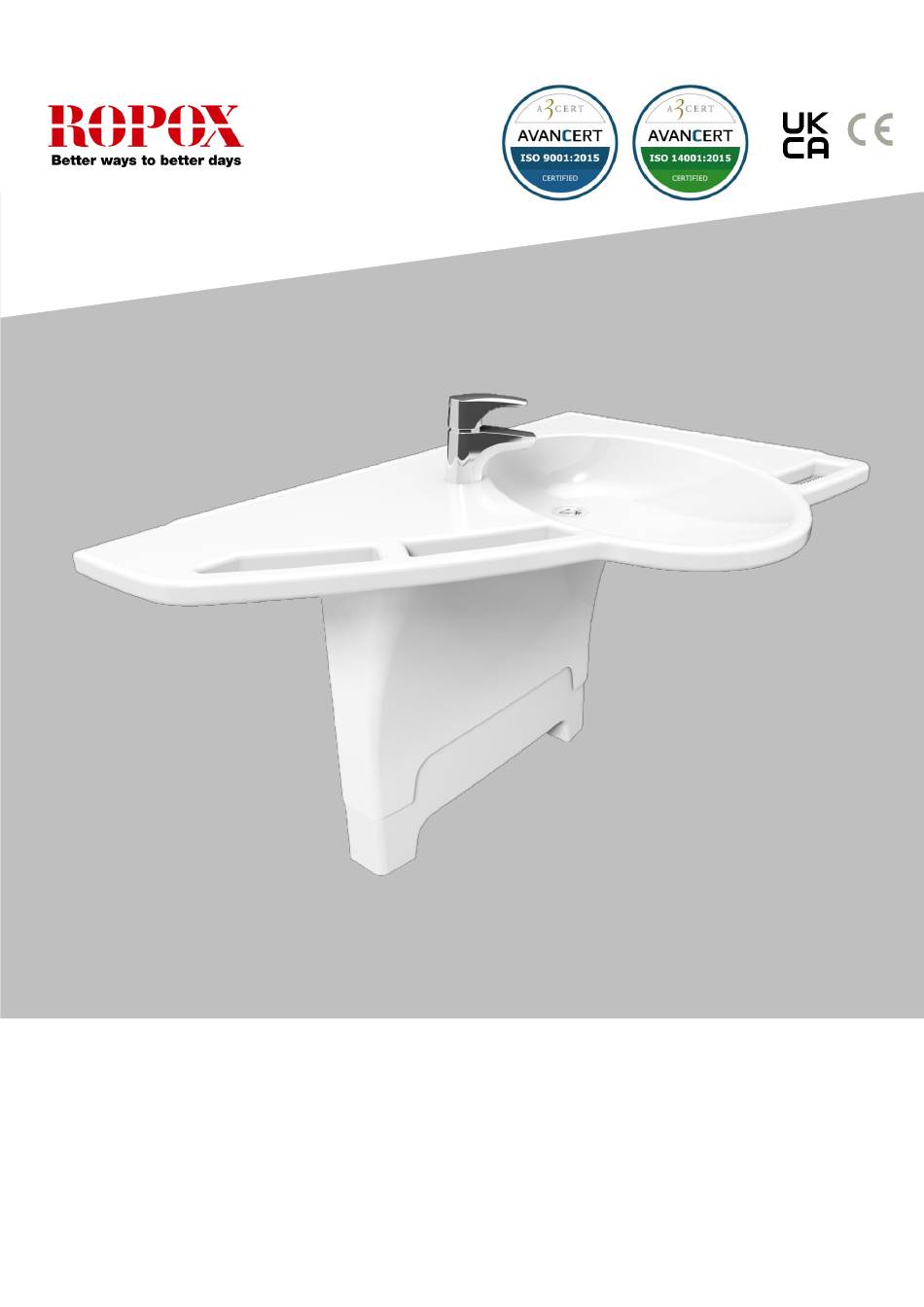

Ropox Support Washbasin
Fixed – Basic - Manual
USER MANUAL
MOUNTING INSTRUCTIONS
Keep this manual with the product at all times
PA 2004 00634
TF 200.01.0047_eng / Dato 29-08-2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Support 40-44010 and is the answer not in the manual?

Questions and answers

Related Manuals for Ropox Support 40-44010

Summary of Contents for Ropox Support 40-44010

  • Page 1 Ropox Support Washbasin Fixed – Basic - Manual USER MANUAL MOUNTING INSTRUCTIONS Keep this manual with the product at all times PA 2004 00634 TF 200.01.0047_eng / Dato 29-08-2022...

  • Page 2: Table Of Contents

    Table of Contents SYMBOLS USED IN THIS MANUAL ....................3 GENERAL SAFETY .......................... 3 2.1 P ........................... 5 RODUCT NIT LABEL GENERAL REQUIREMENTS ......................6 3.1 P ........................6 RODUCT INFORMATION 3.2 P ......................... 6 RODUCT DESCRIPTION 3.3 I ............................6 NTENDED USE 3.4 I ..........................

  • Page 3: Symbols Used In This Manual

    1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product.
  • Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.

  • Page 5: Product Unit Label

    2.1 Product Unit label Ropox Support washbasin, Manual, L Mixer tap left side. Integrated handles This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its...

  • Page 6: General Requirements

    Mixer tap 3.2 Product description The Ropox Support Washbasin is a disability-friendly and stable washbasin, which is adjustable in height, based on the needs of the individual. The washbasin is specifically designed for use by people with difficulty walking. It has integrated grab rails, to prevent fall injury.

  • Page 7: Intended Operator

    3.4 Intended operator Reading and understanding this manual will be sufficient training for an intended operator. Children under the age of 16 or patient are not considered intended operator. 3.5 Essential performance The product does not have essential performance, as the patient and user do not experience any risk in case of loss of product function/performance.
  • Page 8 Manual height adjustment 40-44004/05 (Mixertap is accessory) 633mm 1000mm 580mm 657mm Accessories – covers 273mm 40-44021/22 550-850mm 90mm 653mm 125mm TF 200.01.0047_eng...

  • Page 9: Operation

    3.9 Operation Basic height adjustment (applying to 40-44012/13) The height of the washbasin may be adjusted by loosening the two handles. Note that the washbasin must be supported while loosening the handles in order to prevent it from falling to the bottom position. Covers, if any, must be removed before adjustment of these models.

  • Page 10: Mounting Instructions

    4. Mounting instructions 4.1 Installation interfaces Fixed (40-44010 and 40-44011) Construction The wall must be made of a material suited for screw mounting and approved for damp rooms. The hatched area is the minimum area for reinforcement of the wall. Reinforcement from floor to ceiling is advisable.
  • Page 11 Basic (40-44012 and 40-44013) Construction The wall must be made of a material suited for screw mounting and approved for damp rooms. The hatched area is the minimum area for reinforcement of the wall. Reinforcement from floor to ceiling is advisable.
  • Page 12 Manual (40-44014 and 40-44015) Construction The wall must be made of a material suited for screw mounting and approved for damp rooms. The hatched area is the minimum area for reinforcement of the wall. Reinforcement from floor to ceiling is advisable.

  • Page 13: Connection Adapters

    4.2 Connection adapters The highlighted components can be bought separately depending on the type of building installation requirements. Water supply Installation in room Hoses from basin Adapters (not included) No adapter necessary 1/2" Thread 1/2” 1/2" -> 3/8" 3/8" Item no. 97001670 Thread 1/2"...

  • Page 14: List Of Components

    1 (one) 40*44010-062: Fixed wall bracket, short 1 (one) 40*44010-048: Frame Basic side bracket 1 (one) Ropox Support Washbasin, Basic height adjustment, left, 40-44012 40*44010-064: Top plate with washbasin, left-oriented 1 (one) Basic height-adjustment brackets 1 (one) set Incl. 40*44010-025...
  • Page 15 Ropox Support Washbasin, Manual height adjustment, left, 40-44014 40*44010-064: Top plate with washbasin, left oriented 1 (one) Provided with: Top frame, left oriented 1 (one) Incl. 40*44010-042 Frame Manual support, left 40*44010-057 Hand crank assembly left 30-67600: Flexi legs, Manual 2 (two) sets Incl.

  • Page 16: Installation Of Product

    4.4 Installation of product 4.4.1 Support Washbasin, Fixed (40-44010/11) Recommended: 6 x M8x72 6 x rawlplugs NOTE: Depending on wall type, choose other suitable screws, as required. Max load on upper screws: 150 kg/screw TF 200.01.0047_eng...

  • Page 17: Support Washbasin With Basic Frame (40-4012/13)

    4.4.2 Support Washbasin with Basic frame (40-4012/13) 2 x M5 2 x M5x10 12 x M4x16 TF 200.01.0047_eng...
  • Page 18 Recommended: 6 x M8x72 6 x rawlplugs NOTE: Depending on wall type, choose other suitable screws, as required. Max. load on upper screws: 85 kg/screw 510,5 Fine adjustment of wall fitting – use legs on washbasin as a guide TF 200.01.0047_eng...
  • Page 19 Plumbing kit is accessory TF 200.01.0047_eng...
  • Page 20 Mixer tap is accessory TF 200.01.0047_eng...
  • Page 21 TF 200.01.0047_eng...

  • Page 22: Mounting Of Covers For 40-44012/13 (Accessories)

    4.4.3 Mounting of covers for 40-44012/13 (accessories) 2 x 4.5x50 2 x rawlplugs TF 200.01.0047_eng...
  • Page 23 2 x M4x10 6 x M4x16 TF 200.01.0047_eng...
  • Page 24 TF 200.01.0047_eng...
  • Page 25 3 x M4x10 TF 200.01.0047_eng...

  • Page 26: Support Washbasin With Manual Frame (40-44014/15)

    4.4.4 Support Washbasin with Manual frame (40-44014/15) 4 x M8x20 TF 200.01.0047_eng...
  • Page 27 TF 200.01.0047_eng...
  • Page 28 1 x M4 Allen wrench 2mm TF 200.01.0047_eng...
  • Page 29 1 x M8x20 TF 200.01.0047_eng...
  • Page 30 Recommended: 6 x M8x72 6 x rawlplugs NOTE: Depending wall type, choose other suitable screws, as required. Max. load on upper screws: 71 kg/screw TF 200.01.0047_eng...
  • Page 31 Tip: Move washbasin to top position to facilitate further mounting TF 200.01.0047_eng...
  • Page 32 1 x M5x50 Plumbing kit is accessory Mixer tap is accessory TF 200.01.0047_eng...
  • Page 33 TF 200.01.0047_eng...

  • Page 34: Mounting Of Covers For 40-44014/15

    4.4.5 Mounting of covers for 40-44014/15 1 x strips 2 x M8x72 2 x M4x10 TF 200.01.0047_eng...
  • Page 35 6 x M4x16 TF 200.01.0047_eng...
  • Page 36 TF 200.01.0047_eng...
  • Page 37 3 x M4x10 TF 200.01.0047_eng...

  • Page 38: Performance Test

    ➢ Ropox Support Washbasin must only be adjusted in height by persons who have read and understood these instructions. ➢ Some models of Ropox Support Washbasin are height-adjustable and must not be used as a lifting table or person lifter.

  • Page 39: Service And Maintenance

    7. Service and maintenance 7.1 Cleaning Wipe Ropox Support Washbasin with a wrung cloth with lukewarm water and a mild detergent. Do not use enchants, abrasives or grinding cloths, brushes and sponges. 7.2 Cleaning of washbasin Ropox Support Washbasin is made of a composite material of marble and plastic granulate with a gel coat surface.

  • Page 40: Service Schedule

    7.4 Service schedule Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Comments: Comments: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Comments: Comments: 8. Fault finding The frame seems loose or unstable ➢...

  • Page 41: List Of Spare Parts

    Item No. 20-60320-548 Applies to 40-44014/15 only Caution! Only use original Ropox spare parts as replacement parts. If other parts are used, the warranty may be void. 10. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals.
