Related Manuals for Ropox SUPPORT
Summary of Contents for Ropox SUPPORT

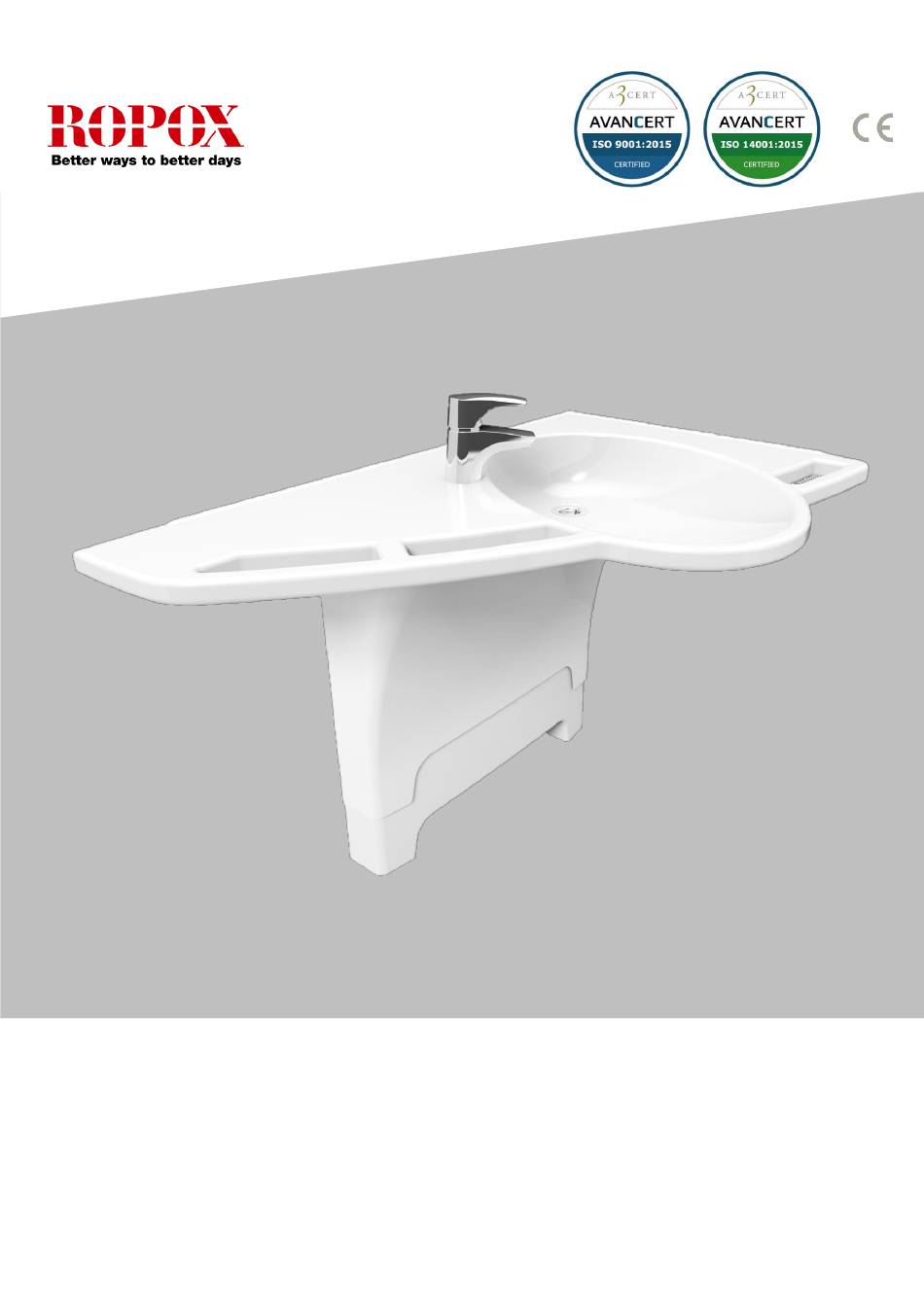

- Page 1 Ropox Support Washbasin Complete Fixed – Basic - Manual USER MANUAL MOUNTING INSTRUCTIONS Keep this manual with the product at all times PA 2004 00634 PDF 6184 / Rev 001...
-
Page 2: Table Of Contents
Connection adapters ..........................11 MOUNTING INSTRUCTIONS ......................... 12 Support Washbasin, Fixed (40-44000/01) ....................12 Support Washbasin with Basic frame (40-4002/03) ................... 13 Mounting of covers for 40-44002/03 ......................17 Support Washbasin with Manual frame (40-44004/05) ................21 Mounting of covers for 40-44004/05 ......................29 LIST OF COMPONENTS .......................... -
Page 3: Introduction
Application Ropox Support Washbasin Basic and Manual may be adjusted in height for optimum working height for user and carer. Ropox Support Washbasin must NOT be used as a lifting table or person lifter. The product is designed for indoor use under normal room temperature and humidity as specified in Section 4. -
Page 4: Operation
Covers, if any, must be removed before adjustment of these models. Manual height adjustment (applying to 40-44004/05): The height of the washbasin may be easily adjusted by means of the detachable hand crank. © ROPOX 2017 Page 4... -
Page 5: Technical Data
Tested in accordance with DS/ISO 17966:2016, max user weight is 400kg/881lb Temperature: 10-40° C Air humidity: 5-85 % (non-condensing) Complaint: See Complaint page 43 Manufacturer: Ropox A/S, DK-4700 Næstved, Phone: +45 55 75 05 00 e-mail: info@ropox.dk, www.ropox.dk © ROPOX 2017 Page 5... -
Page 6: Dimension Sketches
Dimension sketches Fixed 40-44000/01 633mm 1000mm 166mm Basic height adjustment 40-44002/03 633mm 1000mm 518mm 577mm © ROPOX 2017 Page 6... - Page 7 Manual height adjustment 40-44004/05 633mm 1000mm 580mm 657mm Accessories – covers 40-44021/22 273mm 550-850mm 90mm 653mm 125mm © ROPOX 2017 Page 7...
-
Page 8: Installation Interfaces
If a location of the water supply and drain different from the recommended positioning is required or if there is a floor drain, the Support Washbasin will have no covers. For purchase of adapters for connection to various standard installations, see ”Connection Adapters –... - Page 9 If a location of water supply and drain different from the recommended positioning is required or if there is a floor drain, the Support Washbasin will have no covers. For purchase of adapters for connection to various standard installations, see ”Connection Adapters –...
- Page 10 If a location of water supply and drain different from the recommended positioning is required and if there is a floor drain, the Support Washbasin will have no covers. For purchase of adapters for connection to various standard installations, see ”Connection Adapters –...
-
Page 11: Connection Adapters
Ø32 -> Ø50 Item no. 97001661 Drain pipe extensions Drain pipe from basin Coupling piece Extra drain pipe Ø32 Flex hose, 27-62cm Item no. 97001162 Ø32 Ø32-Ø32 Ø32 Flex hose, 40-110cm Item no. 97001662 Item no. 97001161 © ROPOX 2017 Page 11... -
Page 12: Mounting Instructions
Mounting instructions Support Washbasin, Fixed (40-44000/01) Recommended: 6 x 8x72 6 x rawlplugs NOTE: Depending on wall type, choose other suitable screws, as required. Max load on upper screws: 150 kg/screw Mounting of covers: See page 17-20 © ROPOX 2017... -
Page 13: Support Washbasin With Basic Frame (40-4002/03)
Support Washbasin with Basic frame (40-4002/03) 2 x M5 2 x M5x10 12 x 4x16 © ROPOX 2017 Page 13... - Page 14 6 x rawlplugs NOTE: Depending on wall type, choose other suitable screws, as required. Max. load on upper screws: 85 kg/screw 510,5 Fine adjustment of wall fitting – use legs on washbasin as a guide © ROPOX 2017 Page 14...
- Page 15 © ROPOX 2017 Page 15...
- Page 16 © ROPOX 2017 Page 16...
-
Page 17: Mounting Of Covers For 40-44002/03
Mounting of covers for 40-44002/03 2 x 4.5x50 2 x rawlplugs © ROPOX 2017 Page 17... - Page 18 2 x M4x10 6 x 4x16 © ROPOX 2017 Page 18...
- Page 19 © ROPOX 2017 Page 19...
- Page 20 3 x M4x10 © ROPOX 2017 Page 20...
-
Page 21: Support Washbasin With Manual Frame (40-44004/05)
Support Washbasin with Manual frame (40-44004/05) 4 x M8x20 © ROPOX 2017 Page 21... - Page 22 © ROPOX 2017 Page 22...
- Page 23 1 x M4 Allen wrench 2mm © ROPOX 2017 Page 23...
- Page 24 1 x M8x20 © ROPOX 2017 Page 24...
- Page 25 Recommended: 6 x 8x72 6 x rawlplugs NOTE: Depending wall type, choose other suitable screws, as required. Max. load on upper screws: 71 kg/screw © ROPOX 2017 Page 25...
- Page 26 Tip: Move washbasin to top position to facilitate further mounting © ROPOX 2017 Page 26...
- Page 27 1 x M5x50 © ROPOX 2017 Page 27...
- Page 28 © ROPOX 2017 Page 28...
-
Page 29: Mounting Of Covers For 40-44004/05
Mounting of covers for 40-44004/05 1 x strips 2 x 8x72 2 x M4x10 © ROPOX 2017 Page 29... - Page 30 6 x 4x16 © ROPOX 2017 Page 30...
- Page 31 © ROPOX 2017 Page 31...
- Page 32 3 x M4x10 © ROPOX 2017 Page 32...
-
Page 33: List Of Components
Fixed wall bracket, short 1 (one) 40*44010-048: Frame Basic side bracket 1 (one) 40-44022: Cover 1 (one) set Ropox Support Washbasin, Basic height adjustment, left, 40-44002: 40*44010-064: Top plate with washbasin, left-oriented 1 (one) Basic height-adjustment brackets 1 (one) set Incl. 40*44010-025... - Page 34 Ropox Support Washbasin, Basic height adjustment, right, 40-44003: 40*44010-070: Top plate with washbasin, right-oriented 1 (one) Basic height-adjustment brackets 1 (one) Incl. 40*44010-025 Long bracket 40*44010-026 Short bracket 40*44010-020 Inside legs 97800-022 Threaded plate 97001631 Adjustable handles 40*44010-048 Frame Basic side bracket...
- Page 35 Ropox Support Washbasin, Manual height adjustment, right, 40-44015: 40*44010-070: Top plate with washbasin, right-oriented 1 (one) Provided with: Top frame, right-oriented 1 (one) Incl. 40*44010-077 Frame Manual support, right 40*44010-082 Hand crank assembly, right 30-67600: Flexi legs, Manual 2 (two) sets...
- Page 36 Flexible drain hose ø32/32 pipe stub 1 (one) 97001035 ø32x88.5° angle 1 (one) Connecting hose, ½” x ½”, 100 cm: 97001120 2 (two) 40*44010-098 Drain relief 1 (one) 40-44040 Mixer tap, Oras Saga 1 (one) © ROPOX 2017 Page 36...
-
Page 37: Performance Test
Performance test After completed installation and before use, all functions of the Ropox Support Washbasin must be tested. After that, a performance test must be carried out at least once a year by competent personnel. Check that the mounting instructions have been observed. -
Page 38: Service And Maintenance
During use, the product may get dirty. It is very important to clean the product as described in these instructions. Wipe Ropox Support Washbasin with a wrung cloth with lukewarm water and a mild detergent. Do not use enchants, abrasives or grinding cloths, brushes and sponges. -
Page 39: Service Schedule
1. Check the siphon for clogging and clean it, if required. 2. Check that the flexible hose on the wall has not been positioned so high that it acts as an extra siphon. Cf. recommendation, Section 6. © ROPOX 2017 Page 39... -
Page 40: List Of Spare Parts
List of spare parts Handle M6 Item No. 96000177 Applies to 40-44012/13 only Hand crank Item No. 20-60320-548 Applies to 40-44014/15 only Optional extras Ropox overflow plug Item No. 40-40935 © ROPOX 2017 Page 40... -
Page 41: Label
The user manual must be read before use. Waste must be sorted – if possible, for recycling. Ropox is the manufacturer of the product in question. CE marking. This product meets the requirements for General Safety and Functionality of the current EU Directives and Standards. -
Page 42: Complaint
Complaint See General Terms of Sale and Delivery on www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk © ROPOX 2017 Page 42...
