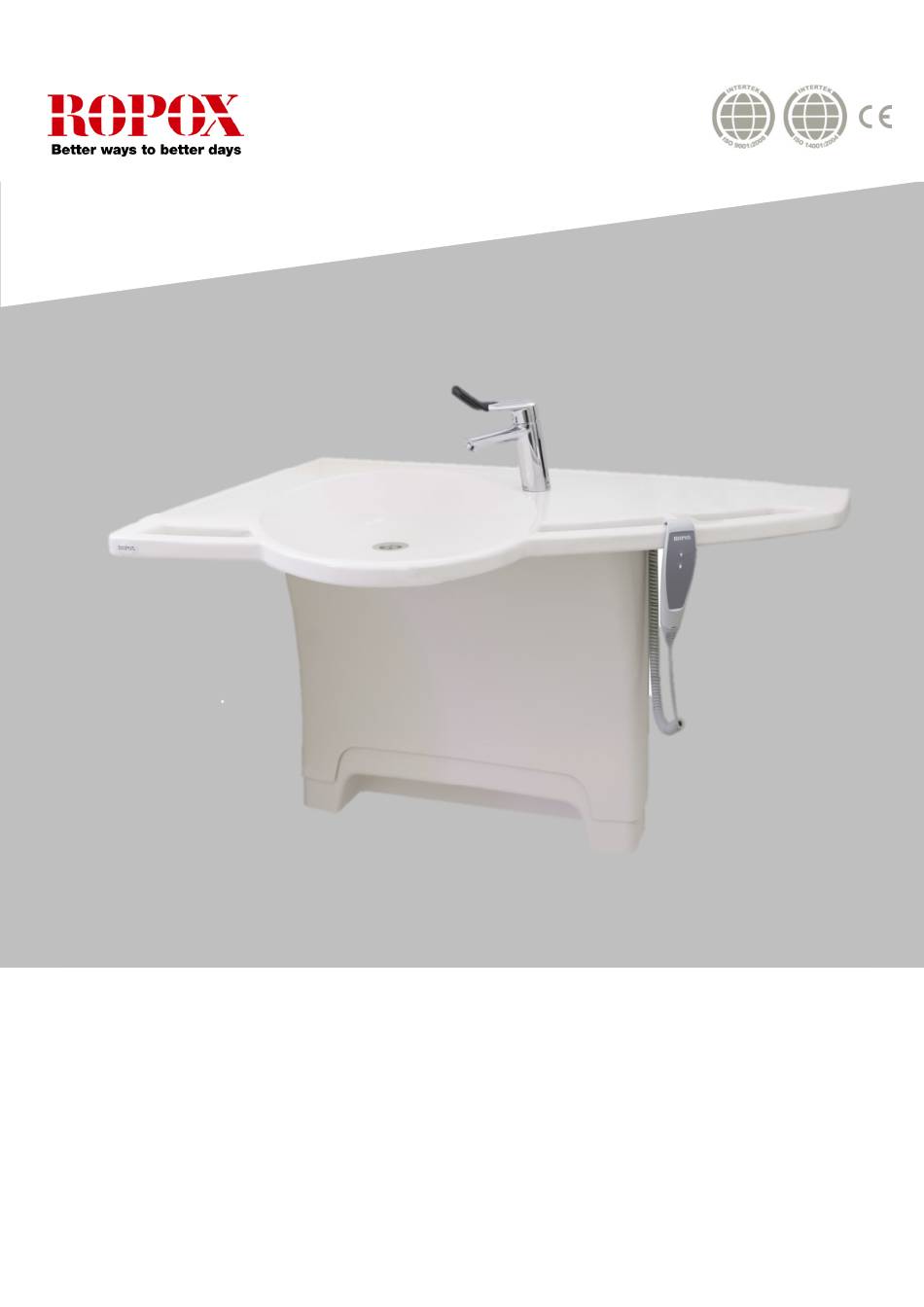

- Page 1 Ropox Support Washbasin Electric USER MANUAL Keep this manual with the product at all times PDF 6122 / 01.10.2015 PA 2004 00634...
-
Page 2: Table Of Contents
AULT FINDING ..............................17 AINTENANCE ............................17 ERFORMANCE TEST CE MARKING ..............................19 EU – D ......................19 ECLARATION OF ONFORMITY COMPLAINTS ..............................20 It is important to read this manual prior to mounting and © ROPOX 2014 Page 2... -
Page 3: Product Information
This product has CE marking and therefore meets the basic requirements concerning performance and safety of the current Machinery Directive. All types of the Ropox Support Washbasin are made in accordance with the relevant requirements of the Medical Devices Directive No. 93/42/EEC and are all in the lowest risk class 1. -
Page 4: Application
Application Ropox Support Washbasin Electric is adjustable in height and offers optimum working height for user and carer. Do NOT use Ropox Support Washbasin as a lifting table or person lifter. Height adjustment using handheld control switch with spiral cable (standard) Fixed control switch (option) ©... -
Page 5: Dimension Sketches
Product information Dimension sketches 40-44016 Left © ROPOX 2014 Page 5... -
Page 6: Installation Interfaces
If another location of water supply and drain is required, the Support Washbasin will be without cover plates. The drain may also be positioned in the floor, but in that case the cover plates cannot be used. © ROPOX 2014 Page 6... - Page 7 Product information Positioning of water supply, drain and power Red = Power, Blue = Water supply, Green = Drain 40-44016 Note: Stop valves pointing downward. 40-44017 Note: Stop valves pointing upward. © ROPOX 2014 Page 7...
- Page 8 Ø40 -> Ø50 Item No. 97001664 Drain hose extension Drain hose from washbasin Coupling piece Extra drain hose Ø40 Flex hose, 40-110cm Item No. 97001160 Ø40 Ø40-Ø40 Ø40 Flex hose, 51-150cm Item No. 97001663 Item No. 97001159 © ROPOX 2014 Page 8...
-
Page 9: Spare Parts
Item No. 40-44040 Auxiliary lever for Oras Saga mixer tap Item No. 40-14680 Mixer tap, Damixa Clover Easy Item No. 40-44044 No-touch mixer tap Oras Electra 6250F Item No. 40-44045 Ropox overflow plug Item No. 40-40935 © ROPOX 2014 Page 9... -
Page 10: Cleaning
The washbasin may get dirty during use. It is very important to clean the washbasin as described in these instructions. Simply dry the Ropox Support Washbasin Electric with a wrung cloth with lukewarm water and a customary cleaning agent. Do not use etching/grinding fluids or grinding cloths,... -
Page 11: Mounting Information
5. Make sure that there are no objects preventing the washbasin from moving up and down within the height adjustment range. When this test has been carried out successfully, the Ropox Support Washbasin Electric is ready for use. See ”Safety instructions”. -
Page 12: User Information
The user manual must be read prior to use. Waste must be sorted – if possible for recycling. Ropox is the manufacturer of this product. CE marking. This product meets the requirements for General Safety and Functionality of the relevant EU Directives and Standards. -
Page 13: Wiring Diagrams
Motor, connected to port 2 Handheld control switch connected to port HB Washbasin with fixed control switch (option, item No. 40-44026) Control unit 230V mains cable Blind plugs Motor, connected to port 2 Fixed control switch MJB box © ROPOX 2014 Page 13... -
Page 14: Electric Connections
The handheld control switch may be placed switch (option) as illustrated. If another in one of the three grab handles or on the location is required, please state when wall on the bracket provided. ordering. © ROPOX 2014 Page 14... -
Page 15: Safety Instructions
• Do not use Ropox Support Washbasin Electric as a lifting table or person lifter. • Always use the washbasin in a manner excluding the risk of damage to persons or property. -
Page 16: Service Information
“Installation interfaces” Resetting: Press and hold the UP (▲) and DOWN (▼) buttons and keep them depressed until the control unit has beeped approx. ten times. Now adjust the washbasin to the bottom position for resetting. © ROPOX 2014 Page 16... -
Page 17: Maintenance
See that the hose connection follow the movement without getting jammed. After each performance test, complete the service schedule. See the following page. Only use Ropox original spare parts as replacement parts. If other spare parts are used, the guarantee may become void. © ROPOX 2014... - Page 18 Signature: Comments: Comments: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Comments: Comments: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Comments: Comments: © ROPOX 2014 Page 18...
-
Page 19: Ce Marking
EU – Declaration of Conformity I, the undersigned, hereby declare that the following products: Ropox Support Washbasin Electric Item numbers: 40-44016, Ropox Support Washbasin Electric (left) 40-44017, Ropox Support Washbasin Electric (right) conform to the following Directives and Standards: DIRECTIVESER Medical Devices Directive No. -
Page 20: Complaints
Complaints See General Terms of Sale and Delivery on www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk © ROPOX 2014 Page 20...
