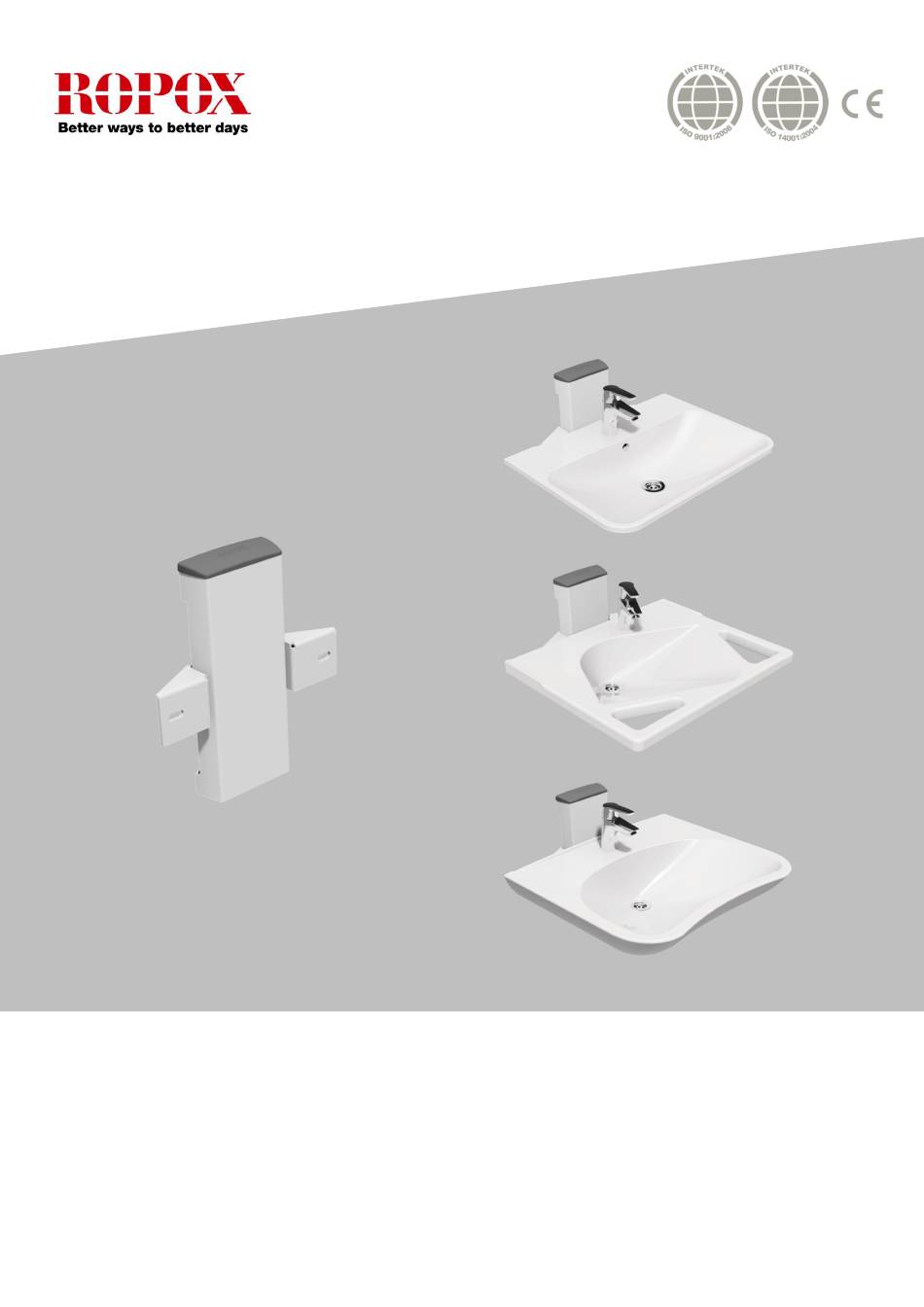

- Page 1 Ropox AdaptLine Manual User Manual and Mounting Instructions This manual must always accompany the product PDF 6190 / 01.01.2018...
-
Page 2: Table Of Contents
IST OF COMPONENTS ..........................12 OUNTING INSTRUCTIONS SERVICE INFORMATION..........................15 ..............................15 AINTENANCE ............................15 ERFORMANCE TEST SPARE PARTS ..............................16 CE DECLARATION ............................17 EU – D ......................... 17 ECLARATION OF CONFORMITY COMPLAINTS ..............................18 © ROPOX 2017 Page 2... -
Page 3: User Manual
User manual General product information Ropox AdaptLine Manual is a small height adjustable system for a washbasin. It can be height adjusted 20 cm, and the minimalistic design offers wheelchair users optimal legroom towards the wall. Ropox AdaptLine Unit comes as a height adjustable unit where most standard bolt mounted washbasins can be mounted. - Page 4 The manual must always be stored in a place where it is easily accessible to the user. The manual must follow the product at all times. © ROPOX 2017 Page 4...
-
Page 5: Dimension Drawings
User manual Dimension drawings 40-42110 40-42010 NB: All dimensions are in cm © ROPOX 2017 Page 5... - Page 6 User manual Dimension drawings 40-42011 40-42012 NB: All dimensions are in cm © ROPOX 2017 Page 6...
-
Page 7: Use
The washbasin height can be adjusted by means of the flexible handle. The grey top cover must be dismounted first, however. Then mount the flexible handle on the hexagonal shaft. Subsequently, the washbasin height is adjusted by turning the handle. © ROPOX 2017 Page 7... -
Page 8: Safe Use
User manual Safe use · Ropox AdaptLine may only be used by persons who have read and understood these instructions. · Always use the product in a manner excluding the risk of damage to persons or property. The person operating the Ropox AdaptLine is responsible for avoiding damage or injury. -
Page 9: Mounting Instructions
”Connection adapters” NOTE: All dimensions are based on a washbasin height of 700-900mm above floor level. If a change of this height is required, the recommended dimensions must be changed accordingly. © ROPOX 2017 Page 9... - Page 10 Ø32 -> Ø50 Item no. 97001661 Drain extensions Drain hose from washbasin Coupler Extra drain hose Ø32 Ø32 Flex hose, 27-62cm Item no. 97001162 Ø32-Ø32 Ø32 Flex hose, 40-110cm Item no. 97001062 Item no. 97001161 © ROPOX 2017 Page 10...
-
Page 11: List Of Components
2 (two) 97001035 Drain elbow 88,5° 2 (two) 97001012 Nipple ½” to 3/8” 2 (two) 97001123 Connecting hose ½” 0.5m 1 (one) replacement screw for drain 2 (two) bolts Ø4.8x70 A2 (only for 40-42010) M12x65 © ROPOX 2017 Page 11... -
Page 12: Mounting Instructions
Mounting instructions Mounting instructions Prior to the installation, please make sure that all parts have been provided in accordance with the list of components. © ROPOX 2017 Page 12... - Page 13 Mounting instructions NOTE: When mounting a porcelain wash basin an insolation foam pad MUST to be placed between the wash basin and the unit. © ROPOX 2017 Page 13...
- Page 14 Mounting instructions © ROPOX 2017 Page 14...
-
Page 15: Service Information
Service information Maintenance Inspections, service, and repairs must be carried out by qualified personnel Ropox AdaptLine is maintenance-free. Moving parts have been lubricated for life. For reasons of safety and reliability, we recommend a performance test once a year. Performance test... -
Page 16: Spare Parts
Spare parts For 40-42110-1, 40-42010-1, 40-42011-1, 40-42012-1 Description In product Item no. Ropox AdaptLine Unit Manual 40-42110-1 Mixer tap Oras Saga 3910F 97001706 Mounting parts for bolt mounted washbasin 97001467 Bolt M12x65 95041265 Stainless screw ø4.8x70 (only for 40-42010-1) 95091070... -
Page 17: Ce Declaration
Item no.: 40-42110 Ropox AdaptLine Unit Manual 40-42010 Ropox AdaptLine Washbasin Complete Manual, 60cm 40-42011 Ropox AdaptLine Washbasin Complete Manual, 60cm straight support 40-42012 Ropox AdaptLine Washbasin Complete Manual, 64cm hospital are in accordance with the following directives and standards: DIRECTIVES... -
Page 18: Complaints
Complaints See our general terms of sale and delivery on www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk © ROPOX 2017 Page 18...
