24 VAC
24 VDC
Wall Plate
6-32 x 5/16" OHMS
3/16
(2 Places)
(4.8)

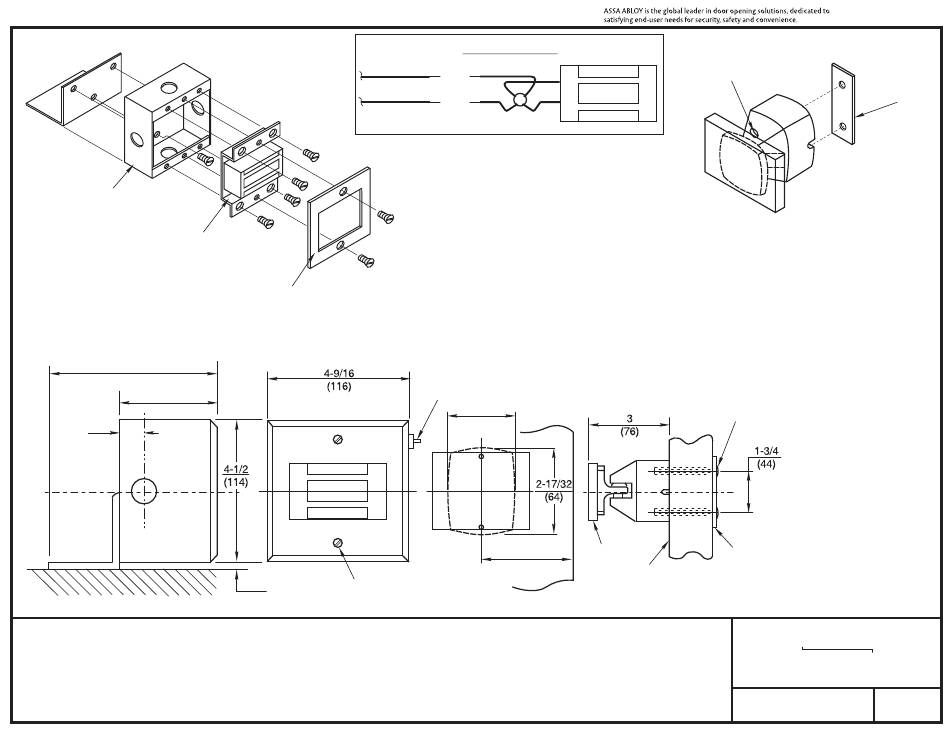

FM9930 Floor Mounted Door Release
WIRING DIAGRAM
-
+
Notes:
1. Do not scale drawing.
2. Total projection 8-3/16". (Includes Electromagnet, Armature Assembly and Floor Bracket.)
3. Power requirements: 24VAC/DC, .25 amp.
4. See Step 1 on DR100240B for switch box location. Anchor switch box to withstand a
minimum 300 lb. pull.
5. Door closing mechanism should have a 3 lb. closing force at the degree of door opening
where door armature and electromagnet engage.
6. All dimensions given in inches (mm).
7. Holding Force is 3 to 235 Pounds.
Momentary
Release Switch
(Optional)
1-13/16
(46)
Approx. 3" (76.2)
Contact
To Door Edge
Plate
Contact Plate
Adjusting Screw
Location
THRU BOLT MOUNTING
1/4-20 x 2-1/16"
THMS
(2 Places)
Door
Plate
Pull Side
of Door
RIXSON
TEMPLATE NUMBER
DR100240A
DR100240A
Door
Plate
®
ASSA ABLOY
www.rixson.com
DATE
03-09
