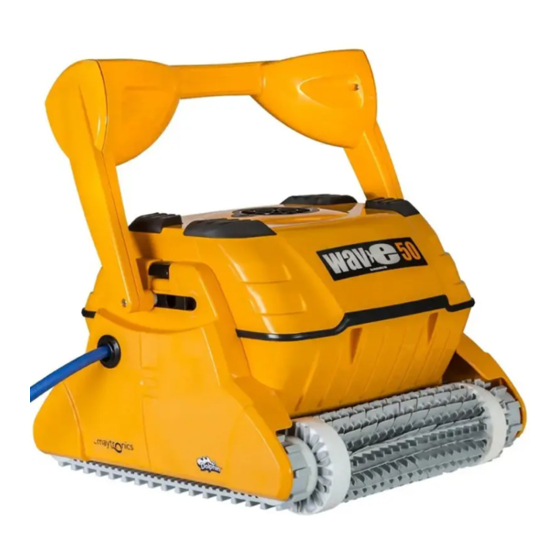

- Page 1 Dolphin WAVE 50 Pool Cleaner Operating Instructions 8152230...
-
Page 2: Table Of Contents
5.2. Putting the Pool Cleaner into the pool ........6 5.3. Removing the Pool Cleaner from the pool ......6 5.4. Maintenance ................7 5.5. Off-season storage ..............8 6. POWER SUPPLY ................... 9 CADDY ASSEMBLY ................. 10 Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 3: Introduction
Thank you for purchasing a Maytronics Robotic Pool Cleaner. We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush enhance maximum pool hygiene. -
Page 4: Pool Cleaner Parts
All surface climbing brush ideal for most pool surfaces Wonder Brush For smooth ceramics (optional) Bottom lid and filter Bag Power Supply Filter bag options: Unit Fine - factory default Ultra fine - extra Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 5: Using The Pool Cleaner
3,4: Fast advance B. Move the handle to the desired Fast speed – for faster position and release the latch but less efficient cleaning to hold the handle in place. action on water-line. Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 6: Putting The Pool Cleaner Into The Pool
Turn the power supply ON. 5.3. Removing the Pool Cleaner from the pool The robot will perform automatic shut-off at the end of the cleaning cycle. Turn OFF and unplug the power supply. CAUTION Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 7: Maintenance
5.4. Maintenance Clean the filter bag with a hose. Periodically clean the brushes with a hose. It is recommended to periodically wash the filter bag in a washing machine. Use gentle cycle program. Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 8: Off-Season Storage
• Roll up the cable so that it has no kinks and place on the Caddy • Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5°C - 45°C (41°F - 113°F) Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 9: Power Supply
6. POWER SUPPLY Digital “Switch-Mode” Power Supply. • Input - 100 VAC - 250 VAC ON/OFF switch • 50 Hz - 60 Hz • 180 W • Output - <30 VDC • IP 54 Dolphin WAVE 50 Pool Cleaner | Operating Instructions... -
Page 10: Caddy Assembly
Dolphin WAVE 50 Pool Cleaner Caddy assembly Dolphin WAVE 50 Pool Cleaner | Operating Instructions... - Page 11 * For Liberty models DIN 7985 A2 M5X35 DIN 1587 A2 M5 DIN 127B A2 M5 WN 1412 A2 KA50X16 Dolphin WAVE 50 Pool Cleaner | Operating Instructions...
- Page 12 8mm ( ”) * For Remote Control models Dolphin WAVE 50 Pool Cleaner | Operating Instructions...
- Page 13 Dolphin WAVE 50 Pool Cleaner 8152230 www.maytronics.com...
