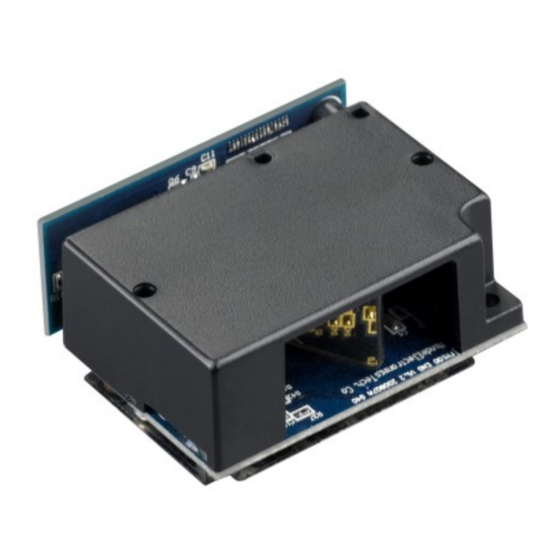

Mindeo FM100 User Manual

Laser barcode scan engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

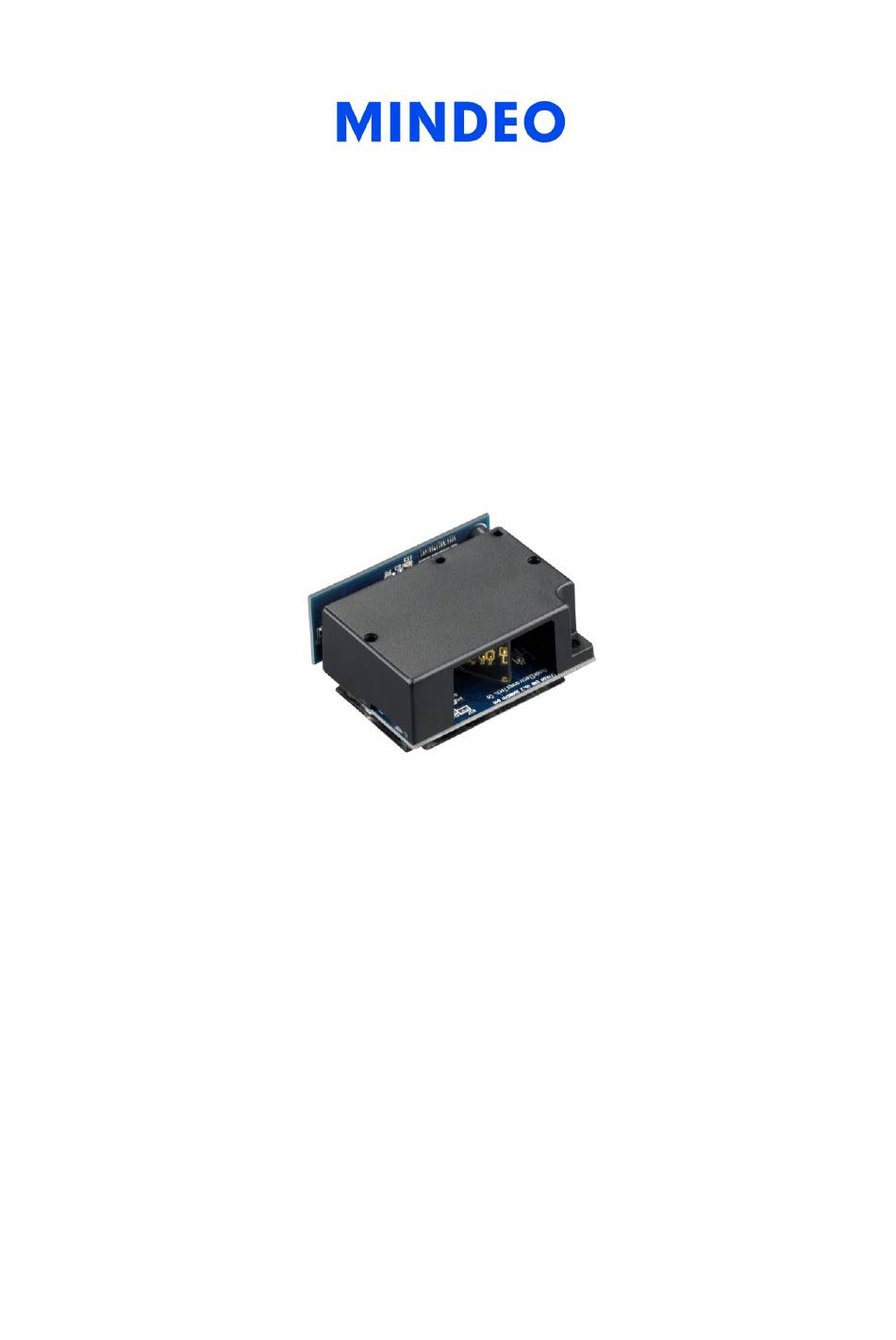

FM100 Laser Barcode Scan Engine
User Manual
Version: FM_UM_EN_V1.1.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mindeo FM100

Summary of Contents for Mindeo FM100

  • Page 1 FM100 Laser Barcode Scan Engine User Manual Version: FM_UM_EN_V1.1.7...

  • Page 2: Notes About Structure Design

    Notice Make sure you carefully read the following information to ensure that your barcode scan engine is able to perform at the level for which it is designed. All software, including firmware, furnished to the user is on a licensed basis. The right is reserved to make changes to any software or product to improve reliability, function, or design.

  • Page 3: Table Of Contents

    Contents Notice..................................i Notes about structure design ..........................i 1 Technical specifications............................. 1 2 Default setting for each barcode ........................2 3 Decode zone ............................... 3 4 Dimensions ................................4 5 Operation modes ..............................5 5-1 Operate the engine by TRIG ......................... 5 5-2 Operate the engine by receiving command via UART ..............
  • Page 4 8-20 China Finance ............................. 32 8-21 G1-G6 & FN1 substitution string setting..................34 8-22 G1-G4 string position & Code ID position ..................37 8-23 String transmission ..........................38 9 Test Chart ................................40 10 ASCII Table ..............................42 11 Barcode representing non-printable character ..................43 12 Return default parameters &...

  • Page 5: Technical Specifications

    1 Technical specifications Input voltage 3.3 V DC (±5%) Current 85 mA (operating) / 100 mA (peak) Standby current <250μA 650 nm laser diode Laser Scan rate 48±4 scans/sec UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Decode capability Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UK/Plessey,...

  • Page 6: Default Setting For Each Barcode

    2 Default setting for each barcode Read Check digit Check digit Min. code Proprietary Code type enable verification transmission length code ID code ID UPC-A √ √ √ (12) UPC-E √ √ √ EAN-13 √ √ √ (13) EAN-8 √ √...

  • Page 7: Decode Zone

    3 Decode zone High-density series Long-range series...

  • Page 8: Dimensions

    4 Dimensions Top view (with decoder) Side view (with decoder)

  • Page 9: Operation Modes

    5 Operation modes 5-1 Operate the engine by TRIG A pulse input to the pin triggers the engine to start scanning. TRIG T=1s The engine starts scanning at the arrival of pulse’s falling edge. The pulse width must be greater than 1 second. Figure 5-1: A pulse of trigger signal 5-2 Operate the engine by receiving command via UART UART parameter should be set as below:...

  • Page 10: Pin Assignment

    6 PIN assignment 6-1 FM 100-13x (with decoder) 12P connector PIN assignment FM 100 provides a low profile ZIF 12-pin connector to connect to a 0.5 mm x 12 position FFC/FPC cable. The pin assignments are as follows: PIN No Signal Name Type Description...

  • Page 11: Fm 100-00X (Without Decoder) 8P Connector Pin Assignment

    6-2 FM 100-00x (without decoder) 8P connector PIN assignment FM 100 provides a low profile ZIF 8-pin connector to connect to a 0.5 mm x 8 position FFC/FPC cable. The pin assignments are as follows: PIN No Signal Name Type Description Input Input...

  • Page 12: Installation

    7 Installation 7-1 Introduction This chapter provides information for mounting and installing the engine, including physical and electrical considerations and recommended window properties. Grounding The engine chassis is connected to GROUND. If you are installing the engine to a hot or powered host, you must isolate the two.

  • Page 13: Exit Window Materials

    Back View Side View Figure 7-1 Mounting Diagram Notes: 1- Chassis is electrically connected to ground and must be isolated from VCC. 2- Mounting screws must be nonmagnetic material. Do not place any magnetic material within 1 inch of the chassis without testing. 3- Dimensions are mm.

  • Page 14: Exit Window Positioning

    0.26/6.5 0.28/7.0 0.31/8.0 0.36/9.0 0.39/10.0 0.48/12.0 0.50/12.7 32.5° 30.0° 28.5° 27.0° 25.5° 22.5° 21.5° 32.5° 30.0° 28.5° 27.0° 25.5° 22.5° 21.5° 0.55/14.0 0.75/19.0 1.00/25.4 1.25/31.8 1.50/38.0 1.75/44.5 2.00/50.8 20.0° 16.0° 13.5° 12.0° 10.5° 9.5° 9.0° 20.0° 16.0° 13.5° 12.0° 10.5° 9.5°...

  • Page 15: Barcode Programming Instruction

    8 Barcode programming instruction Refer to the next page, the steps of programming are: a) Scan the SETUP bar code on the parameter setting part. b) Enter the option mode by scanning the Option bar code. c) To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan these alphanumeric entries.

  • Page 16: Upc-A

    8-1 UPC-A Read: Format Leading zero Data digits (11 digits) Check digit Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.

  • Page 17: Upc-E

    8-2 UPC-E Read: Format Leading zero Data digits (6 digits) Check digits Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.

  • Page 18: Ean-13

    8-3 EAN-13 Read: Format Data digits (12 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.

  • Page 19: Ean-8

    8-4 EAN-8 Read: Format Data digits (7 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of UPC-A.

  • Page 20: Code 39

    8-5 Code 39 Read: Format ⋆ Data digits (variable) Check digit (optional) ⋆ Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 21 SETUP Option bar code Option Alpha. entry Read Disable Enable Check digit verification Disable Enable Check digit transmission Disable Enable Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <M>* Insert group selection 00-66 00-66 Format...

  • Page 22: Interleaved 2 Of 5

    8-6 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbology Specification (USS) and the Optical Product Code Council (OPCC).

  • Page 23: Industrial 2 Of 5

    8-7 Industrial 2 of 5 Read: Format Data digits (variable) Max./Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. SETUP Option bar code Option...

  • Page 24: Matrix 2 Of 5

    8-8 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 25: Codabar

    8-9 Codabar Read: Format Start Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 26: Code 128

    8-10 Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A.

  • Page 27: Code 93

    8-11 Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 28: Code 11

    8-12 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.

  • Page 29: Msi/Plessey

    8-13 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.

  • Page 30: Plessey

    8-14 UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.

  • Page 31: Ucc/Ean 128

    8-15 UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max. /Min. code length: Refer to Max./Min. code length of Code 39. Code ID setting: Refer to Code ID setting of UPC-A.

  • Page 32: China Post

    8-16 China Post Read: Format 11 Data digits Max. /Min. code length: Refer to Max./Min. code length of Code 39. The code length of China Post is Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. SETUP Option bar code Option...

  • Page 33: Gs1 Databar (Gs1 Databar Truncated)

    8-17 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format 16 Data digits...

  • Page 34: Gs1 Databar Limited

    8-18 GS1 DataBar Limited Read: Format 16 Data digits Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Conversion: Refer to Conversion of GS1 DataBar (GS1 DataBar Truncated). SETUP Option bar code Option Alpha.

  • Page 35: Gs1 Databar Expanded

    8-19 GS1 DataBar Expanded Read: Format Data characters (variable) Code ID setting: Refer to Code ID setting of UPC-A. Insertion group selection: Refer to Insertion group selection of UPC-A. Conversion: UCC/EAN 128- Refer to Code ID transmission of String transmission, ]Cm will be identified as AIM ID. SETUP Option bar code Option...

  • Page 36: China Finance

    8-20 China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
  • Page 37 SETUP Option bar code Option Alpha. entry Read Disable Enable Max. code length 00-99 00-99 Min. code length 00-99 00-99 Check digit verification Disable Reserved Disable Enable Leading character 5/6/7/8/9 Only 5 converted to A converted to A/B/C/D/E Only 6 converted to B Only 7 converted to C Only 8 converted to D Only 9 converted to E...

  • Page 38: G1-G6 & Fn1 Substitution String Setting

    8-21 G1-G6 & FN1 substitution string setting Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
  • Page 39 FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
  • Page 40 SETUP Option bar code Option Alpha. entry Prefix string setting 0-22 characters 00-FF None Suffix string setting 0-22 characters 00-FF <ENTER> 0A0D* Preamble string setting 0-22 characters 00-FF None Postamble string setting 0-22 characters 00-FF None Insert G1 string setting 0-22 characters 00-FF None...

  • Page 41: G1-G4 String Position & Code Id Position

    8-22 G1-G4 string position & Code ID position Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol. In case of the insertion position is greater than the length of the symbol, the insertion of string is not effective.

  • Page 42: String Transmission

    8-23 String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
  • Page 43 SETUP Option bar code Option Alpha. entry Prefix transmission Disable Enable Suffix transmission Disable Enable Code name transmission Disable Enable Preamble transmission Disable Enable Postamble transmission Disable Enable Code ID transmission Disable Proprietary ID AIM ID Code length transmission Disable Enable Case conversion Disable...

  • Page 44: Test Chart

    9 Test Chart UPC-A UPC-E EAN-8 EAN-13 Code 39 Code 32 A908765439 Code 128 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 Code 93 UCC/EAN 128 Code 11 (Default setting: Read disable)
  • Page 45 MSI/Plessey (Default setting: Read disable) UK/Plessey ISBN/ISSN China Post GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded PDF417 01Az+-= MicroPDF417 23+-mdo...

  • Page 46: Ascii Table

    10 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 47: Barcode Representing Non-Printable Character

    11 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A”...

  • Page 48: Return Default Parameters & Others

    12 Return default parameters & others WARNING: Default value initialization If you wish to return the scanner to all the factory default settings, scan the barcode above. Firmware version list If you wish to display the firmware version, scan the barcode above.

  • Page 49: Configuration Alphanumeric Entry Barcode

    13 Configuration alphanumeric entry barcode...
