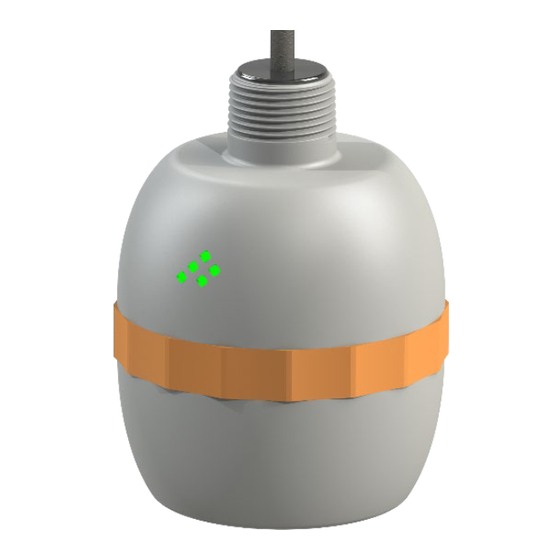

Pulsar Measurement REFLECT R8 Instruction Manual

Intelligent transducer level monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PULSAR REFLECT
TM
Intelligent Transducer
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REFLECT R8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar Measurement REFLECT R8

Summary of Contents for Pulsar Measurement REFLECT R8

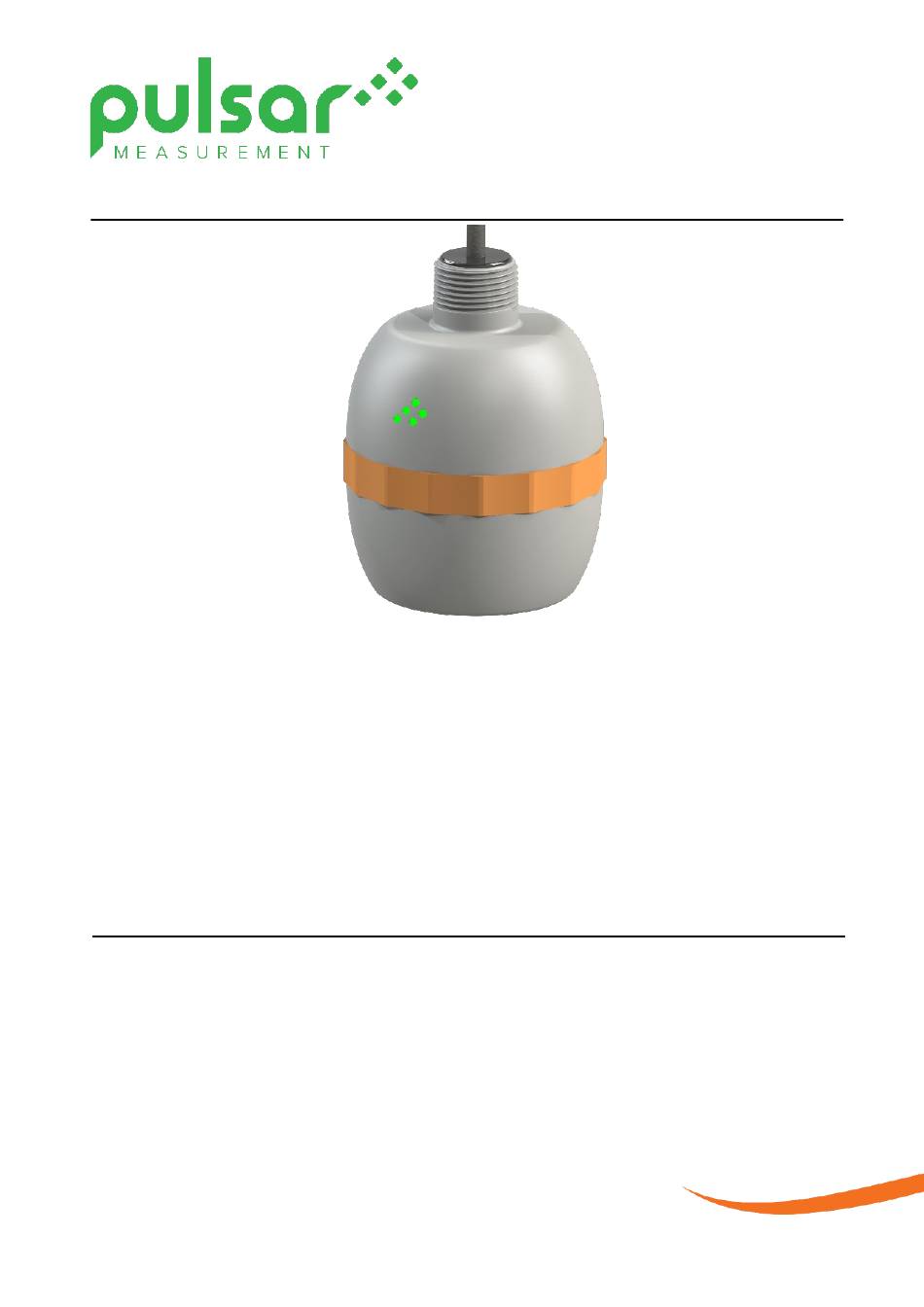

  • Page 1 PULSAR REFLECT Intelligent Transducer Instruction Manual...
  • Page 2 PULSAR REFLECT INSTRUCTION MANUAL...
  • Page 3 Pulsar Measurement. WARRANTY AND LIABILITY Pulsar Measurement guarantees for a period of 2 years from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Measurement if it is found to be defective in material or workmanship, subject to the defect not being due to unfair wear and tear, misuse, modification or alteration, accident, misapplication, or negligence.

  • Page 4: Table Of Contents

    PULSAR REFLECT INSTRUCTION MANUAL CONTENTS Chapter 1: Start Here… ......................7 About this Manual ....................... 7 About Pulsar REFLECT ......................8 Functional Description ....................... 8 Product Specification ....................... 10 UK Declaration of Conformity ..................12 EU Declaration of Conformity ..................13 Chapter 2 Installation ......................
  • Page 5 PULSAR MEASUREMENT REFLECT Hart Communicator Software ..............37 Opening Pulsar REFLECT Hart Communicator ............39 Pulsar REFLECT Hart Communicator Opening Screen ........40 Menu Strip ........................... 40 Shortcut Icons ........................42 Toggle Parameter List ..................... 45 Main Screen Selection Tabs ..................45 Main Screen .........................
  • Page 6 PULSAR REFLECT INSTRUCTION MANUAL Volume ..........................71 Conversion ........................... 71 Breakpoints .......................... 76 Tables ............................. 77 Chapter 6 Troubleshooting ....................78 Chapter 7 Disposal ........................ 79 Transducers ......................... 79 Controllers..........................79...

  • Page 7: Chapter 1: Start Here

    PULSAR MEASUREMENT CHAPTER 1: START HERE… Congratulations on your purchase of a Pulsar REFLECT Intelligent Transducer Level Monitoring System. This quality system has been developed over many years and represents the latest in high technology Radar level measurement and control. It has been designed to give you years of trouble-free performance, and a few minutes spent reading this operating manual will ensure that your installation is as simple as possible.

  • Page 8: About Pulsar Reflect

    BLE Browser on iOS). The primary system communication is via HART modem over 4-20mA loop. For further information on setting up Radar with a controller please consult Pulsar Measurement for assistance. It gives all the advantages associated with radar technology and offers best- in-class performance with a narrow beam angle.
  • Page 9 PULSAR MEASUREMENT Easy calibration and maintenance free “fit and forget” performance mean that you can install the REFLECT Level Monitoring System rapidly and with confidence, with calibration being achieved either using a HART programmer/calibrator, or via a PC utilising the Pulsar REFLECT software.

  • Page 10: Product Specification

    PULSAR REFLECT INSTRUCTION MANUAL Product Specification PHYSICAL Dimensions & Mounting All models: 135 x 102mm (5.31 x 4.04”) Rear thread 1” BSP (UK or ATEX only) with M20 adaptor, or optional 1.5” BSP front thread. Mounting Options ANSI or DIN flange front thread adaptor (PVDF) Weight All Models: 1.5kg (3.3lbs) Frequency...
  • Page 11 Current consumption at start-up = 20mA ACCESSORIES BReez Adaptor Greatly increases ease of use Front Thread Adaptor For compatibility with chemical applications Pulsar Measurement operates a policy of constant development and improvement and reserve the right to amend technical details, as necessary.

  • Page 12: Uk Declaration Of Conformity

    PULSAR REFLECT INSTRUCTION MANUAL UK Declaration of Conformity...

  • Page 13: Eu Declaration Of Conformity

    PULSAR MEASUREMENT EU Declaration of Conformity...

  • Page 14: Chapter 2 Installation

    If there is any shortage or obvious shipping damage to the equipment, report it immediately to Pulsar Measurement. Power Supply Requirements The Pulsar REFLECT Intelligent Transducer operates from a DC supply of 12 to 28V and will typically draw less than 22mA.

  • Page 15: Dimensions

    PULSAR MEASUREMENT Dimensions The dimensions of the Pulsar REFLECT Intelligent Transducer are shown below: Rear Thread Mount R8 & R20 1” BSP thread 102mm (4.01”)
  • Page 16 PULSAR REFLECT INSTRUCTION MANUAL Front Thread Mount R8 & R20 1” BSP thread 1.5” BSP thread 38mm (1.49”) 102mm (4.01”) Important Notice The diagrams shown are for illustrative purposes only.

  • Page 17: Outdoor And Open Vessel Installation

    PULSAR MEASUREMENT Outdoor and Open Vessel Installation The Pulsar REFLECT Intelligent Transducer can be simply mounted on a bracket, suitable for the application and secured using either the 1" BSP with M20 adaptor (UK & ATEX) rear thread or via the 1½″ front thread, dependant on model.

  • Page 18: Closed Vessel Installation

    PULSAR REFLECT INSTRUCTION MANUAL Closed Vessel Installation “L” should be at least that as detailed in the table above but can be greater if required. The Pulsar REFLECT Intelligent Transducer can be simply screwed into a flange and secured using the rear 1" BSP with M20 adaptor (UK & ATEX) rear thread or via the 1½″...

  • Page 19: Cable

    PULSAR MEASUREMENT When using a standpipe, fixed to the top of a vessel, ensure that the open end of the standpipe is clear of any obstructions such as weld seams, gaskets etc. to avoid unwanted signal returns. If using standpipes which extend into the vessel, beyond the blanking...

  • Page 20: Preparation For Operation

    PULSAR REFLECT INSTRUCTION MANUAL Loop Resistance For two wire operation, the maximum cable resistance allowable can be calculated from the graph below. For example, if a Pulsar REFLECT Intelligent Transducer was supplied from 24V, the maximum total cable resistance is 650 ohms, for a typical 77 ohm/km cable this would mean a maximum cable length of 650/77 = 8.4km, remember this is total cable resistance, so this figure must be divided by 2 to give 4.2km max distance.

  • Page 21: Maintenance

    There are no user serviceable parts inside your Pulsar REFLECT Intelligent Transducer, if you experience any problems with the unit, then please contact Pulsar Measurement for advice. To clean the equipment, wipe with a damp cloth. Do not use any solvents on the enclosure.
  • Page 22 PULSAR REFLECT INSTRUCTION MANUAL 6. The certificate number has an ‘X’ suffix that indicates that the following special condition of certification applies; In the case of Pulsar REFLECT, due to the housing and labels being non- conductive plastic, care needs to be taken with regards electrostatic charge.
  • Page 23 PULSAR MEASUREMENT Hazardous Area Installation CABLE DESCRIPTION COMMENTS COLOUR DC Power +Ve +12V to +28V DC max. Black DC 0V / Ground Connect to the same point Green Cable Screen Important Notice A Barrier with rated nominal resistance of Rs ≤ 250Ω is advised for...

  • Page 24: Chapter 3 How To Use Your Pulsar Reflect

    PULSAR REFLECT INSTRUCTION MANUAL CHAPTER 3 HOW TO USE YOUR PULSAR REFLECT 4-20 mA Device The REFLECT will be in Install-Liquid mode so will need to be changed to one of the measure modes to allow the output to be dynamic. For example, if setting the measurement mode to Level the 4 –...

  • Page 25: Accessing Parameters

    PULSAR MEASUREMENT Accessing Parameters To view or change parameters values one of the following methods must be used: Hart Commands If familiar with the use of HART protocol and the Pulsar REFLECT Intelligent Transducer is connected to a HART modem, then it can be programmed following normal HART procedures.

  • Page 26: Chapter 4 Reflect Bluetooth And Pc Connectivity

    PULSAR REFLECT INSTRUCTION MANUAL CHAPTER 4 REFLECT BLUETOOTH AND PC CONNECTIVITY REFLECT Bluetooth The Pulsar REFLECT Intelligent Transducer has the capability to connect to your smartphone (Android and Apple iOS), tablet or laptop via a Bluetooth connection. When connected you can view and change parameters, check level measurements, and view live echo traces in the palm of your hands.
  • Page 27 PULSAR MEASUREMENT Important Notice Ensure that the Pulsar REFLECT Intelligent Transducer is powered prior to making a connection to the REFLECT Bluetooth page Alternatively, you can use the QR code provided below: Whether using the QR code or the webpage App address, when selected you will be directed to the Pulsar REFLECT Bluetooth Home page where a connection to the Pulsar REFLECT can be made.

  • Page 28: Home Page

    PULSAR REFLECT INSTRUCTION MANUAL Home Page The Home page allows the connection/disconnection to a Pulsar REFLECT Intelligent Transducer, the ability to query and change parameters along with providing live information on the current readings obtained from the Pulsar REFLECT connected. Web Page Selector: Displays the current Pulsar REFLECT page you are viewing highlighted by a white background.
  • Page 29 PULSAR MEASUREMENT Device Scan: Click this to scan and pair to a Pulsar REFLECT Intelligent Transducer. Once selected, a window will open for you to select the Pulsar REFLECT you wish to pair via Bluetooth and connect to. When connected to a Pulsar REFLECT, the buttons on the Web App will change from Orange to Green, signifying a connection has been made successfully.

  • Page 30: Connecting Your Reflect

    PULSAR REFLECT INSTRUCTION MANUAL Live Distance Measurement: This displays the current Distance measurement being obtained from the Pulsar REFLECT connected. Live Level Measurement: This displays the current Level measurement being obtained from the Pulsar REFLECT connected. End Session: When this is selected, you will terminate the connection between the Web App and the Pulsar REFLECT you were connected to.
  • Page 31 PULSAR MEASUREMENT Select the Pulsar REFLECT you wish to connect to, and then press the Pair button which will now be highlighted in blue. When connected, all the selectable buttons on the software will change from orange to green signifying a connection has been made. The command box will also display the message ‘connected’...

  • Page 32: Trace Page

    PULSAR REFLECT INSTRUCTION MANUAL Trace Page The Trace page provides real time echo trace readings, and status information on the current readings obtained from the Pulsar REFLECT connected. You can also turn on/off the real time echo trace information on this page. This is the page that is displayed as soon as a confirmed connection has been made to a Pulsar REFLECT Intelligent Transducer.
  • Page 33 PULSAR MEASUREMENT Toggle DATEM and ECHO: Option to view/hide DATEM and ECHO respectively by clicking on it. Trace area: The graph area is used to display real time diagnostic echo trace information from the Pulsar REFLECT Intelligent Transducer connected. The X axis represents the distance in measurement units (P104) defined by the Pulsar REFLECT transducer.

  • Page 34: Settings Page

    PULSAR REFLECT INSTRUCTION MANUAL Settings Page The setting page provides the user with options to view/update readily available Bluetooth and RADAR parameters. Once connected to a REFLECT unit, selecting the Settings page for the first time would do an initial query of all the RADAR parameters once.
  • Page 35 PULSAR MEASUREMENT Range: Indicates the current Bluetooth range in metres. Also, allows the user to set the range between 4 and 40m using the slider. This could be used to prevent unauthorised access to the Pulsar REFLECT from outside the facility where it has been installed.
  • Page 36 PULSAR REFLECT INSTRUCTION MANUAL Span (P106): Gets/sets the span of the unit. Refer P106 Span further information. Fail Mode (P808): Gets/sets the mA output in the event of the unit going into fail-safe mode. Refer P808 Fail Mode for detailed explanation.

  • Page 37: Reflect Hart Communicator Software

    REFLECT Hart Communicator software can also be used to record and view Echo Profiles from your applications, which can be saved for your records or sent via e-mail back to Pulsar Measurement for our engineers to analyse. The software can also be used to re-program your REFLECT to the latest version of firmware, with any enhancements that it may contain.
  • Page 38 PULSAR REFLECT INSTRUCTION MANUAL REFLECT HART connection To connect to Pulsar REFLECT Hart Communicator software, a HART modem is required to allow communication between the Hart Communicator software and the REFLECT transducer. When connecting to the software using the HART modem, power to the REFLECT transducer can be obtained from a 12-28V DC source.

  • Page 39: Opening Pulsar Reflect Hart Communicator

    PULSAR MEASUREMENT Opening Pulsar REFLECT Hart Communicator Once the Pulsar REFLECT Hart Communicator software has been installed on to your local machine, double click on the Pulsar REFLECT Hart Communicator shortcut and a window will appear prompting you to enter a passcode (like the image shown below).

  • Page 40: Pulsar Reflect Hart Communicator Opening Screen

    PULSAR REFLECT INSTRUCTION MANUAL Pulsar REFLECT Hart Communicator Opening Screen Menu Strip Shortcut Icons Main screen selection tabs Toggle parameter list Main Screen Common Controls Menu Strip None of the menu strip drop down menus can be accessed if you are viewing echo profiles.
  • Page 41 Setup menu enables you to open up the Comport settings window, enabling you to select the comport that the Pulsar REFLECT is connected to. Please consult Pulsar Measurement if you wish to utilise the Re-program option which is greyed out.

  • Page 42: Shortcut Icons

    PULSAR REFLECT INSTRUCTION MANUAL About This displays information about the Pulsar REFLECT software you are using. Shortcut Icons NAME ICON DESCRIPTION Allows you to search for any parameter file that you File wish to open, view, and examine. Parameter files are saved in a .xml format.
  • Page 43 PULSAR MEASUREMENT You can also pause and move the slider to a specific position of the total trace recordings (ideal for long recordings). Or press stop to end the replay.
  • Page 44 PULSAR REFLECT INSTRUCTION MANUAL ICON NAME DESCRIPTION This enables you to download all parameters that are currently in the Pulsar REFLECT that is Upload connected to the Hart Communicator software. You will be prompted to save the parameters when the download is complete. Send This allows you to send all parameters at once in Parameters to...

  • Page 45: Toggle Parameter List

    PULSAR MEASUREMENT Toggle Parameter List When you have uploaded the parameters from the connected REFLECT (or from your laptop), a list of changed parameters will appear in the right-hand side of your screen. Pressing the toggle parameters icon will alternately show all parameters, (with the changed parameters highlighted in yellow), show only the changed parameters, and then hide the table from view.

  • Page 46: Main Screen

    PULSAR REFLECT INSTRUCTION MANUAL Main Screen The main screen is used to display real time diagnostic echo trace information from the Pulsar REFLECT Intelligent Transducer connected or replay recorded echo traces previously saved. Echo traces To request an echo trace from the Pulsar REFLECT, select the Regular Echo ‘On’...
  • Page 47 PULSAR MEASUREMENT Gate and Measurement line The distance line shows which echo is being selected for the measurement. The vertical blue lines remain fixed at either side of the distance line, and act as a stability mechanism to filter out any momentary echoes from passing machinery/stirrers etc.
  • Page 48 PULSAR REFLECT INSTRUCTION MANUAL By default, the DATEM in Pulsar REFLECT Transducers is ACTIVE which means it will grow to cover (mask out) any fixed obstructions in front of the current measurement echo. Looking at the trace below, the only echo which can be “seen” by the echo selection algorithm is the current selected echo at 2.6 metres.
  • Page 49 PULSAR MEASUREMENT To zoom out, simply draw a box from the bottom right to top left and the echo trace will resume its normal shape. Important Information If you are connecting to multiple devices that are to be placed onto a HART network, the Poll address of each sensor will need to be changed from the default value of 0.
  • Page 50 PULSAR REFLECT INSTRUCTION MANUAL After using the Setup menu option to detect the correct comport, you can look to make a connection the connected Pulsar REFLECT Intelligent Transducer. Click on the button to begin a scan of any connected HART devices.
  • Page 51 Important Information This feature is only available when in service mode. Please consult a Pulsar Measurement engineer for further assistance. The DATEM line can be adjusted manually, by selecting the ‘view DATEM points’ box. When selected a purple line will appear on the echo trace graph...
  • Page 52 PULSAR REFLECT INSTRUCTION MANUAL To undo the manipulation of the DATEM points, select the button and the DATEM line will resume its default value: P21 DATEM Distance To request echo traces from the Pulsar REFLECT Intelligent Transducer, change regular echo from Off: This parameter allows you to determine which echo is to be used for measurement purposes.

  • Page 53: Progress Bar

    PULSAR MEASUREMENT Progress Bar The progress bar color the changes to indicate the different actions that are being performed. Blue indicates that the raw echo is being obtained and updated when it reaches 100%. Purple indicates that the DATEM line is being obtained and updated when it reaches 100%.

  • Page 54: Quick Start Setup

    PULSAR REFLECT INSTRUCTION MANUAL DATEM Trace This option displays the DATEM line when selected, if unselected then DATEM will be hidden from view on the echo trace graph. Show Distance This option displays the Measurement Marker line when selected, if unselected the Measurement Marker will be hidden from view on the echo trace graph.

  • Page 55: Setting Security Passcodes

    PULSAR MEASUREMENT Using the 4-20 mA Output The mA output can be used to monitor remotely what the Pulsar REFLECT Intelligent Transducer is measuring, so it can be displayed remotely, integrated into a PLC, or used to generate a record using a chart recorder or similar.

  • Page 56: Resetting Factory Defaults

    PULSAR REFLECT INSTRUCTION MANUAL Resetting Factory Defaults If you need to restore parameters to their original factory settings, then access parameter P930, which is the factory defaults parameter, change the value to 1 and ENTER, all parameters, except for the mA trims, will be restored to the factory settings (including the DATEM trace) and on completion.

  • Page 57: Chapter 5 Parameter Listing And Description

    PULSAR MEASUREMENT CHAPTER 5 PARAMETER LISTING AND DESCRIPTION Application Operation P100 Mode of Operation This parameter sets the mode of operation, when in run mode, and can be set to one of the following: OPTION DESCRIPTION 1= Distance Display shows the distance from the transducer face to the surface.
  • Page 58 PULSAR REFLECT INSTRUCTION MANUAL P241 Indicator Mode This parameter should be set to the type of material being monitored. The below outlines what each indicator mode does: MODE DESCRIPTION FUNCTION (P241) OUTPUT Dynamic Installation – Long LED Flash, colors related to Tilt 20mA Liquid Angle of installation.
  • Page 59 PULSAR MEASUREMENT LED Functionality MODE LED FUNCTION NUMBER (P241) GREEN AMBER Level with Horizontal Between Pass and Not Level plane Fail Raw Echo Strength Raw Echo Strength Raw Echo Strength above P242 (Signal above P243 (Signal below both Strength Threshold...

  • Page 60: Distance

    PULSAR REFLECT INSTRUCTION MANUAL Distance P104 Measurement Units This parameter sets the units you want to use for programming and display DESCRIPTION OPTION 1 = metres All units of measure are METRES 2 = cm All units of measure are CENTIMETRES 3 = mm All units of measure are MILLIMETRES 4 = feet...

  • Page 61: Data Logs

    PULSAR MEASUREMENT P108 Far Blanking This is the distance (as a percentage of empty level) beyond the empty point that the unit will be able to measure, and the default is pre-set to 10% of the empty level. If the surface being monitored can extend beyond the Empty Level (P105) then the far blanking distance can be increased to a maximum of 100% of empty level.
  • Page 62 PULSAR REFLECT INSTRUCTION MANUAL P586 Current Temperature This parameter displays the current temperature. Transducer Power Information The following parameters provide information on when the Pulsar REFLECT Intelligent Transducer was last powered down and how long it had run for. P940 Number of Starts This parameter displays the number of times that the unit has been powered since leaving the factory.

  • Page 63: Ma Output

    PULSAR MEASUREMENT mA Output P834 mA Low Level This parameter sets the level, distance, or space, at which the low mA output will occur (4mA). Default = 0.000m P835 mA High Level This parameter sets the level, distance, or space, at which the low mA output will occur (20mA).

  • Page 64: Compensation

    PULSAR REFLECT INSTRUCTION MANUAL mA Failsafe P808 Fail Mode This parameter determines what happens to the mA output in the event of the unit going into fail-safe mode: DESCRIPTION OPTION 1 = Hold (Default) The Pulsar REFLECT will Hold its last known value 2 = High The Pulsar REFLECT will read High (20mA) 3 = Low...
  • Page 65 PULSAR MEASUREMENT P852 Temperature Source This parameter determines the source of the temperature measurement. By default, it is set to automatic (Option 1), which will automatically detect if a temperature sensor is available from the Pulsar REFLECT. If for any reason, no temperature input is received, then the Fixed Temp value is used, as set by P854.

  • Page 66: Stability

    System Important Notice Parameters 926, 927 and 928 do not affect how the unit performs, but details contained in them may be required, by Pulsar Measurement, when making technical enquiries.
  • Page 67 PULSAR MEASUREMENT System Information P926 Software Revision This parameter will display the current software revision. P927 Hardware Revision This parameter will display the current hardware revision. It is read only and cannot be changed. P928 Serial Number This parameter will display the serial number of the Pulsar REFLECT connected.
  • Page 68 PULSAR REFLECT INSTRUCTION MANUAL P922 Passcode This is the passcode that must be used to enter program mode. The default is 1997, but this can be changed to another value. Alarm Limits The Pulsar REFLECT intelligent transducer stores an echo trace internally when the Alarm condition is triggered.

  • Page 69: Datem

    PULSAR MEASUREMENT LOE Save Trace P950 Save DATEM Trace on LOE When enabled this parameter will ensure that in the event of the unit going into a LOE situation a trace at the time of the LOE occurrence is saved for future reference.
  • Page 70 Pulsar for further information and assistance on changing the value of this parameter. P70 DATEM Speed This parameter is used to the speed in which the DATEM trace will react. Please consult Pulsar Measurement for further information and assistance on changing the value of this parameter. OPTION DESCRIPTION...

  • Page 71: Volume

    PULSAR MEASUREMENT Volume Conversion P600 Vessel Shape This parameter determines which vessel shape is used when utilising “Volume Conversion”. The choices are as shown in the table below, along with the dimensions that are required to be entered (P601-P603). VESSEL SHAPE...
  • Page 72 PULSAR REFLECT INSTRUCTION MANUAL VESSEL SHAPE P600 VALUE DESCRIPTION DIMENSIONS Height of base, P600 = 3 Rectangular Width and Breadth Pyramid Base of Rectangle Cylinder diameter P600 = 4 Parabola Base and height of bottom P600 = 5 cylindrical half Cylinder diameter sphere Cylinder diameter...
  • Page 73 PULSAR MEASUREMENT P600 VALUE VESSEL SHAPE DIMENSIONS DESCRIPTION P600 = 8 Horizontal Cylinder diameter cylinder with flat ends and tank length Cylinder diameter, P600 = 9 Horizontal length of one end cylinder with parabolic and section, and ends tank length...
  • Page 74 PULSAR REFLECT INSTRUCTION MANUAL P601-P603 Vessel Dimensions These three parameters are used to enter the dimension required to calculate the volume. The dimensions required are as shown below and are entered Measurements Units (P104). VESSEL SHAPE P601 P602 P603 P600 = 0 Cylinder Not required Not required...
  • Page 75 PULSAR MEASUREMENT P605 Volume Units This parameter determines the units that you wish to display, for volume conversion. It is used in conjunction with P607 (maximum volume), and the units are shown on the display. The choices are: OPTION DESCRIPTION...

  • Page 76: Breakpoints

    PULSAR REFLECT INSTRUCTION MANUAL Breakpoints P610-P641 Level/Volume Breakpoints These parameters are used to create a profile of the vessel when P600=11 (universal linear) or P600=12 (universal curved). You should enter breakpoints in pairs, a reading for level and its corresponding volume. The more pairs you enter, the more accurate the profile will be.

  • Page 77: Tables

    PULSAR MEASUREMENT Universal Curved (P600=12) This volume calculation creates a curved approximation of the level/volume relationship, and works best if the vessel is non-linear, and there are no sharp angles. You should enter 2 level/volume breakpoints at the minimum and maximum levels, and several for each place where the vessel has got an arc.

  • Page 78: Chapter 6 Troubleshooting

    PULSAR REFLECT INSTRUCTION MANUAL CHAPTER 6 TROUBLESHOOTING This section describes many common symptoms, with suggestions as to what to do. POSSIBLE CAUSES ACTION Transducer not firing. Check power supply No valid echo being received, and unit has gone into fault condition. Check material level is not Unit indicates a “LOE”...

  • Page 79: Chapter 7 Disposal

    PULSAR MEASUREMENT CHAPTER 7 DISPOSAL Incorrect disposal can cause adverse effects to the environment. Dispose of the device components and packaging material in accordance with regional environmental regulations including regulations for electrical \ electronic products. Transducers Remove power, disconnect the Transducer, cut off the electrical cable and dispose of cable and Transducer in accordance with regional environmental regulations for electrical \ electronic products.
  • Page 80 S U P P O R T @ P U L S A R M E A S U R E M E N T . C O M Copyright © 2022 Pulsar Measurement Ltd. Registered Address: 1 Chamberlain Square CS, Birmingham B3 3AX Registered No.: 3345604 England &...
