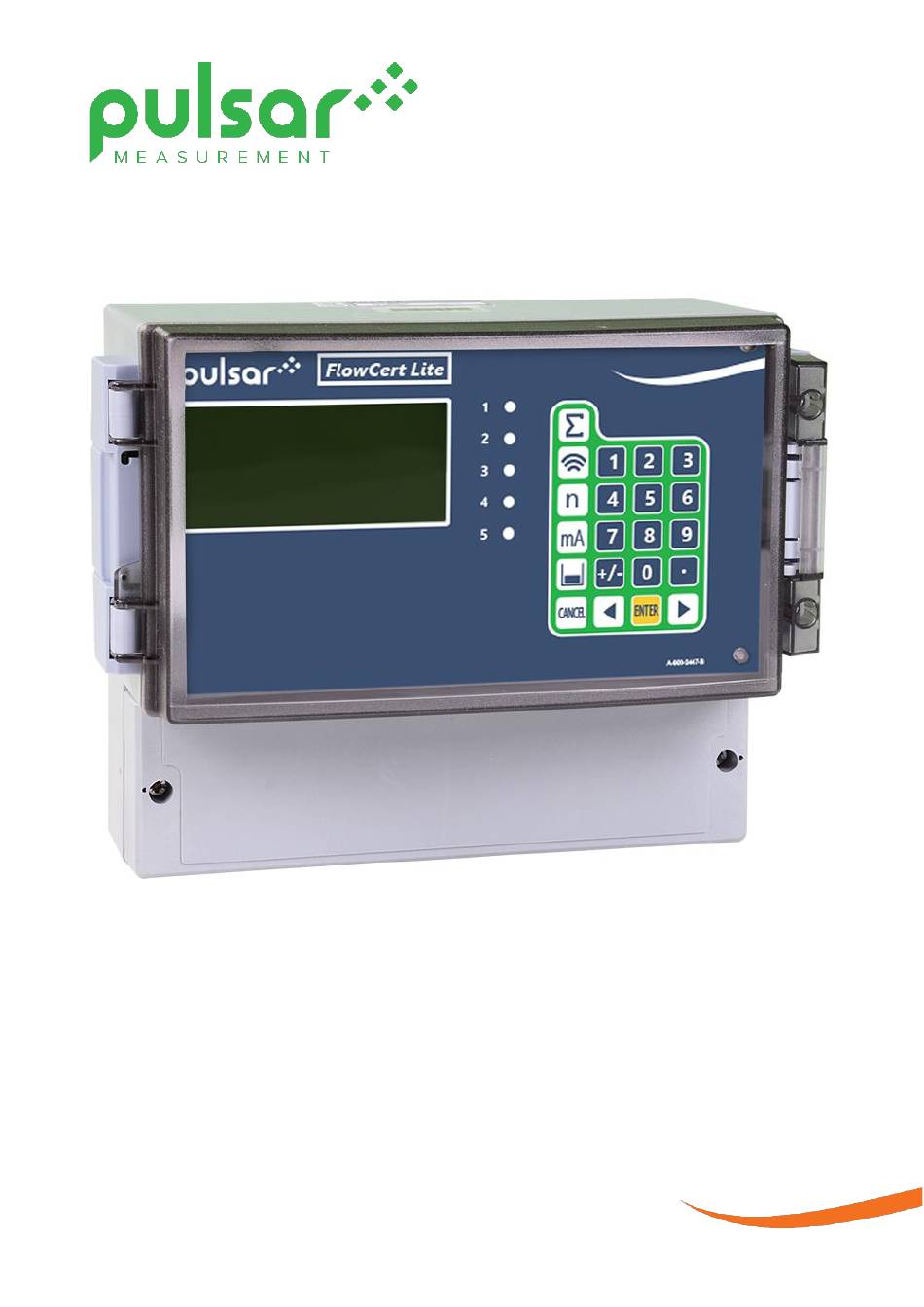

  • Page 1 FlowCERT Lite UL Instruction Manual...
  • Page 3 Pulsar Process Measurement Limited. WARRANTY AND LIABILITY Pulsar Measurement guarantee for a period of 2 years from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Process Measurement...

  • Page 4: Table Of Contents

    CONTENTS Chapter 1: Start Here… ......................9 About this Manual ....................... 9 About the FlowCERT ......................10 Functional Description ....................11 Product Specification ....................... 12 EU Certificate of Conformity ..................14 Chapter 2 FlowCERT Lite Installation ................15 Unpacking ..........................15 Power Supply Requirements..................
  • Page 5 PULSAR MEASUREMENT Numeric Keys ........................33 Using the Menu System ....................34 Directly Editing Parameters ..................35 Test Mode ..........................36 Using the Serial Interface ....................37 Parameter Defaults ......................39 Chapter 4 Quick Setup Guide ................... 40 Enter Program Mode ....................... 40 Choose Quick Setup ......................
  • Page 6 FLOWCERT LITE (UL) INSTRUCTION MANUAL Universal Calculations (P700=6) .................. 67 Calculations ......................... 67 Chapter 5 Parameter Guide ....................68 Menu System ........................68 Top Level Menu ......................... 68 Application Menu ......................69 Relays Menu ........................70 Data Logs Menu ........................ 71 OCM Menu ..........................
  • Page 7 PULSAR MEASUREMENT OCM Parameters ....................... 98 PMD Setup ........................... 98 Dimensions ........................101 Calculations ........................107 Breakpoints ........................107 Tables ........................... 108 Average Flow ........................108 Display Parameters ......................109 Options ..........................109 Failsafe ..........................110 Auxiliary ..........................111 Totaliser ..........................113 Bargraph ..........................
  • Page 8 FLOWCERT LITE (UL) INSTRUCTION MANUAL Filters ............................ 122 Echo Processing Parameters ..................123 Transducer Status ......................123 System Parameters ......................124 Passcode ..........................126 Backup ..........................126 System Information ......................126 Date & Time ........................128 LED Colour ......................... 128 Watchdog ...........................

  • Page 9: Chapter 1: Start Here

    PULSAR MEASUREMENT CHAPTER 1: START HERE… Congratulations on your purchase of a Pulsar FlowCERT Lite. This quality system has been developed over many years and represents the latest in high technology ultrasonic level measurement and control. It has been designed to give you years of trouble-free performance, and a few minutes spent reading this operating manual will ensure that your installation is as simple as possible.

  • Page 10: About The Flowcert

    FLOWCERT LITE (UL) INSTRUCTION MANUAL About the FlowCERT The FlowCERT lite open channel flow meter is a state-of-the-art ultrasonic flow metering and control system which provides comprehensive flow monitoring with data logging (optional) and control functions for a complete range of flumes, weirs and channels. Easy calibration via the “Quick Set Up”...

  • Page 11: Functional Description

    PULSAR MEASUREMENT Functional Description FlowCERT Lite sends a transmit pulse to the transducer, which emits an ultrasonic pulse perpendicular to the transducer face, and the returned echo is sent back to the FlowCERT Lite. The time taken to receive the echo is measured and the distance from the transducer face to the surface being monitored is calculated.

  • Page 12: Product Specification

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Product Specification PHYSICAL Wall Mount Outside Dimensions 9.25 x 7.24 x 4.72 inch (235 x 184 x 120 mm) Weight Nominal 2.2lbs (1kg) Enclosure Material/Description Polycarbonate, flame resistant to UL94-5V 10 cable entry knock outs, 1 x M16, 5 x M20 Cable Entry Detail underside, 4 x 18mm dia (PG11) at rear Transducer Cable Extensions...
  • Page 13 Exm version of dB series transducers. REMOTE COMMUNICATOR IP68 Enclosure protection Max and Min Temperature -20 ºC to +70 ºC (-4˚F to +158˚F) Pulsar Measurement operates a policy of constant development and improvement and reserve the right to amend technical details, as necessary.

  • Page 14: Eu Certificate Of Conformity

    FLOWCERT LITE (UL) INSTRUCTION MANUAL EU Certificate of Conformity...

  • Page 15: Chapter 2 Flowcert Lite Installation

    PULSAR MEASUREMENT CHAPTER 2 FLOWCERT LITE INSTALLATION Unpacking Important Information All shipping cartons should be opened carefully. When using a box cutter, do not plunge the blade deeply into the box, as it could potentially cut or scratch equipment components. Carefully remove equipment from each carton, checking it against the packing list before discarding any packing material.

  • Page 16: Safety Symbols

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Safety Symbols Detailed below are descriptions and meanings of safety/warning symbols that are used on the FlowCERT Lite and in this manual. SYMBOL DESCRIPTION DIRECT CURRENT (DC) ALETRNATING CURRENT (AC) PROTECTIVE CONDUCTOR TERMINAL CAUTION (Refer to accompanying Documents)

  • Page 17: Location

    PULSAR MEASUREMENT Location The FlowCERT Lite must be mounted in a non-hazardous (safe) area, and the transducer fitted in the hazardous area When choosing a location to mount the enclosure, bear in mind the following: Ensure that the FlowCERT Lite is installed in a “Safe”, non-hazardous •...

  • Page 18: Dimensions

    FLOWCERT LITE (UL) INSTRUCTION MANUAL There should be no high voltage cables or inverters nearby, • Important Information All electronic products are susceptible to electrostatic shock, so follow proper grounding procedures during installation. Dimensions Wall Mount The dimensions of the wall fixing holes are as shown below: FIXING HOLES 30mm (1.18”)
  • Page 19 PULSAR MEASUREMENT The full dimensions of the enclosure are as shown below: 235mm (9.25”) 1.89” 0.96” 0.96” (24.5mm) (48mm) (24.5mm) 212mm (8.35”) 1.06” 1.10” 1.10” 1.10” 1.18” (27mm) (28mm) (28mm) (28mm) (30mm)

  • Page 20: Cable Entry

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Cable Entry There are 6 cable gland knockouts on the base of the FlowCERT Lite (5 x 20mm (0.79"), 1 x 16mm (0.63")) and 4 on the rear (4 x 18mm dia (0.73")). Select which ones you wish to take out, and remove them by using a circular cutter, such as a tank cutter.

  • Page 21: Transducer

    PULSAR MEASUREMENT Transducer The transducer should be installed, and connected, in accordance with the installation instructions contained in the Transducer User Guide. The entire range of standard dB/dBR transducers is certified for use in hazardous areas and different models are available for use in Zone 1 or Zone 0. DBR16 is also available for use up to Zone 0.
  • Page 22 FLOWCERT LITE (UL) INSTRUCTION MANUAL Relay Outputs The five relays can be programmed for a variety of alarms, pump control, or other process functions. The relay contacts are all rated at 5A at 240V AC. All connections should be such that the short circuit capacity of the circuits to which they are connected, is limited by fuses rated so that they do not exceed the relay rating.
  • Page 23 PULSAR MEASUREMENT 92mm M20 ENTRY IP67 ABS HOUSING 316 STAINLESS STEEL 100mm The Temperature sensor connections are as follows: DESCRIPTION TEMPERATURE SENSOR FLOWCERT LITE Power Supply Terminal 1 Terminal 29 Return Terminal 2 Terminal 28 Temp Source (P852), should be set to option 4 or 5 depending on the sensor range, set 4 for type A and 5 for type B (see above), the range is specified on the label of the sensor.

  • Page 24: Internal Temperature Compensation

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Internal Temperature Compensation The FlowCERT Lite can also be used with a dB3 transducer fitted with twin Pulsar sunshields, allowing a more localised compensation of the measured distance due to changes in temperature Important Information The temperature sensor should be placed close to the point of measurement and out of the effects of direct sunlight.

  • Page 25: Mounting Bracket

    PULSAR MEASUREMENT Mounting Bracket 75 mm 75 mm 22 mm 25 mm 10 mm 30 mm 90 mm 30 mm 30 mm 14 mm 100 mm...
  • Page 26 FLOWCERT LITE (UL) INSTRUCTION MANUAL Temp Source (P852), should be set to option 2, so the temperature from the transducer is always used. The unit is connected as follows: CABLE COLOUR DESCRIPTION TERMINAL NO. Green Screen Power White Signal Black 0 Volts RS232 Serial Interface If required, you can connect to the serial interface, to operate your FlowCERT...

  • Page 27: Voltage Selector And Fuse Location

    PULSAR MEASUREMENT Voltage Selector and Fuse Location The voltage selector switch, and mains fuse is located inside the terminal compartment. This is left of the mains terminals, as illustrated below: Important Information Before applying AC power (mains), make sure the supply is 115V AC.

  • Page 28: Preparation For Operation

    There are no user serviceable parts inside FlowCERT Lite, except the mains fuse. If you experience any problems with the unit, then please contact Pulsar Measurement for advice. To clean the equipment, wipe with a damp cloth. Do not use any solvents on the enclosure.

  • Page 29: Chapter 3 How To Use Your Flowcert Lite

    PULSAR MEASUREMENT CHAPTER 3 HOW TO USE YOUR FLOWCERT LITE Operating the Controls Display The display provides information on the current mode of operation, and status of the remote communication. Whilst in the Run Mode it will display the current level reading and its units of measure, along with status messages with regards to the Transducer, Echo reception and Fail Safe Mode.

  • Page 30: Run Mode

    FLOWCERT LITE (UL) INSTRUCTION MANUAL 3. Auxiliary Display, scrolling twelve-digit display. Run Mode; displays measurement units, status messages on signal and transducer, details of Hot Key function selected. It can be also programmed to provide notification messages on alarms and pumps etc.

  • Page 31: Program Mode

    PULSAR MEASUREMENT Program Mode This mode is used to set up the FlowCERT Lite or change information already set. You must use either the built-in keypad (standard) or, alternatively the unit can be set up with a PC via the RS232 Serial Interface.

  • Page 32: Hot Keys

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Hot Keys There are five hot keys on the keypad, which can be used to quickly access common parameters for viewing only, while in Run Mode. Pressing the hot key once will display the first parameter, then repeated pressing will display the others, then the FlowCERT reverts to Run Mode.

  • Page 33: Menu Keys

    PULSAR MEASUREMENT Menu Keys The menu keys have the following functions: HOT KEY FUNCTION 1) Arrow keys for moving left and right around the menu system. 2) Used in test mode to simulate the level moving up and down. ENTER 1) Used to confirm each action (e.g.

  • Page 34: Using The Menu System

    FLOWCERT LITE (UL) INSTRUCTION MANUAL There are two means of editing parameters, directly or using the menu system. Each is now described. Using the Menu System The menu system has been designed to make the changing of parameters very simple. There are two levels of menu: Main Menu and Sub Menu. On the display, there is a line of text that displays the menu system.

  • Page 35: Directly Editing Parameters

    PULSAR MEASUREMENT Important Information You can tell which part of the menu system you are in, as the up/down level indicators, (arrows) next to the bar graph will indicate as follows: • Top level menu: Down arrow on, to indicate you can move down.

  • Page 36: Test Mode

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Test Mode Test mode is used to simulate the application and confirm that all parameters and relay setpoints have been entered as expected. During simulation, there is a choice of whether the relays will change state (hard simulation) or not (soft simulation), but the LED’s will always change colour as programmed, and the mA output will change in accordance to the chosen mode of operation.

  • Page 37: Using The Serial Interface

    PULSAR MEASUREMENT Using the Serial Interface The RS232 serial interface is used to communicate between the FlowCERT Lite and a PC using the optional Ultra PC and other associated Pulsar software packages, to obtain information such as data logging and view echo traces upload, download and save parameter files.
  • Page 38 /BACKUP2 (take backup of parameters to area 2) /RESTORE1 (restore parameters from area 1) /RESTORE2 (restore parameters from area 2) Please consult Pulsar Measurement or contact your local Pulsar representative for further details and a full list of available commands.

  • Page 39: Parameter Defaults

    PULSAR MEASUREMENT Parameter Defaults Factory Defaults When first installing the FlowCERT, or subsequently moving or using the unit on a new application, before proceeding to program the unit for its intended application it is recommended that you ensure that all parameters are at their default values by completing a Factory Default P930, as described in the relevant unit type parameter guide.

  • Page 40: Chapter 4 Quick Setup Guide

    FLOWCERT LITE (UL) INSTRUCTION MANUAL CHAPTER 4 QUICK SETUP GUIDE This quick set-up guide shows you how to get up and running within a few minutes of installing your FlowCERT Lite. Enter Program Mode First you need to go from run mode into program mode. Assuming the passcode is the default 1997, then you should enter the following on the keypad: ENTER...

  • Page 41: Choose Your Application

    PULSAR MEASUREMENT Choose Your Application There are six categories of Primary Measuring Device, which are all described in this chapter. They are Exponential, BS3860 flumes, BS3860 weirs, Area/Velocity, Special and Universal. Calculations for flow can be performed using absolute or ratiometric calculations.
  • Page 42 FLOWCERT LITE (UL) INSTRUCTION MANUAL For devices which do not match any of the above devices the application can be setup using a Universal flow calculation, to select this option choose 6. You then need to select the PMD for your application from the following available options: Linear flow or Curved flow.

  • Page 43: Quick Setup

    PULSAR MEASUREMENT Quick Setup Quick Setup PMD Type 0 = Off (No calculation) 1 = Exponential 2 = BS3680 Flumes 3 = BS3680 Weirs 4 = Not Available 5 = Special 6 = Universal Exponent BS3680 Flumes BS3680 Weirs 1 = Rectangular...
  • Page 44 FLOWCERT LITE (UL) INSTRUCTION MANUAL Wait…. PARAMETER DEFAULT DESCRIPTION P101 Transducer 1 = dB3 Select transducer to be used. Units of flow on display and used for calculations. P706 1=litres 2=Cubic metres 6 = Mil USG Volume Units 3=Cubic feet 4=UK gallons 5=US gallons 6=Mil.
  • Page 45 PULSAR MEASUREMENT PARAMETER DEFAULT DESCRIPTION Sets the factor by which the calculated volume will be divided or multiplied by before it is displayed. P823 1 = /1000 2 = /100 1 = /1000 Totaliser 3 = /10 4 = *1...
  • Page 46 FLOWCERT LITE (UL) INSTRUCTION MANUAL For More Options Hit Enter…. PARAMETER DEFAULT DESCRIPTION P213 / P214 depends on Relay 1 ON/OFF Set required Alarm Setpoints. application setpoints P223 / P224 depends on Relay 2 ON/OFF Set required Alarm Setpoints. application setpoints P233 / P234 depends on...

  • Page 47: Exponential Devices (P700 = 1)

    PULSAR MEASUREMENT Exponential Devices (P700 = 1) If the primary measuring device is a simple exponential device, then an exponent value is required. The FlowCERT will automatically enter the exponent value for the device chosen as detailed in the table below.

  • Page 48: Point Of Measurement

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Point of Measurement The transducer must be above the maximum head P704 by at least the near blanking distance P107. For Suppressed/Contracted Rectangular, Trapezoidal and V-notch, weirs, the head is measured upstream at a minimum distance of 3 times maximum head from the weir plate to ensure the surface of the liquid is not affected by turbulence or drawdown.
  • Page 49 PULSAR MEASUREMENT For a Leopold Lagco flume the head is measured at a point upstream of the beginning of the converging section as detailed in the table below. ( DRWG 4 FLUME SIZE POINT OF MEASUREMENT inches inches 100 - 305 4 –...

  • Page 50: Calculations

    FLOWCERT LITE (UL) INSTRUCTION MANUAL ensure that it is chosen such that the surface of the liquid is not effected by turbulence or drawdown. Calculations Absolute If the flow calculation is to be absolute P702 = 1 the flow will be calculated using the formula (s) as follows: EXPONENT TYPE FORMULA...
  • Page 51 PULSAR MEASUREMENT EXPONENT TYPE FORMULA EXPONENT K FACTOR Q=KD Automatically 0.0953 calculated, Where: 1.55 dependent on Q =Flow Leopold Lagco Automatically measurement, K=K factor Flume selected by the flow and time D=pipe diameter FlowCERT units chosen h=head *=exponent Q=Kh Automatically...

  • Page 52: Example 1 V-Notch Weir

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Example 1 V-Notch Weir Transducer mounted Min. blanking distance (P107) above max. head Minimum 3 x hmax DRWG. 5 TYPICAL SIMPLE EXPONENTIAL DEVICE In this example it is required to calculate the flow through a Simple Exponential Device, which on this occasion is a V-Notch Weir.
  • Page 53 PULSAR MEASUREMENT To program the FlowCERT Lite for Example 1 V-Notch Weir by using the Quick Setup menu proceed as follows. If required access the Program Mode , key in the passcode 1997 and press ENTER. Using the ‘right’ arrow key, go to the Quick Setup menu press ENTER and as prompted, by the questions, select the relevant option and press ENTER.

  • Page 54: Bs3680 Flumes (P700 = 2)

    FLOWCERT LITE (UL) INSTRUCTION MANUAL BS3680 Flumes (P700 = 2) Point of Measurement The transducer must be above the maximum head P704 by at least the near blanking distance P107. For a Rectangular and U-throated flume, the head is measured at 3 to 4 times the maximum head upstream from the beginning of the converging section, to ensure the surface of the liquid is not affected by turbulence.

  • Page 55: Calculations

    PULSAR MEASUREMENT Calculations Rectangular Flume Absolute If the flow calculation is to be absolute P702 = 1 the flow will be calculated using the formula: q = (2/3) Where: q = flowrate gn = gravitational acceleration (nominal value = 980.66 cm/s...

  • Page 56: U-Throated Flume

    FLOWCERT LITE (UL) INSTRUCTION MANUAL U-Throated Flume Absolute If the flow calculation is to be absolute P702 = 1 the flow will be calculated using the formula: q = (2/3) Where: q = flowrate = gravitational acceleration (nominal value = 980.66 cm/s h = head = shape coefficient calculated by FlowCERT Lite (P724) = velocity coefficient calculated by FlowCERT Lite (P721)

  • Page 57: Example 2 Bs3680 U-Throated Flume

    PULSAR MEASUREMENT Example 2 BS3680 U-Throated Flume In this example, it is required to calculate to BS3680 the flow through a U- Throated Flume without any hump. Absolute calculation will be used, and there is a requirement for an alarm to indicate a low flow condition which will be set to relay 1.
  • Page 58 FLOWCERT LITE (UL) INSTRUCTION MANUAL To program the FlowCERT Lite for Example 2 BS3680 U-Throated Flume by using the Quick Setup menu proceed as follows. If required access the Program Mode, key in the passcode 1997 and press ENTER. Using the ‘right’...

  • Page 59: Bs3680 Weirs (P700 = 3)

    PULSAR MEASUREMENT BS3680 Weirs (P700 = 3) Point of Measurement The transducer must be above the maximum head P704 by at least the near blanking distance P107. For a Rectangular and V-notch weir, the head is measured at a point 4 to 5 times the maximum head upstream from the weir plate, to ensure the surface of the liquid isn’t affected by turbulence or drawdown.

  • Page 60: Bs3680 V-Notch Weir

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Ratiometric If the flow calculation is to be ratiometric P702 = 2 the flow will be calculated using the formula: q= q ecal ecal Where: q = flowrate = flowrate at maximum head P705 Ce = discharge coefficient calculated by FlowCERT (P723) = discharge coefficient at maximum head he = effective head = effective head at maximum head...

  • Page 61: Example 3 Bs3680 Rectangular Weir

    PULSAR MEASUREMENT Example 3 BS3680 Rectangular Weir In this example it is required to calculate to the flow through a BS3680 Rectangular weir. Absolute calculation will be used, and there is a requirement for an alarm to indicate a high flow condition to be set to relay 3.
  • Page 62 FLOWCERT LITE (UL) INSTRUCTION MANUAL To program the FlowCERT Lite for Example 3 BS3680 Weir by using the Quick Setup menu proceed as follows. If required access the Program Mode, key in the passcode 1997 and press ENTER. Using the ‘right’ arrow key, go to the Quick Setup menu press ENTER and as prompted, select the relevant option and press ENTER.

  • Page 63: Bs3680 Rectangular Broad Crested Weir

    PULSAR MEASUREMENT BS3680 Rectangular Broad Crested Weir Point of Measurement The transducer must be above the maximum head P704 by at least the near blanking distance P107. The head is measured at a point 3 to 4 times the maximum head upstream from the weir crest, to ensure the surface of the liquid is not affected by turbulence or drawdown.
  • Page 64 FLOWCERT LITE (UL) INSTRUCTION MANUAL Ratiometric If the flow calculation is to be ratiometric P702 = 2 the flow will be calculated using the formula: q= q ecal ecal Where: = flowrate = flowrate at maximum head P705 Ce = discharge coefficient calculated by FlowCERT (P723) = discharge coefficient at maximum head he = effective head = effective head at maximum head...

  • Page 65: Special Devices (P700 =5)

    PULSAR MEASUREMENT Special Devices (P700 =5) Point of Measurement The transducer must be above the maximum head P704 by at least the near blanking distance P107. In the case of a Palmer Bowlus flume the point of head measurement should be half the value of Dim “A” P710 upstream of the device.

  • Page 66: Calculations

    FLOWCERT LITE (UL) INSTRUCTION MANUAL V-notch angle weirs, the head is measured upstream of the weir plate at a minimum distance of 3 times maximum head to ensure the surface of the liquid is not affected by turbulence or drawdown. See Exponential devices, above, for further details.

  • Page 67: Universal Calculations (P700=6)

    PULSAR MEASUREMENT Ratiometric If the flow calculation is to be ratiometric P702 = 2 the flow will be calculated using the formula: q= q (h+kh/h +kh) Where: q = flowrate = flowrate at maximum head P705 h = head kh = compensated head...

  • Page 68: Chapter 5 Parameter Guide

    FLOWCERT LITE (UL) INSTRUCTION MANUAL CHAPTER 5 PARAMETER GUIDE This chapter describes all the parameters in your FlowCERT, as they appear in the menu system. Menu System Shown below is a set of charts to show you how all the various functions and features can be found using the menu system.

  • Page 69: Application Menu

    PULSAR MEASUREMENT Application Menu Operation Distances P100 P104 Mode Measurement Units P101 Transducer P105 Empty Level P102 Material P106 Span P107 Near Blanking P108 Far Blanking...

  • Page 70: Relays Menu

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Relays Menu Relay 1 Relay 2 Relay 3 Relay 4 Relay 5 P210 P220 P230 P240 P250 Type Type Type Type Type P211 P231 P241 P251 P221 Function Function Function Function Function P232 P252 P212 P222 P242 Alarm ID...

  • Page 71: Data Logs Menu

    PULSAR MEASUREMENT Data Logs Menu Totaliser Temperature Audit P580 P460 Min. Temp Total Date 1 P581 P461 Min. Temp. Totaliser 1 Date P462, 464, P582 466, 468, 470, Min. Temp. 472, 474, 476 Time Total Dates 2 to 9 P463, 465,...

  • Page 72: Ocm Menu

    FLOWCERT LITE (UL) INSTRUCTION MANUAL OCM Menu Break Average Dimensions Calcs Tables Setup Flow Points P700 PMD P710 P730 P796 P863 P720 Type Dimension Head Reset Average Area “A” Flow Bkpt. 1 Bkpts. P701 P721 Primary P711 P864 P731 P797 Calc.

  • Page 73: Display Menu

    PULSAR MEASUREMENT Display Menu Options Fail Safe Auxiliary Bargraph Totaliser P800 P808 P810 P820 P829 Display Fail Mode Units Totaliser Bargraph Units P809 P811 P821 Fail Time Alarms P801 Totaliser Decimal Places P812 Pumps P802 P822 Display Totaliser P813 Offset...

  • Page 74: Compensation

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Compensation Offset Temperature Velocity P851 P852 P860 Measurement Temperature Sound Offset Source Velocity P854 Fixed Temperature Stability Menu Damping Indicator Rate Filters P870 P872 P874 P880 Fill Fill Rate Update Gate Mode Damping Indicator P875 P881 P871 P873...

  • Page 75: Echo Processing Menu

    PULSAR MEASUREMENT Echo Processing Menu Xdr. 1 Status P900 Xdr. 1 Status P901 Echo Confidence P902 Echo Strength P903 Average Noise P904 Peak Noise P905 Sensitivity P906 Side Clearance...

  • Page 76: System Menu

    FLOWCERT LITE (UL) INSTRUCTION MANUAL System Menu Date System Daylight Passcode Backup & Info Colour Saving Time P926 P921 P931 P925 P935 P970 Software Enable Code Parameter Date Revision Backup Colour Enable P922 P932 P927 Passcode Time P936 P971 Hardware Alarm Revision Colour...

  • Page 77: Device Comm Menu

    PULSAR MEASUREMENT Device Comm Menu Remote RS232 RS485 Setup Alarm Setup (Optional) If Comms. If Comms. P144 Type is Comms Baud Type is Call Type Modbus Profibus P130 P145 Device Tel. No. 1 Mode P131 P146 Protocol Tel. No. 2...

  • Page 78: Test Menu

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Test Menu Simulation Hardware P980 P990 Simulate Self-Test P991 P981 Hard Test Increment P992 P982 mA Out Test Rate P993 P983 mA In Test Start Level P994 Xdr. Test P984 Inc. Change...

  • Page 79: Chapter 6 Parameter Listing And Description

    PULSAR MEASUREMENT CHAPTER 6 PARAMETER LISTING AND DESCRIPTION Application Parameters Operation P100 Mode of Operation This parameter sets the mode of operation, when in run mode, and can be set to one of the following: OPTION DESCRIPTION Display shows the distance from the transducer face 1 = Distance (Default) to the surface of the material measured.

  • Page 80: Dimensions

    FLOWCERT LITE (UL) INSTRUCTION MANUAL P102 Material This parameter should be set to the type of material being monitored. OPTION DESCRIPTION 1 = Liquid (Default) Used for liquids and flat solid materials. 2 = Solid Used for sold material that is heaped or at an angle. Use for applications within a closed tank or where a 3 = Closed Tank secondary echo response may become focused to...
  • Page 81 PULSAR MEASUREMENT Important Notice When using the dB Mach 3 the empty distance is measured from the end of the horn to the empty point in P104 Measurement Units. P106 Span This parameter should be set to the maximum distance from the Empty Level (P105) to the maximum material level.

  • Page 82: Relay Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Relay Parameters All relay related parameters are prefixed with a 2**. The second digit of the three-figure parameter number denotes the relay number as follows: 21* parameters for Relay 1 22* parameters for Relay 2 23* parameters for Relay 3 24* parameters for Relay 4 25* parameters for Relay 5...

  • Page 83: Alarms

    PULSAR MEASUREMENT Alarms P210, 220, 230, 240, 250 = 1 (Alarm) The second parameter for each relay determines the function of the alarm. P211, 221, 231, 241, 251 – Relay Function OPTION DESCRIPTION 0 = Off (Default) Relay will not operate.
  • Page 84 FLOWCERT LITE (UL) INSTRUCTION MANUAL The third parameter for each relay determines the Alarm ID for the relay you wish to set. P212, 222, 232, 242, 252 – Relay Alarm ID When P211, 221, 231, 241, 251 =4 (Loss of Echo) or 5 (Loss of Clock) This parameter has no function and will not be displayed.
  • Page 85 PULSAR MEASUREMENT OPTION DESCRIPTION SETPOINTS Relay Setpoints, P213, 223, 233 and P214, 224, Relay goes “ON” if value is 234 can be set in any 6 = In bounds inside the zone between order as the unit ‘knows’ the two setpoints.
  • Page 86 FLOWCERT LITE (UL) INSTRUCTION MANUAL Important Notice Setpoints are entered in values according to the function selected. Level - entered in Display Units or % of span as referenced to Empty Level. Rate of Change - entered in Display Units per minute or % of span per minute. For an alarm on an increasing level enter setpoints as a positive value, for an alarm on a decreasing level enter setpoints as a negative value.

  • Page 87: Pumps

    PULSAR MEASUREMENT Pumps P210, 220, 230, 240, 250 = 2 (Pump) When a relay is being used for a pump function, the second parameter determines the pump duty that will be used to determine the operating cycle. P211, 221, 231, 241, 251 – Relay Function...
  • Page 88 FLOWCERT LITE (UL) INSTRUCTION MANUAL PUMP DUTY DESCRIPTION First pump comes on, if it cannot cope, it goes off and next pump comes on (duty backup). This continues until the last pump comes on and if it cannot cope the first pump comes back on to assist the last pump (duty assist) if the level 5 = Duty backup and assist continues to rise all other pumps will come on...
  • Page 89 PULSAR MEASUREMENT PUMP DUTY DESCRIPTION The first pump switched on is the first pump to 8 = First On First Off be switched off, etc. regardless of the set points, Alternate duty assist so the setpoints are dynamically changed to enable this.
  • Page 90 FLOWCERT LITE (UL) INSTRUCTION MANUAL The fourth parameter and the fifth parameter for each relay set the pump “ON” and “OFF” points, which are entered in Measurement units P104. For pump down the “ON” is set higher than “OFF”. For pump up then “ON” is set lower than “OFF”.

  • Page 91: Control

    PULSAR MEASUREMENT Control P210, 220, 230, 240, 250 = 3 (Control) When a relay is being set up as a control relay, the second parameter that will be displayed in the menu determines its function. P211, 221, 231, 241, 251 – Relay Function...
  • Page 92 FLOWCERT LITE (UL) INSTRUCTION MANUAL The third parameter for each relay determines the assignment or condition of the relay, where required. P212, 222, 232, 242, 252 – Relay Alarm ID/Pump Group P211, 221, 231, 241, 251 = 2 (Step Time) If the relay is selected for Step Time, then this parameter is used to assign the relay to the 0 = Open condition (increase level) or 1 = Close condition (decrease level).

  • Page 93: Miscellaneous

    PULSAR MEASUREMENT P215, 225, 235, 245, 255 – Relay Setpoint 3 P211, 221, 231, 241, 251 = 2 (Step Time) This parameter is used to determine the Limit Time between each Drive Period. Relay Setpoints are entered in Minutes, during which time the relay will remain ‘OFF’.
  • Page 94 FLOWCERT LITE (UL) INSTRUCTION MANUAL The third parameter has no function when miscellaneous relay is chosen and will not be displayed. The fourth parameter, and fifth parameter, are set to determine the switch points, “ON” and “OFF” for the relay. See miscellaneous function table (P211, 221, 231, 241, 251) for further information.

  • Page 95: Common Relay Parameters

    PULSAR MEASUREMENT Common Relay parameters P216, 226, 236, 246, 256 – Relay Allocation This parameter determines which input the relay will act on. You can set it to the transducer (default), or the optional auxiliary (current) input, or an average of the two. In most cases, this will not need to be changed from the default.

  • Page 96: Data Log Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Data Log parameters The data log parameters contain the following information: Totaliser Audits P460 to P479 Total Audits Parameters P460-P479 show the date and total flow for the last ten days, the first on the list are the most recent and last ones are the oldest. When all ten total audits are full the oldest is pushed out and all totals increment through to allow the new days total to be registered in the first day’s total audit parameter allocation.
  • Page 97 PULSAR MEASUREMENT P584 Maximum Temperature Date This parameter displays the date when the maximum temperature was recorded. P585 Maximum Temperature Time This parameter displays the time when the maximum temperature was recorded. P585 Current Temperature This parameter displays the current temperature.

  • Page 98: Ocm Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL OCM Parameters PMD Setup P700 Primary Measuring Device Type This parameter is used to select the type of Primary Measuring Device and enable additional parameters required to calculate the flow of the particular Primary Measuring Device chosen (P701). Options are as follows: 0 = Off (Default) 1 = Exponent 2 = BS3680 Flume...
  • Page 99 PULSAR MEASUREMENT If P700 = 3 BS3680 Weir 1 = Rectangular 2 = V-Notch Full 90 degree (full 90°) 3 = V-Notch 53 degree 8’ (half 90°) 4 = V-Notch 28 degree 4’ (quarter 90°) 5 = Broad Crested (Rectangular) Weir...
  • Page 100 FLOWCERT LITE (UL) INSTRUCTION MANUAL P704 Maximum Head Enter the head value that represents maximum flow, enter in Measurement Units P104. Note any change to the value of this parameter will be reflected in P106 (Span) and vice versa. P705 Maximum Flow When P702 = 2 Ratiometric enter the flow rate value that occurs at maximum head (P704), enter in volume units (P706) per time units (P707).

  • Page 101: Dimensions

    PULSAR MEASUREMENT P707 Time Units Select the Time Units to be used with the Volume Units to determine the desired flow rate from the options below: OPTION DESCRIPTION Flowrate will be calculated and displayed in 1 = per Second Volume units/Second...
  • Page 102 FLOWCERT LITE (UL) INSTRUCTION MANUAL Dimensions table P710 P711 P712 P713 PRIMARY MEASURING DEVICE Dim ‘A’ Dim ‘B’ Dim ‘C’ DIM ‘B’ P700 = 1 Exponent Crest P701 = 1 Supp. Rectangular Weir Width Required Required Required P702 = 1 Absolute P700 = 1 Exponent Crest P701 = 2 Trapezoidal...
  • Page 103 PULSAR MEASUREMENT P710 P711 P712 P713 PRIMARY MEASURING DEVICE DIM ‘A’ DIM ‘B’ DIM ‘C’ DIM ‘B’ P700 = 1 Exponent Crest P701 = 1 Supp. Rectangular Weir Width Required Required Required P702 = 1 Absolute P700 = 1 Exponent...
  • Page 104 FLOWCERT LITE (UL) INSTRUCTION MANUAL P710 P711 P712 P713 PRIMARY MEASURING DEVICE Dim ‘A’ Dim ‘B’ Dim ‘C’ DIM ‘B’ Flume P700 = 5 Special Size Required Required Required P701 = 1 Palmer Bowlus Flume P700 = 5 Special Size Required Required Required...
  • Page 105 PULSAR MEASUREMENT P714 Roughness Coefficient (Ks) When P700 = 2, BS3680 Flume this parameter is used to enter the roughness coefficient of the flume in millimetres, see table below for further details. Value of Ks Good Normal Surface Classification Example Value Plastics etc.
  • Page 106 FLOWCERT LITE (UL) INSTRUCTION MANUAL P717 Exponent This parameter is used to enter the exponent value when: P700 PMD Type =1 Exponent and P701 Primary MD = 7 others. P718 K Factor This parameter is used to enter the K Factor when: P700 PMD Type = 1 Exponent and P702 Calculation = 1 Absolute see table below for further details.

  • Page 107: Calculations

    PULSAR MEASUREMENT Calculations Parameters P720 to P725 are values calculated by the unit, dependent on application, and are “Read Only”, therefore have no default values. P720 Area Displays the calculated value of the area when, P700 = 2 BS3690 flumes and P700 = 4 Area Velocity.

  • Page 108: Tables

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Tables P796 Reset Breakpoints This parameter allows the resetting, to the default value, of all previously set breakpoints (P730-793), without having to access them individually. When it is necessary to reset or amend particular breakpoints this can be achieved by directly accessing the desired parameter (P730-793) and changing as required.

  • Page 109: Display Parameters

    PULSAR MEASUREMENT Display Parameters Options P800 Display Units This parameter determines whether the reading displayed is in Measurement Units (P104), or as a percentage of span. OPTION DESCRIPTION Display is in selected unit’s dependent in Mode 1 = Measured (Default)

  • Page 110: Failsafe

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Failsafe P808 Failsafe Mode By default, if a fail-safe condition occurs, then the display, relays and the mA output are held at their last known values until a valid reading is obtained. If required, then you can change this so that the unit goes to high (100% of span), or low (empty) as follows: OPTION DESCRIPTION...

  • Page 111: Auxiliary

    PULSAR MEASUREMENT Auxiliary P810 Units This parameter determines whether the Measurement units (P104) are displayed on the auxiliary line of the display in run mode. OPTION DESCRIPTION 0 = No Measurement units will not be displayed 1 = Yes (Default)
  • Page 112 FLOWCERT LITE (UL) INSTRUCTION MANUAL P813 Control Messages This parameter determines whether notification messages are displayed on the auxiliary line of the display in run mode when a control relay is switched on or off. The message is in the form “Time ON”. OPTION DESCRIPTION 0 = No (Default)

  • Page 113: Totaliser

    PULSAR MEASUREMENT Totaliser P820 Totaliser Displays the current value of the, non-resettable totaliser. During run mode this totaliser can be viewed via the “Totaliser” hot key, . Unlike the resettable totaliser this totaliser cannot be reset whilst in run mode, it can however be reset whilst in program mode by accessing P820 Totaliser and entering zero.
  • Page 114 FLOWCERT LITE (UL) INSTRUCTION MANUAL P823 Totaliser Multiplication Factor This parameter determines the number of decimal places in the totaliser during run mode. It can be set between 1 and 3. Default = 2 Use this parameter if the totaliser increments by to large or small amount, enter the factor by which the actual flow rate is multiplied by before incrementing the totaliser.

  • Page 115: Bargraph

    PULSAR MEASUREMENT Bargraph P829 Bargraph By default, the Bargraph will be representative of the reading obtained, as determined by the Mode P100. The options, dependant on the value entered for Mode P100, are as follows: OPTION DESCRIPTION 1 = Level...

  • Page 116: Operation

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Operation P831 mA Mode This parameter determines how the mA Output relates to what is measured. By default, it operates exactly the same as the display (P100), but it can be set to operate as follows: OPTION DESCRIPTION 0 = Default...

  • Page 117: Limits

    PULSAR MEASUREMENT Limits P836 mA Low Limit This parameter sets the lowest level that the mA output will drop to, the default is 0mA, but you can override this if the device you connect to cannot for example accept less than 2mA, yet you want to use the 0-20mA range.

  • Page 118: Failsafe

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Failsafe P840 mA Failsafe Mode This parameter determines what happens to the mA output in the event of the unit going into fail-safe mode. The default is to do the same as the system fail-safe (P808), but this can be overridden to force the mA output to an independent fail-safe mode as follows: OPTION DESCRIPTION...

  • Page 119: Temperature

    PULSAR MEASUREMENT Temperature P852 Temperature Source This parameter determines the source of the temperature measurement. By default, it is set to automatic (P852=1), which will automatically detect if a temperature sensor is available from the transducer. If for any reason, no temperature input is received, then the Fixed Temp value is used, as set by P854.

  • Page 120: Stability Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL The following parameter can be used to re-calibrate the Sound Velocity (P860) when the acoustic beam from the transducer is travelling through mediums other than air or when there are variations of temperature between the transducer face and the material level. To obtain best results calibration should be carried out when the level is as near empty as possible and when any vapour present has stabilized.

  • Page 121: Indicator

    PULSAR MEASUREMENT Indicator P872 Fill Indicator This parameter determines the rate at which the LCD fill indicator activates. Default = 32.80 feet/min. P873 Empty Indicator This parameter determines the rate at which the LCD empty indicator activates. 32.80 feet/min. Rate P874 Rate Update This parameter determines the way in which the rate is calculated.

  • Page 122: Filters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Filters The following three parameters can be used to filter out unwanted changes of level caused by a ‘rippled’ or agitated surface. P880 Gate Mode This parameter determines the operation of the gate, which is established around the processed echo and is used to track the echoes movement and update the display.

  • Page 123: Echo Processing Parameters

    PULSAR MEASUREMENT Echo Processing Parameters Transducer Status P900 Transducer Status This parameter shows the current state of the transducer. The value means the following: OPTION DESCRIPTION 0= OK Transducer working correctly. Transducer is not being used (mA input is being...
  • Page 124 FLOWCERT LITE (UL) INSTRUCTION MANUAL P905 Sensitivity This parameter determines the sensitivity of the unit. Please consult Pulsar for further information and assistance on changing the value of this parameter. P906 Side Clearance This parameter is used to set the distance by which the DATEM trace will “stand-off”...
  • Page 125 PULSAR MEASUREMENT P021 Set Distance Allows the user or service personnel to determine which echo is to be displayed. On start-up, if the unit displays an incorrect reading then simply enter the distance from the transducer to the required level and, if an echo is...

  • Page 126: System Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL System Parameters Passcode P921 Enable Code Enables the passcode (P922), which means the passcode must be entered to go into program mode. If disabled (set to 0), then no passcode is required, and ENTER is used to enter program mode. Default =1 (Enabled) P922 Passcode This is the passcode that must be used to enter program mode.
  • Page 127 PULSAR MEASUREMENT P927 Hardware Revision This parameter will display the current hardware revision. It is read only and cannot be changed. P928 Serial Number This parameter will display the serial number of the unit. It is read only and cannot be changed.

  • Page 128: Date & Time

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Date & Time The date and time is used, to control specific relay functions and date stamp certain events that are contained in the Data Logs. It is also used in conjunction with the system watchdog that keeps an eye on the times the unit has started.

  • Page 129: Watchdog

    PULSAR MEASUREMENT P937 Pump Relay Colour This parameter selects the colour that a pump relay should be when it is in its “ON” state. The default is 2 = green, but can be changed to ‘no colour’, red or yellow.

  • Page 130: Daylight Saving Time

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Daylight Saving Time Important Notice In order to ensure the correct operation of Daylight Saving Time P932 Time should be checked, and adjusted if necessary, to ensure that it is set for the current valid time. P970 DST Enable When Enabled (set to 1) the internal clock will be automatically adjusted to compensate for the difference between standard time and Daylight-Saving...
  • Page 131 PULSAR MEASUREMENT P974 Start Week This parameter will determine the week of the month (P975) in which Daylight-Saving Time is to start. OPTION DESCRIPTION DST will start on day (P973) in the first week 1= Week 1 (P974) of the month (P975).
  • Page 132 FLOWCERT LITE (UL) INSTRUCTION MANUAL P976 DST End Time This parameter is used to set the time of day at which Daylight-Saving Time will end, the time is entered in the format HH: MM (24-hour format). Default = 02:00. P977 DST End Day Use this parameter to enter the day of the week (P974) that Daylight Saving Time is to end.

  • Page 133: Device Comm

    PULSAR MEASUREMENT P979 End Month This parameter is used to select the month, in which Daylight-Saving Time will end. OPTION DESCRIPTION 1= January DST will end during the month of January 2= February DST will end during the month of February...

  • Page 134: Remote Alarm

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Remote Alarm When a Modem is connected, via the RS232 port, (Consult Pulsar or your local distributor for further details), the following parameters are used to set up the FlowCERT so that when the level reaches a specific alarm point, as determined by the setting of the relay(s) the unit will dial and connect to a remote telephone number to provide details of the event.
  • Page 135 PULSAR MEASUREMENT P146 Tel. No2 This parameter is used to enter the next 6 digits, following the ‘0’s, of the telephone number to be dialled. If there are less than 6 digits following the ‘0’s, then just enter the digits required, if there are more than 6 digits following the ‘0’s then enter the first 6 digits and then proceed to P147 to...

  • Page 136: Test Parameters

    FLOWCERT LITE (UL) INSTRUCTION MANUAL Test Parameters Simulation P980 Simulate Test mode is used to simulate the application and confirm that all parameters and relay setpoints have been entered as expected. During simulation, there is a choice of whether the relays will change state (hard simulation) or not (soft simulation), but the LED’s will always change colour as programmed, and the current output will change.

  • Page 137: Hardware

    PULSAR MEASUREMENT P981 Increment By default, simulation mode will move by 0.1m steps in manual simulation and by 0.1m/min in automatic simulation. Altering the increment can change this value. P982 Rate In automatic mode, the rate at which the level will move up and down, is determined by distance, P981 Increment and the time, P982 Rate which by default is set to 1min and can be changed as required.
  • Page 138 FLOWCERT LITE (UL) INSTRUCTION MANUAL P991 Hard Test When this parameter is selected, the unit will test the following in turn. LED’s. Watch them change colour as shown on the display, and • press, ENTER, if they operated as shown. Relays.
  • Page 139 PULSAR MEASUREMENT P996 Relay Test Press a numeric key corresponding to the number of the relay you wish to test, and the relay will change state each time the key is pressed. If you press any other key, other than a valid relay number, then the test will end.

  • Page 140: Chapter 7 Troubleshooting

    FLOWCERT LITE (UL) INSTRUCTION MANUAL CHAPTER 7 TROUBLESHOOTING This section describes many common symptoms, with suggestions as to what to do. If the issue persists, please contact your local Pulsar distributor. SYMPTOM WHAT TO DO Check power supply, voltage selector Display blank, transducer not firing.

  • Page 141: Chapter 8 Disposal

    PULSAR MEASUREMENT CHAPTER 8 DISPOSAL Incorrect disposal can cause adverse effects to the environment. Dispose of the device components and packaging material in accordance with regional environmental regulations including regulations for electrical \ electronic products. Transducers Remove power, disconnect the Transducer, cut off the electrical cable and dispose of cable and Transducer in accordance with regional environmental regulations for electrical \ electronic products.

  • Page 142: Notes

    FLOWCERT LITE (UL) INSTRUCTION MANUAL NOTES...
  • Page 143 S U P P O R T @ P U L S A R M E A S U R E M E N T . C O M Copyright © 2020 Pulsar Measurement Ltd. Registered Address: 1 Chamberlain Square CS, Birmingham B3 3AX Registered No.: 3345604 England &...

This manual is also suitable for:

Flowcert

Table of Contents
