TBOS-II
Quick Reference Guide

Advertisement

loading

Related Manuals for Rain Bird TBOS-II

Summary of Contents for Rain Bird TBOS-II

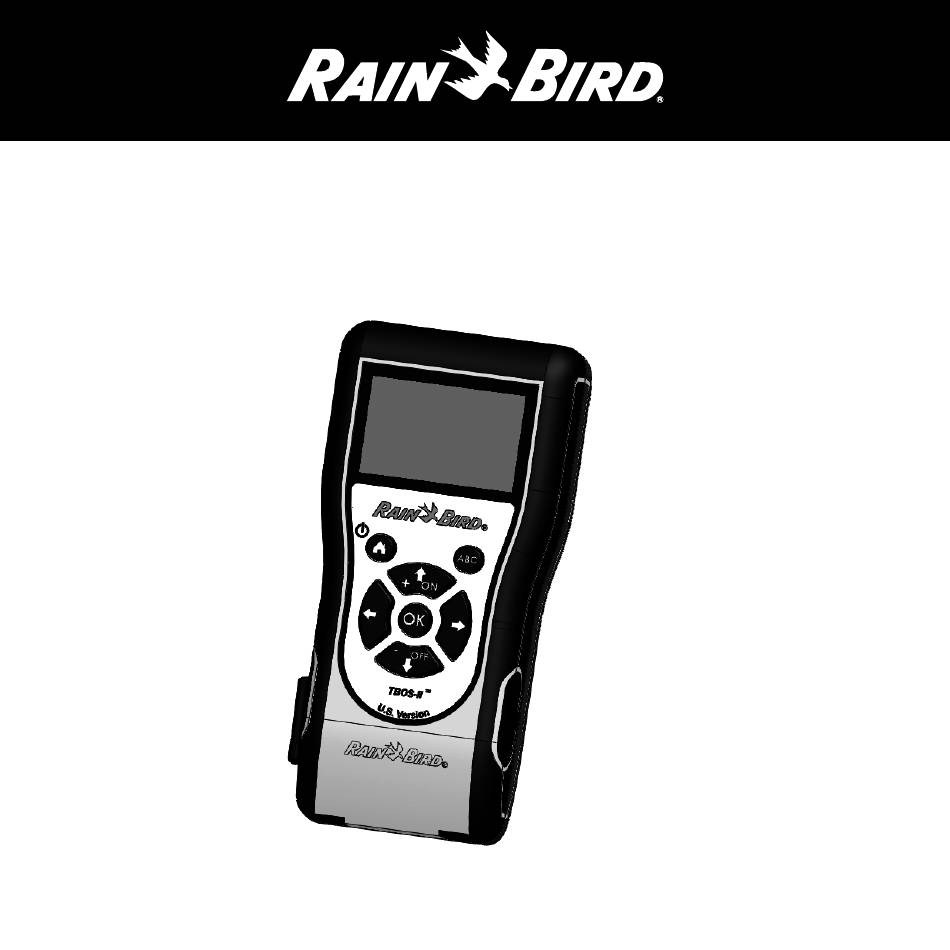

  • Page 1 TBOS-II Quick Reference Guide...

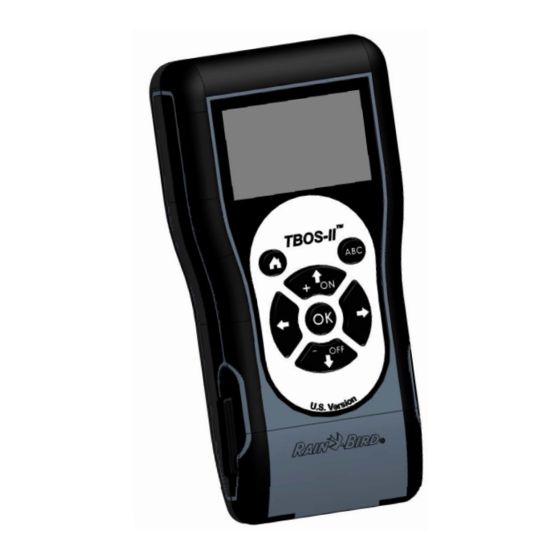

  • Page 2: Keypad Functions

    TBOS-II™ System requires TBOS latching solenoids (Rain Bird P/N LU3100) mounted on all valves connected to control modules. Keypad Functions • Long press (3 sec) to wake up the field transmitter. • Navigation between programs A/B and C. • Return to main screen.
  • Page 3 TBOS-II™ field transmitter initial settings - First use of the field transmitter As soon as it is switched on for the first time, the TBOS-II™ field transmitter asks you to choose from the following: The main screen is then displayed, showing the date, time, battery charge level and the name of the field transmitter (the name can be changed).
  • Page 4  ➀ ➁ ➂ Manual irrigation Transmit Programs Water Budget   ➀ Manual irrigation Cancel Irrigation Watering Days WB per program   ➁ Programs Start valve Start Times WB per month  ➂ Start program Water Budget Valve run times ...
  • Page 5   Program  Check  ➄ ➃ ➅ ➆ TBOS Backup Clear Programs Template programs Review programs Save Save Individual pgm Program run times Restore Manual recall All programs Valve run times Automatic Recall Restore default settings Sensor Settings About...

  • Page 6: Infra-Red Mode

    INFRA-RED MODE Connect the 9V battery in the TBOS-II Control Module. Properly fasten the rubber band to ensure a good connection. Infra-red Connection to a TBOS™ or TBOS-II™ controller Connect the transmitter’s infra-red cord to the controller’s socket. Turn on the Field Transmitter by pressing 3 seconds.

  • Page 7: Programming Functions

    • Programming Functions: Watering Days, Start Times, Valve Run Times. • Water management functions: Water Budget per program, monthly Seasonal Adjustment, Rain Delay (from 1 to 14 days) • Program review function. • P rogram Template functions: up to 3 programs can be saved in the TBOS-II™ Field Transmitter in order to be transmit later to in-field Control Modules. • B ackup/Recall program functions: up to 3 programs can be saved in the Control Module in addition to the current program – You can manually recall any of them whenever you want or automatically recall one within a delay from 1 to 90 days.
  • Page 8 RAIN BIRD CORPORATION Rain Bird Europe SNC 6991 E.Southpoint Road 900, rue Ampère, B.P. 72000 Tucson, AZ 85756 13792 Aix en Provence Cedex 3 FRANCE www.rainbird.com www.rainbird.eu ® Registered trademark of Rain Bird Sprinkler Mfg.Corp. RBE12TE32 © 2012 Rain Bird Corporation. 11/12...
