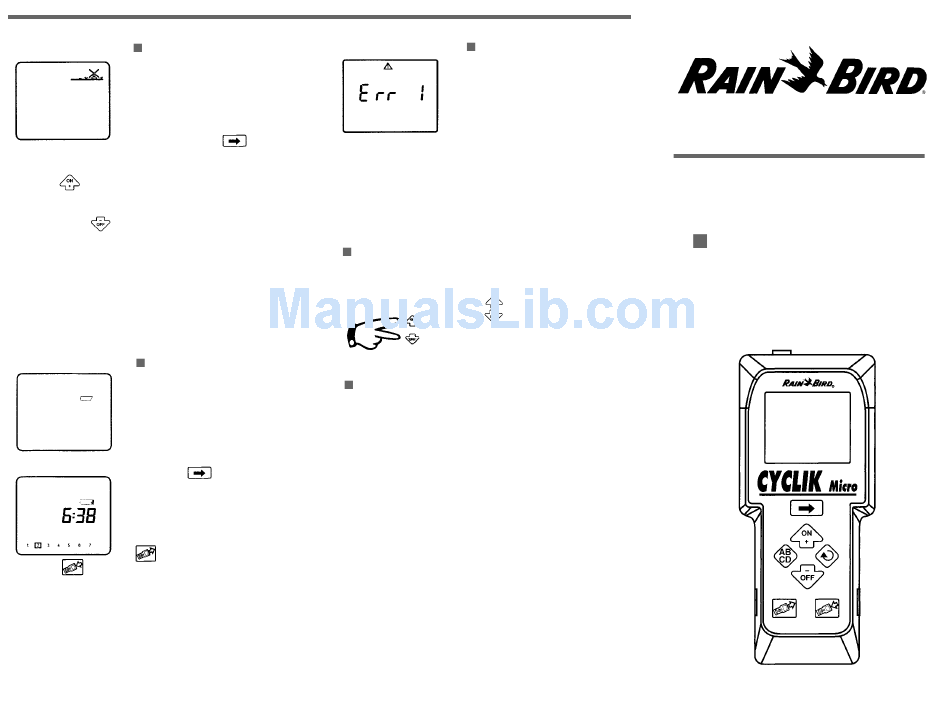

Rain Bird CYCLIK Micro Programming Manual

N.11
MODE ON/OFF
This mode is used to permit
watering or prevent any valve
from opening. It overrides
both manual or programmed
valve opening.
Repeatedly press
this screen (N.11) appears with a blinking cross on the
sprinkler. Connect the transmitter to the module and
press the key to place the module in the "ON"
module. The cross will disappear. Any programmed or
manual irrigation will take place.
If you press the key, the module will be placed in
the "OFF" mode. A non-blinking cross appears on the
sprinkler and all irrigation, either programmed or
manual, will be prevented. This mode is useful during
rainy weather (rainy weather shutdown). The
irrigation program remains stored in the module.
Important: Make sure that the control module is in the
"ON" mode before trying to manually open a valve with the
field transmitter.
N.12
LOW BATTERY ICON
a) Low battery in the field
transmitter
If the battery is low in the
field transmitter, this screen
(N.12) with the blinking low
battery icon will appear after
N.13
you press
the battery in the field
transmitter.
b) Low battery in the control
module
After you transmit a program
to a module or monitor a
program in a module, this screen (N.13) will
appear if the battery in the module must be replaced.
N.14
until
• New Micro 2000 field transmitter connected to a
control module with a date code prior to October 2,
2000.
• In the manual mode, the number of the station
entered to open or close a valve is higher than the
number of stations in the module.
ERASE PROGRAM DATA IN THE TRANSMITTER
This function erases all program data (MODE A and
MODE B) in the transmitter except current time and
day.
DAILY OPERATION OF SOLENOIDS
In order to stop a potential build-up of mineral
deposits on the solenoids, Cyclik control modules will
ensure that all solenoids open and close at least once
every 24 hours, even during a long off-cycle. The Cyclik
control modules will cycle all solenoids on and off for
. Replace no more than 3 seconds, every 24 hours after the last
valve closure. Whenever programmed operation is
already opening or closing a solenoid within 24 hours,
the 3 second anti-mineral cycle will not occur.
Rain Bird Corporation
Agri-Products Division
633 W. Foothill Blvd.
Glendora, CA 91741-2469
Phone: (800) 435-5624
Fax: (626) 852-7310
ERR 1 MESSAGE (N.14)
If the transmitter is
incompatible with the control
module, the Err 1 message
will be displayed on the LCD.
These are the possible
reasons:
Press the keys simultaneously
and hold them down for at least 3
seconds.
Rain Bird International, Inc.
145 N. Grand Ave.
Glendora, CA 91741-2469
Phone: (626) 963-9311
Fax: (626) 963-4287
www.rainbird.com
Rain Bird. The Intelligent Use of Water. ™
® Registered trademark of Rain Bird Corporation
© 2003 Rain Bird Corporation 3/03
CYCLIK
Programming Guide
PN L364
Micro
™
Mode A
