TBOS IR Anglais new der 5/11/04 15:20 Page 1

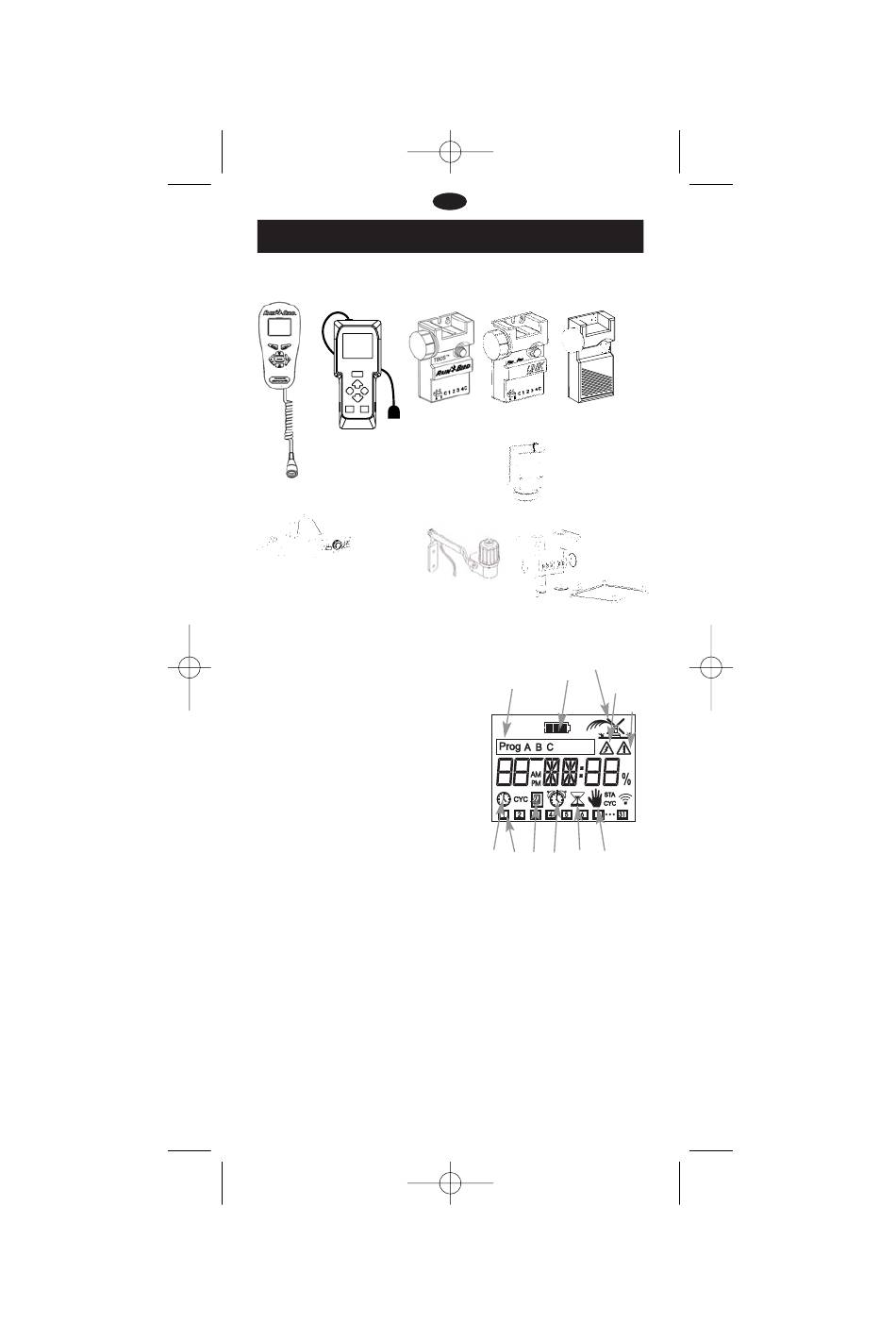

A. TBOS™ SYSTEM
1. TBOS SYSTEM DESCRIPTION
Field Transmitter
Field
Transmitter
(old version)
2. OPTIONS
Underground Rain Shutoff
Device with On/Off switch
3. LCD Screen icons
1• Select program (A, B or C) and assign a station to a program
(A, B or C)
2• Current time function
3• Day of the week or water day
4• Irrigation cycle function
5• Fonction des départs d'arrosage
6• Run time function for each station
7• Manual start : single station
(STA) or cycle (CYC)
8• System on/off
9• Now Transmitting
10•Transmission problem
11•Replace low battery
- in the transmitter if the icon appears
when the key fi is pressed
to turn on the LCD
- in the TBOS module if the icon appears during program
transmission or reception
4. SPECIFICATIONS
• Irrigation run time from 1 minute to 12 hours in 1-minute increments.
• 3 fully independent programs : A, B, C.
• Start times : 8 per program per day.
• 7-day irrigation cycle.
GB
Control Modules
2
1
TBOS
UNIK Version
UNIK
Version
(Old Version)
Latching
solenoid
RSD-BEX
8
11
1
2 3
4
5
6
12
4
3
Relay
9
10
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rain Bird TBOS SYSTEM 6LR61
Summary of Contents for Rain Bird TBOS SYSTEM 6LR61
- Page 1 TBOS IR Anglais new der 5/11/04 15:20 Page 1 A. TBOS™ SYSTEM 1. TBOS SYSTEM DESCRIPTION Field Transmitter Control Modules TBOS UNIK Version UNIK Version (Old Version) Field Transmitter (old version) Latching solenoid 2. OPTIONS Relay Underground Rain Shutoff RSD-BEX Device with On/Off switch 3.
- Page 2 TBOS IR Anglais new der 5/11/04 15:20 Page 2 • Automatic reset of current time and day when program is transmitted to the control module. • LCD automatically turns off after 1 minute if transmitter is not being used. • Battery life: 1 season with 1 top grade 9V alkaline battery type 6AM6 (international standard) or type 6LR61 (European standard): VARTA or equivalent (not included).
- Page 3 TBOS IR Anglais new der 5/11/04 15:20 Page 2 Remove the rubber plug from its location on the left and insert it into the cord slot. Install the battery compartment cover and secure it. 7. INFRARED CORD ASSEMBLY Unscrew the battery Remove the rubber plug from compartment door and the cord slot and install it...
-
Page 4: Operation Overview
TBOS IR Anglais new der 5/11/04 15:20 Page 3 8. OPERATION OVERVIEW A. Program transmission with the Parameters below are transmitted to the module • Current time and day • Water days/program • Start times/program • Run time/station + program assignment of each station •... - Page 5 TBOS IR Anglais new der 5/11/04 15:20 Page 4 B. FIELD TRANSMITTER START-UP 1• Install a battery in the TBOS Radio Field Transmitter Ref: 6LR61 (6AM6) (Varta or equivalent...) Note: in the future, if the low battery icon blinks for 30 seconds after pressing to turn on the LCD, replace the 9V battery in the field transmitter.
- Page 6 (for radio tests). The product described above is powered by a 9 volt battery and is in conformity with the EN 60950 authorized standard which presumes conformity to the low voltage standard (73/23/CE). Aix-en-Provence, 01/10/2003 General Manager RAIN BIRD EUROPE...
- Page 7 TBOS IR Anglais new der 5/11/04 15:20 Page 6 E. PROGRAMMING PROGRAMMING TBOS Field Transmitter Start-up 1 - Standby screen ➞ 2 - Pressing the key repeatedly will access the circular menu. 1. SET DAYS OF THE WEEK TO WATER First select the program with the ABC key.
- Page 8 TBOS IR Anglais new der 5/11/04 15:20 Page 7 Note : It is not necessary to use all 8 start times for each program ! The transmitter will automatically file your start times in chronological order from 00:00 to 23:59. To cancel a start time : use the key to display the start times.
- Page 9 TBOS IR Anglais new der 5/11/04 15:20 Page 8 F. PROGRAM TRANSMISSION, PROGRAMMING REVIEW, AND CHANGE 1. PROGRAM TRANSMISSION 1.1 Plug the field transmitter optical connector onto the control module. If the LCD screen is blank, press the key. 1.2 - If you have not already done so, enter the program data. 1.3 - Press 1.4 - After transmission is correctly completed, the transmitter will display this screen.
-
Page 10: Manual Functions
TBOS IR Anglais new der 5/11/04 15:20 Page 9 G. MANUAL FUNCTIONS Important ! The next 3 functions override all others. This means that any program currently running will be suspended to permit the use of the manual functions. Before carrying out a manual start, make sure a run time (at least 1 minute) has been programmed and transmitted to the control module and that the control module is in the irrigation "ON"... - Page 11 TBOS IR Anglais new der 5/11/04 15:20 Page 10 2.5 Press the +/ON key to start the cycle. After a maximum of 20 seconds, irrigation will start. The stations assigned to the program will operate in sequence - one after the other - until the last station has finished watering. Irrigation will then automatically stop.
