E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
8050102 BA / EN

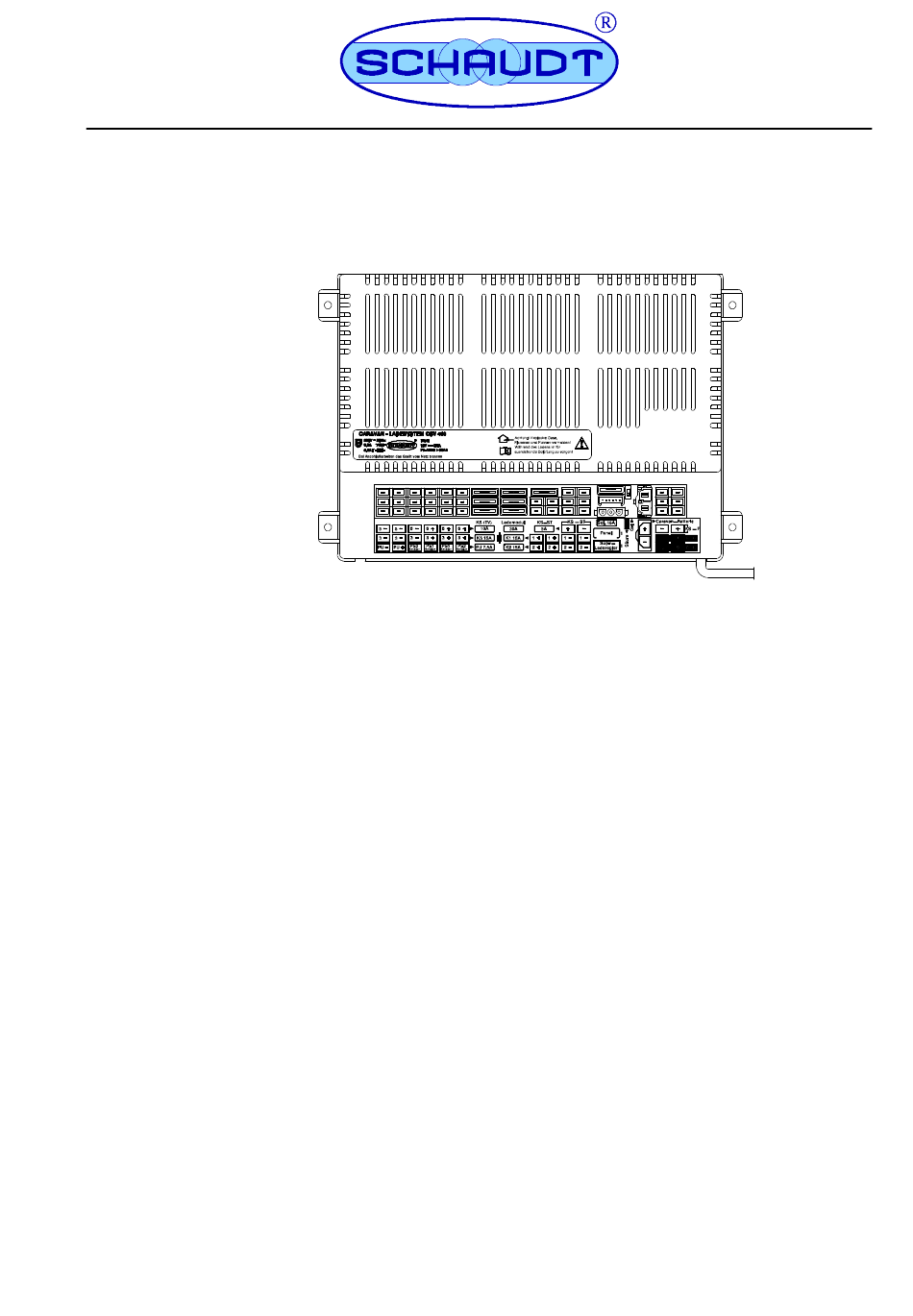

Instruction Manual
Caravan-charging system CSV 410
Contents
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2.1
2.2
3
3.1
3.2
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1
5.2
5.3
5.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5
5.6
6
6.1
6.2
6.3
7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
2
3
5
5
6
7
7
8
9
10
11
11
12
12
12
13
13
14
Date: 20.02.2020
Advertisement
Table of Contents
Related Manuals for Schaudt CSV 410
Summary of Contents for Schaudt CSV 410
-
Page 1: Table Of Contents
..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8050102 BA / EN Date: 20.02.2020... -
Page 2: Introduction
Operating manual for caravan-charging system CSV 410 Introduction This instruction manual contains important information for the safe operation of equipment supplied by Schaudt. Make sure you read and follow the safety instructions provided. The instruction manual should always be kept in the vehicle. All safety infor- mation must be passed on to other users. -
Page 3: Application And Function
Operating manual for caravan-charging system CSV 410 DANGER! Incorrect installation Electric shock or damage to connected devices: Install as shown in installation instructions. The mains connection line may only be replaced by an authorised cu- stomer service department or by those qualified. - Page 4 Operating manual for caravan-charging system CSV 410 The CSV 410 caravan charging system is the central power supply unit for all 12 V consumers connected to the caravan’s electrical system. It is usually located in a cupboard or storage area and is accessible from the front in or- der to change fuses.
-
Page 5: Battery Functions
Operating manual for caravan-charging system CSV 410 Battery functions Suitable batteries 6-cell lead acid or lead gel batteries, 80 Ah and above Battery charging Charging the caravan battery whilst driving; increasing the supply voltage whilst moving coming from the towing vehicle via the battery booster... -
Page 6: Layout
Layout 14 15 16 17 18 19 Fig. 2 Front view of CSV 410 caravan charging system Connections for circuit 5 Flat vehicle fuse for fridge controller Connections for circuit 3 Connections for circuit 2 Pump connections... -
Page 7: Operation
The caravan charging system is operated solely from the control and switch panel connected. The CSV 410 caravan charging system does not require daily operation. Initial setting is only needed after the type of battery (lead-acid or lead-gel) has been changed or during commissioning or when upgrading with acces- sories (see Section 5.3 and CSV 410 installation instructions). -
Page 8: Starting Up The System
Operating manual for caravan-charging system CSV 410 5.1.3 Connect pump (option) For the pump to be switched on, the 12V supply voltage must first be swit- ched on (see Section 5.1.2 for the main supply). Switching on Move the switch with the pump symbol upwards. -
Page 9: Changing The Battery
Operating manual for caravan-charging system CSV 410 Operation on towing vehicle CAUTION! Battery discharge Towing vehicle can no longer start: Switch off the ignition when the towing vehicle is stationary. Changing the battery CAUTION! Use of incorrect battery types or incorrectly rated batteries. -
Page 10: Faults
If this is not possible, e.g. if you are abroad, you can have the caravan char- ging system repaired at a specialist workshop. In this case, you must ensure that the warranty is not invalidated by incorrect repairs being carried out. Schaudt GmbH will not accept any liability for damage resulting from such repairs. Fault... -
Page 11: Shutting Down The System
160 Ah battery to the mains for at least 24 and 36 hours respectively. CAUTION! Permitted input voltages exceeded. Damage to connected consumers: Do not operate any connected Schaudt solar charge regulator without battery. When the battery is changed or removed, first unplug the ”+ solar cell” connector on the solar charge regulator. -
Page 12: Technical Details
Operating manual for caravan-charging system CSV 410 Technical details Mechanical details Dimensions 111 x 320 x 217 (H x W x D in mm), including attachment feet Weight 2 kg Casing PA (polyamide), gentian blue (RAL 5010) Electrical details Mains connection 230V AC ... -
Page 13: Environmental Parameters
Operation in dry environment only CE mark? Maintenance The CSV 410 caravan charging system requires no maintenance. Cleaning Clean the caravan charging system using a soft, slightly damp cloth and mild detergent. Never use spirit, thinners or similar substances. Do not allow fluid to ingress the caravan charging system. -
Page 14: Appendix
88677 Markdorf Germany Special fittings/accessories Solar charge regulator Schaudt solar charger LR ... model for solar modules with a total current of 14A, including 0.5 m connection cable and connector plug Customer service Customer service Schaudt GmbH, Elektrotechnik & Apparatebau address Planckstraße 8... - Page 15 Operating manual for caravan-charging system CSV 410 Fault report In the event of damage, please fill in the fault report and send it with the faulty device to the manufacturer. Device type: _______________________ Item no.: _______________________ Vehicle: Manufacturer: _______________________ Model:...
- Page 16 Operating manual for caravan-charging system CSV 410 Block diagram/wiring diagram Connections 9 and 10 must be fused ext. in Trailer hitch towing vehicle/ caravan connecting the vehicle up to a maximum of 15A. plug assignment as per EN 1648-1 +Ua booster 14.25V...
