E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
822.371 BA / EN
Installation instructions
Adapter AD 01
AD 02
AD 03
Table of contents
1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
4
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1
AD 01
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2
AD 02
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3
AD 03
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
7
8
8.1
8.2
9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.1
9.2
9.3
10
10.1
10.2
10.3
11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Date: 01.08.2012
2
2
2
2
3
3
3
6
6
7
8
8
9
10
10
10
11
11
11
11
12
12
12
12
12
13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaudt AD 01
Summary of Contents for Schaudt AD 01
-
Page 1: Table Of Contents
..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 822.371 BA / EN... -
Page 2: Safety Information
Introduction This instruction manual contains important information for the safe operation of equipment supplied by Schaudt. Make sure you read and follow the safety instructions provided. The instruction manual should always be kept in the vehicle. All safety infor- mation must be passed on to other users. -
Page 3: Operation
These functions are required to connect additional position lights and fog lights, or day/night-time driving lights, for example. The AD 01 adapter also provides the ability to connect a voltage as soon as the engine is running (amplification of D+ signal; leads itself to the connec- ting up of consumers having a high power consumption -- these can then only be started up when the vehicle engine is running). - Page 4 (vehicle lighting ON, D+, ignition ON, control voltage 1 and auxiliary heater (AD 01) / 4 (AD 02), low-beam light ON (AD 03)) and the battery voltage. Input Aux. heater (for AD 01) / input 4 (for AD 02) is connected to ground.
- Page 5 Installation instructions for adapter AD 01...03 An additional fog light (fuse: 5 A) Two devices that can be connected via a separate control input (input 1, see Appendix E) -- fuse: 15 A One device that can be connected via a separate control input (input 4,...
-
Page 6: Layout

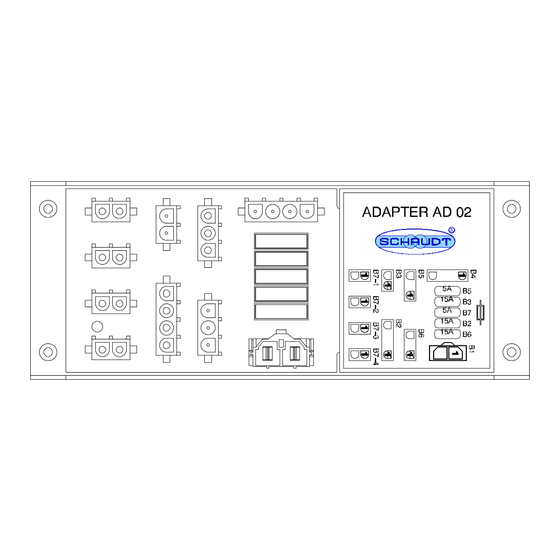

Installation instructions for adapter AD 01...03 Layout AD 01 B7-1 B7-2 B7-3 B7-4 15 16 Fig. 2 AD 01 adapter B7-1: Connectors, position light 1 B7-2: Connectors, position light 2 B7-3: Connectors, position light 3 B7-4: Connectors, position light 4... - Page 7 Installation instructions for adapter AD 01...03 AD 02 B7-1 B7-2 B7-3 B7-4 Fig. 3 AD 02 adapter B7-1: Connectors, position light 1 B7-1: Connectors, position light 2 B7-1: Connectors, position light 3 B7-1: Connectors, position light 4 B3: 12V for ignition ON...
-
Page 8: Maintenance
Installation instructions for adapter AD 01...03 AD 03 Fig. 4 AD 03 adapter B3: Connector, output terms. 15 & 30 B8: Position light, low-beam light, output terms. 15 & 30 B7: Position light B6: Position light B4: Connector, term. 15 B5: 12V when engine is running (D+) B2: Connector, vehicle control voltages (D+, term. -
Page 9: Mechanical Installation
(3.5mm diameter) at the four fitting holes provided. 4 x 3.5 view Front of device Fig. 5 Dimension diagram of AD 01 and AD 02 adapters (dimensions in mm) Installation distance rolls for attachment with 3.5 screws 3 x 3.7 Fig. 6 Dimension diagram for AD 03 adapter (dimensions in mm) Date: 01.08.2012... -
Page 10: Electrical Connection
Disconnection Disconnect in the reverse order. Block diagram/wiring diagram The block diagram/wiring diagram are in the appendix of the instruction manual for the AD 01 and AD 02 adapters. Connecting peripheral devices ATTENTION! Short circuits! Damage to the adapter or cable fire: To protect the supply lines in the event of a short circuit, connect the fuses directly to the positive terminal of battery. -
Page 11: Initial Use
Installation instructions for adapter AD 01...03 Initial use Checks prior to initial use Before starting up Ensure that the battery of the basis vehicle is connected correctly (only as part of initial use). Starting up the system Engine of the basis vehicle when stationary: Switch on the vehicle lighting and check whether all position lights are also switched on. -
Page 12: Technical Details
Installation instructions for adapter AD 01...03 Technical details 10.1 Mechanical details Dimensions 43 x 184 x 73 (H x W x D in mm), including spacers Weight 250 g Casing Al (aluminium), anodised blue 10.2 Electrical details Current consumption 60 mA per control relay... -
Page 13: Appendix
Installation instructions for adapter AD 01...03 Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms that the design of the AD 01 and AD 02 adapters meet the following relevant regulations: EC low voltage directive 73/23/EEC edition with amendments issued on 22.07.93... - Page 14 Installation instructions for adapter AD 01...03 Fault report In the event of damage, please fill in the fault report and send it with the faulty device to the manufacturer. Device type: _______________________ Item no.: _______________________ Vehicle: Manufacturer: _______________________ Model: _______________________...
- Page 15 Installation instructions for adapter AD 01...03 AD 01 block diagram / wiring diagram Molex Minifit SR--2F B1 MNL pin cap 2F B3 + Starter battery + 12V Steady -- Starter battery -- 12V Steady MNL pin cap 4F B4 MNL socket cap 4F B2...
- Page 16 Installation instructions for adapter AD 01...03 AD 02 block diagram / wiring diagram Molex Minifit SR--2F B1 MNL pin cap 2F B3 Terminal 15 12V with ignition Ground MNL pin cap 4F B4 MNL socket cap 4F B2 Input 1...
- Page 17 Installation instructions for adapter AD 01...03 AD 03 block diagram / wiring diagram MNL pin cap 4F Block 3 Ground Ground Molex Minifit SR--2F Block 1 Kl. 16 Starter battery Kl. 30 Ground MNL pin cap 3F Block 4 KL. 15 Ground Kl.
- Page 18 Installation instructions for adapter AD 01...03 (blank page) Date: 01.08.2012 822.371 BA / EN...
