Summary of Contents for Julabo FT200

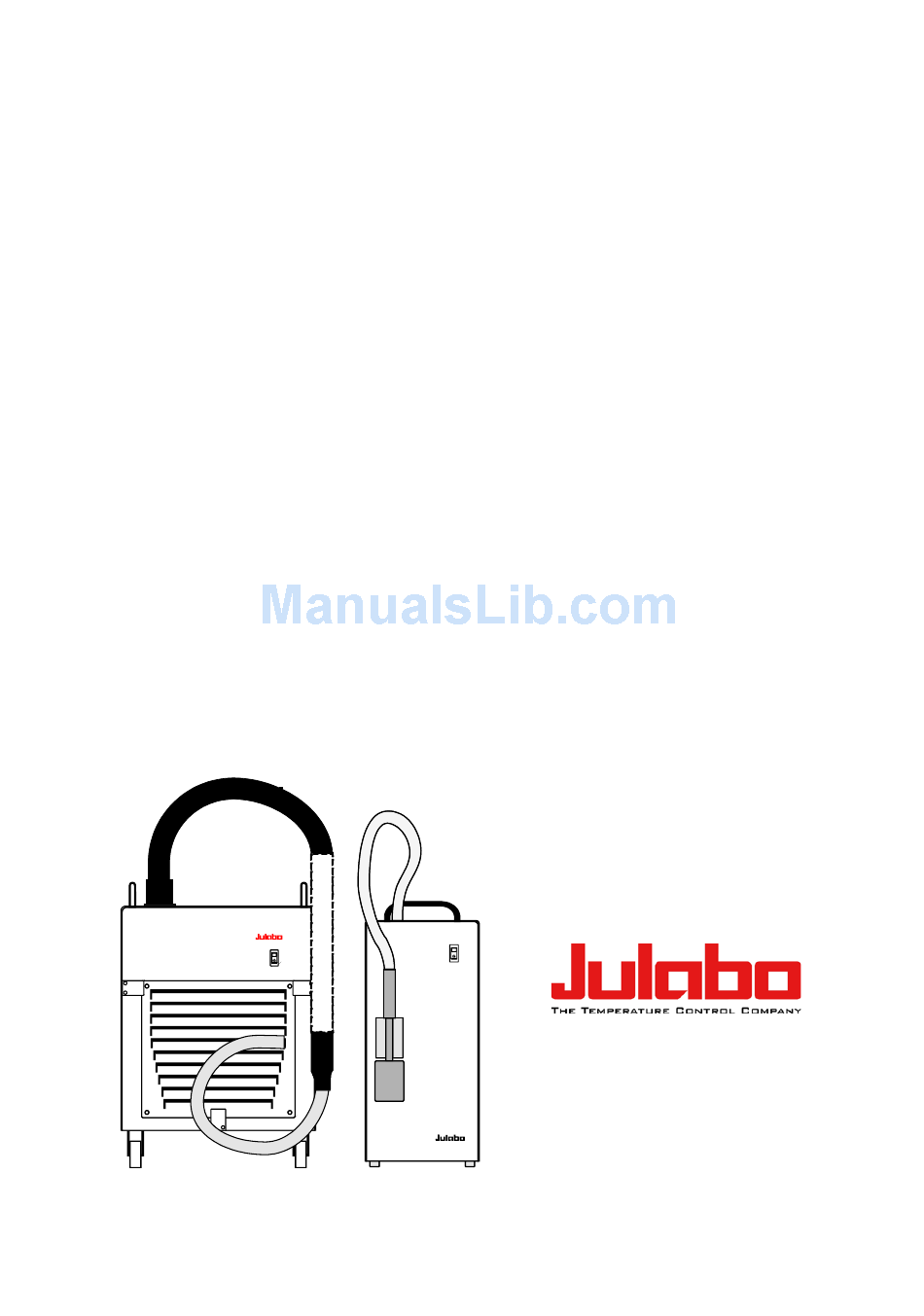

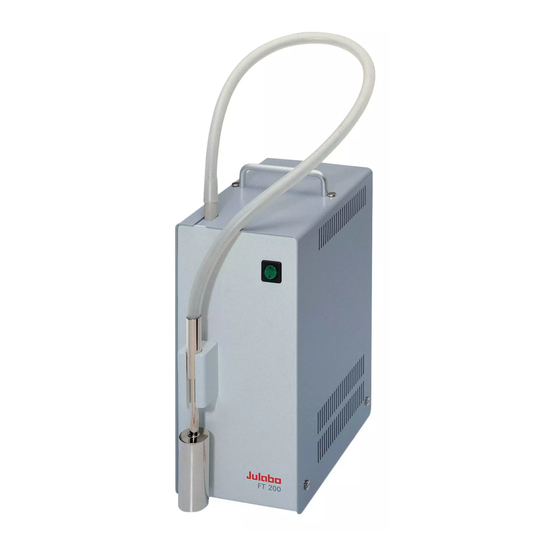

- Page 1 English Operating manual Immersion Coolers FT200 FT400 FT900 Flow-Through Cooler FD200 FT900 FT 400 1.951.4616-V4 05/16 19514616-V4.doc GlobalTestSupply 02.05.2016 www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 2.4. Technical specifications FT200 FD200 Temperature range °C -20 … +30 10 … +30 Cooling capacity °C 0 -30 (medium ethanol) 0.25 0.15 0.04 0.22 0.18 Refrigerant R134a R134a Recommanded flow rate l/min ----- 2 - 3 Freezing protection °C ----- Immerson probe (Lxdia.)
- Page 3 • The operator undertakes to have maintenance, repair, service, recovery and recycling work carried out by certified personnel who have been authorized by JULABO. • All such work must be documented. The operator must keep records and archive them for at least five years.
-
Page 4: Operating Controls And Functional Elements
Operating instructions OPERATING CONTROLS AND FUNCTIONAL ELEMENTS FT400 FT200 Rear view FT 400 FT 400 FD200 Mains switch, illuminated Cooling control light Clamp for immersion probe Removable ventilation grid Castor with locking lever Tube connection - discharge Tube connection - intake... - Page 5 OPERATING CONTROLS AND FUNCTIONAL ELEMENTS FT900 Rear view FT900 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 6: Safety Notes For The User
Safety notes for the user 4.1. Explanation of safety notes In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”... - Page 7 Safety notes for the user 4.3. Safety instructions Follow the safety instructions to avoid personal injury and property damage. Also, the valid safety instructions for workplaces must be followed. • Only connect the unit to a power socket with an earthing contact (PE – protective earth)! •...
- Page 8 Preparations 5.1. Installation • Place the unit on an even surface on a pad made of non- flammable material. • Press down the castor levers on model FT900. • The instrument should be set up at a frost-proof and dry location. •...
-
Page 9: Operating Procedures
OPERATING PROCEDURES Accessory: Clamp for cooler probe FT200/400 - order no. 8 970 400 5.3. Tube connection FD200 • Connect the tubes and secure with tube clamps. discharge (9) intake (10) Recommended flow rate: 2 to 3 l/min OPERATING PROCEDURES 6.1. -
Page 10: Danger Of Injury
6.2. Switching On • The immersion cooler is turned on and off with the mains switch. (1). The control light in the switch will illuminate. The immersion probe – as part of the cooling circuit – should not be exposed to bath temperatures above the working temperature of the immersion cooler. -
Page 11: Troubleshooting
Service and repair work may be performed only by authorized electricians. Prevent humidity from entering into the immersion cooler. JULABO coolers are designed for continuous operation under normal conditions. Periodic maintenance is not required. - Page 12 Clean the outside of the unit using a wet cloth and low surface tension water. Repairs Before asking for a service technician or returning a JULABO instrument for repair, please contact an authorized JULABO service station. When returning the unit: •...
