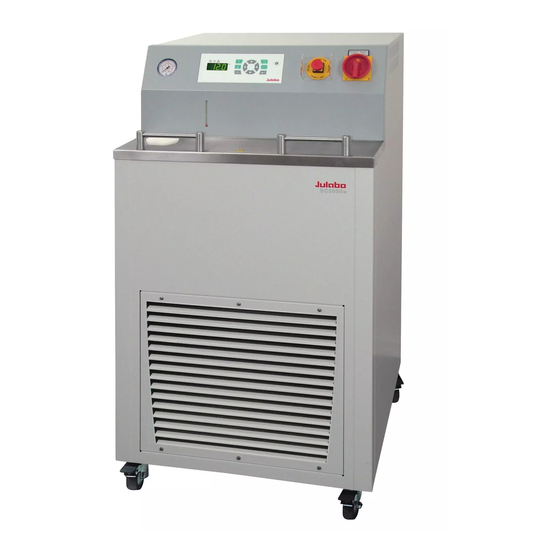

SemiChill
Professional Series
SC 5000a
air cooled
SC 5000w
water cooled
SC 10000w
water cooled
1.951.4576-V3
19514576-V3.doc
Operating Manual
Recirculating Coolers
10/13
130
60
180
30
10
220
°C
ESC
JULABO GmbH
77960 Seelbach / Germany
Tel.
+49 (0) 7823 / 51-0
Fax
+49 (0) 7823 / 24 91
info@julabo.de
www.julabo.de
RG EN CY S T
E NE
O P
ON
S
U
A
T -
O
OFF
N
SC 10000
08.10.13
