Julabo FP52-SL Operating Manual

Ultra-low refrigerated circulators
Hide thumbs
Table of Contents

Advertisement

Quick Links

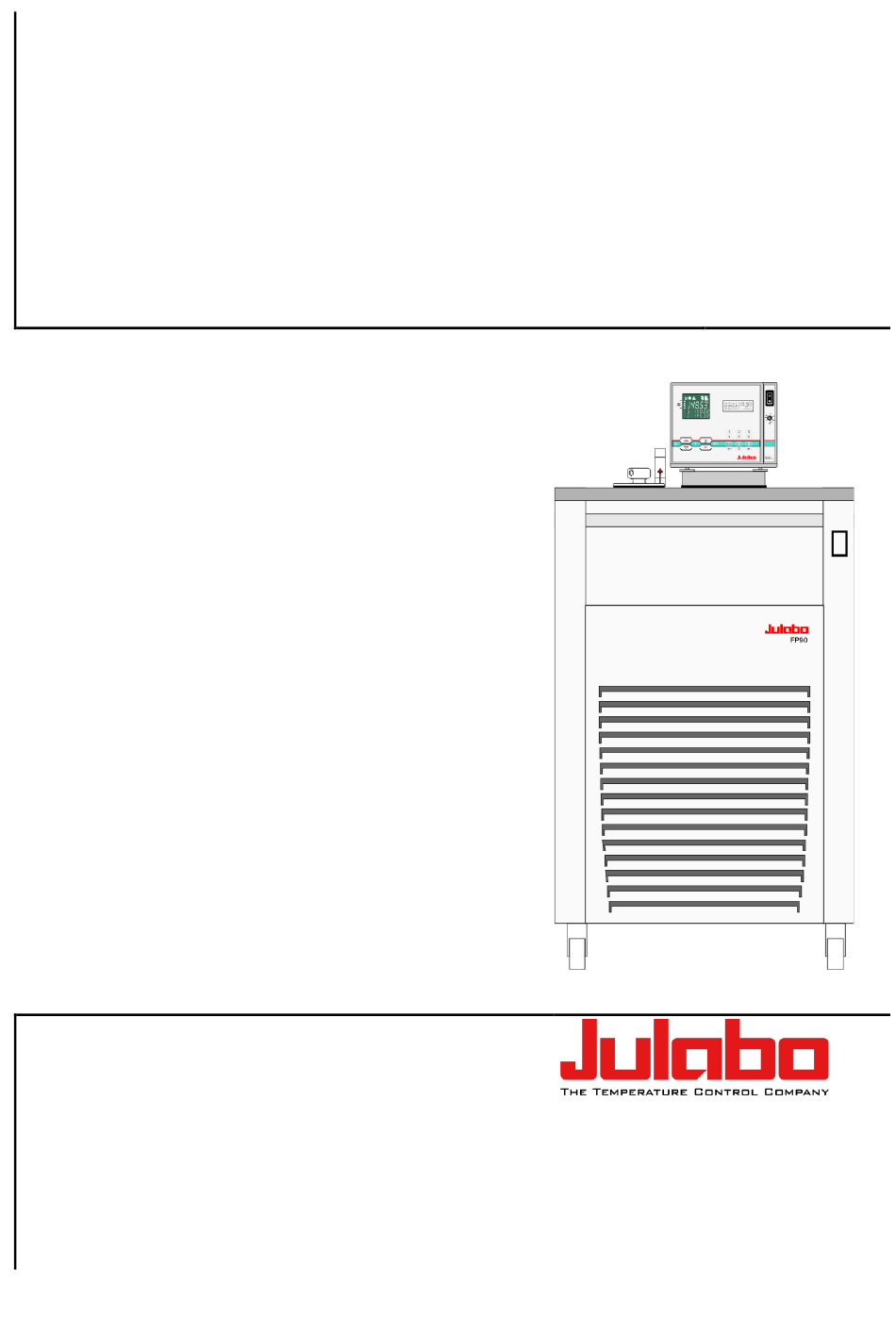

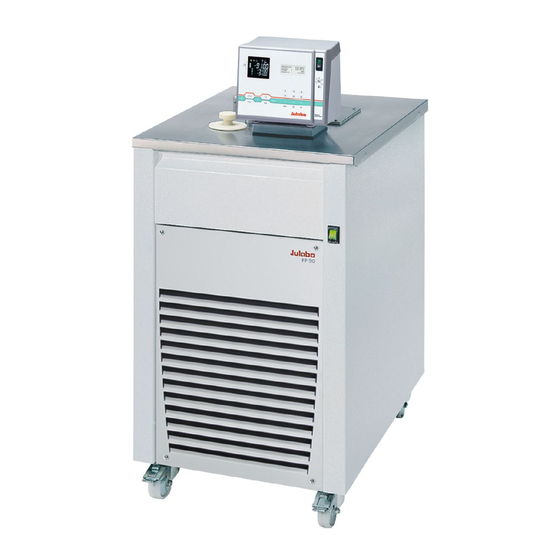

Operating Manual
Ultra-Low
Refrigerated Circulators
air-cooled
FP52-SL
FP55-SL
FP90-SL
water-cooled
FPW52-SL
FPW55-SL
FPW90-SL
FPW91-SL
• upgradable with supplementary pump - HSP
• upgradable with supplementary heater - HST
special unit with bath opening for internal
•
temperature applications
19532830-V5.docx
JULABO USA, Inc.
884 Marcon Boulevard
Allentown, PA 18109
Phone: +1(610) 231-0250
Fax:
+1(610) 231-0260
info.us@julabo.com
www.julabo.com
English
27.06.18
