WATER SUPPLy CONNECTIONS

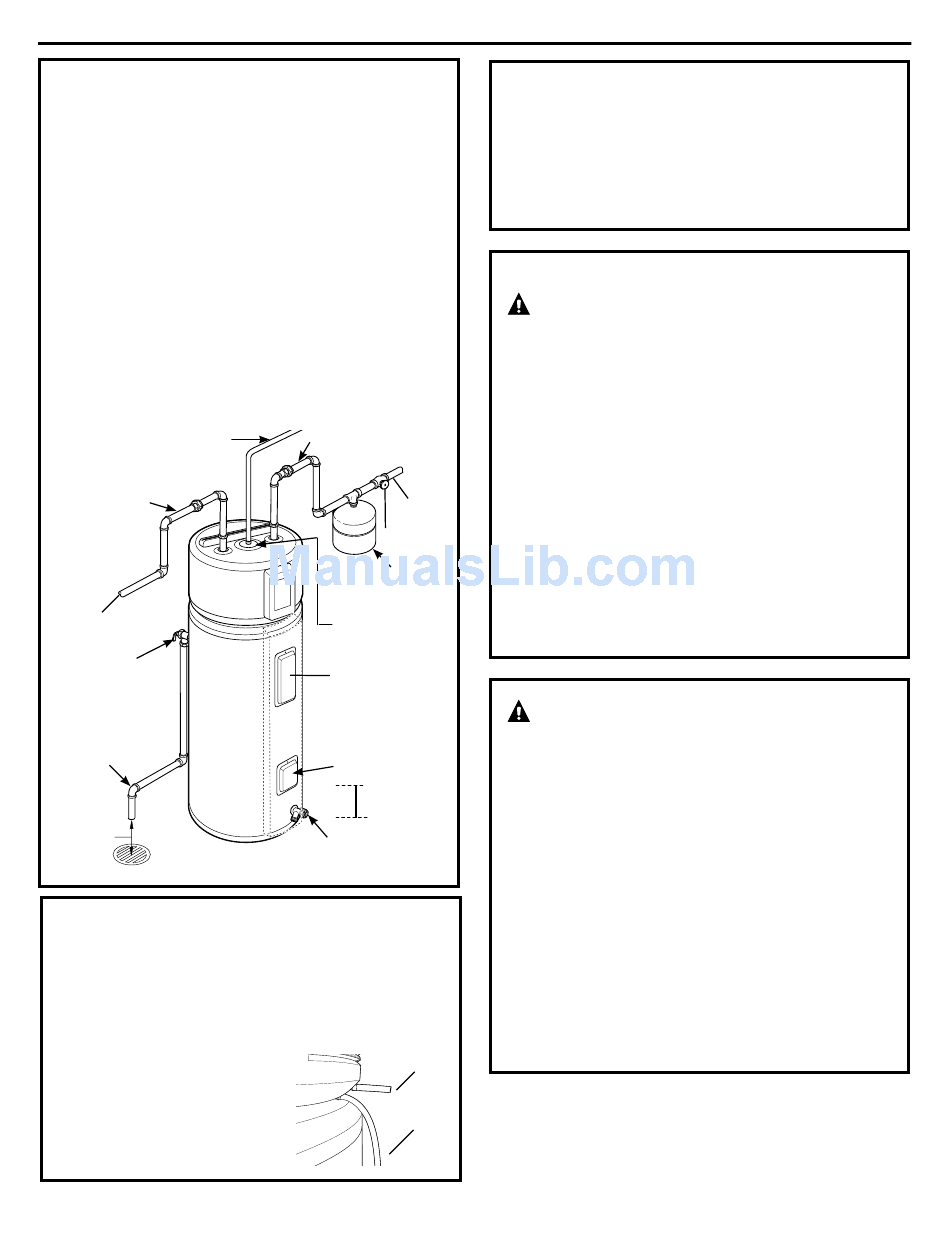

Refer to the illustration below for suggested typical installation.
The installation of unions or flexible copper connectors is
recommended on the hot and cold water connections so that
the water heater may be easily disconnected for servicing if
necessary. The HOT and COLd water connections are clearly
marked and are 3/4" nPT on all models.
NOTE: Install a shut-off valve in the cold water line near the
water heater. This will enable easier service or maintenance
of the unit later.
IMPORTANT:Do not apply heat to the HOT or COLD water
connections. If sweat connections are used, sweat tubing
to adapter before fitting the adapter to the cold water
connections on heater. Any heat applied to the hot or cold
water connection will permanently damage the internal
plastic lining in these ports.

TyPICAL INSTALLATION

To electrical
distribution panel
Union
Hot water
outlet to fixtures
Temperature and
pressure-relief valve
(shown in different
location for clarity)

Relief valve

discharge line to
suitable open drain
6" ( 15.2 cm)
air gap

CONDENSATION DRAIN TUbES

This unit has a condensation tray. The water collected in the
tray drains out of the tube coming off the back of the unit.
Two flexible hoses are included with this unit. It is important
that both of these hoses are attached to the two drain ports
coming off the back of the unit. Attach one end of the longer
6' (1.8 m) hose to the lower drain port on the back of the unit,
underneath the rear cover. direct
the other end to a drain in the floor
or no higher than 3' (0.9 m) above
the floor. If such drain is unavailable,
a condensate drain pump (not
provided) must be purchased and
installed. Attach the shorter 3"
(7.6 cm)hose to the top drain port.
Installation Instructions
Union
To cold
water
supply
Shut-off valve
Thermal expansion
tank (if required)
Electrical junction
box (use only
copper conductors)
Jacket access panel
Jacket access panel
Auxiliary catch
pan 2" (5.1 cm)
maximum
Drain valve
3" (7.6 cm)
hose
6' (1.8 m)
hose
16
A new combination temperature and pressure-relief
valve, complying with the Standard for Relief Valves and
Automatic Gas Shut-Off devices for Hot Water Supply
Systems, AnSI Z21.22, is supplied and must remain installed
in the opening provided and marked for the purpose on
the water heater. no valve of any type should be installed
between the relief valve and the tank. Local codes shall
govern the installation of relief valves.
RELIEf VALVE
WARNING:
The pressure rating of the relief
valve must not exceed 150 PSI (1.03 kPa), the maximum
working pressure of the water heater as marked on the
rating plate.
The BTuH rating of the relief valve must not be less than the
input rating of the water heater as indicated on the rating
label located on the front of the heater (1 watt=3.412 BTuH).
Connect the outlet of the relief valve to a suitable open drain
so that the discharge water cannot contact live electrical
parts or persons and to eliminate potential water damage.
Piping used should be of a type approved for hot water
distribution. The discharge line must be no smaller than the
outlet of the valve and must pitch downward from the valve
to allow complete drainage (by gravity) of the relief valve
and discharge line. The end of the discharge line should
not be threaded or concealed and should be protected
from freezing. no valve of any type, restriction or reducer
coupling should be installed in the discharge line.
CAUTION:
To reduce the risk of excessive pressures and
temperatures in this water heater, install temperature
and pressure protective equipment required by local
codes and no less than a combination temperature and
pressure relief valve certified by a nationally recognized
testing laboratory that maintains periodic inspection of
production of listed equipment or materials, as meeting
the requirements for Relief Valves and Automatic Gas
Shutoff devices for Hot Water Supply Systems, AnSI
Z21.22. This valve must be marked with a maximum set
pressure not to exceed the marked maximum working
pressure of the water heater. Install the valve into an
opening provided and marked for this purpose in the
water heater, and orient it or provide tubing so that
any discharge from the valve exits only within 6 inches
above, or at any distance below, the structural floor, and
does not contact any live electrical part. The discharge
opening must not be blocked or reduced in size under
any circumstances.
