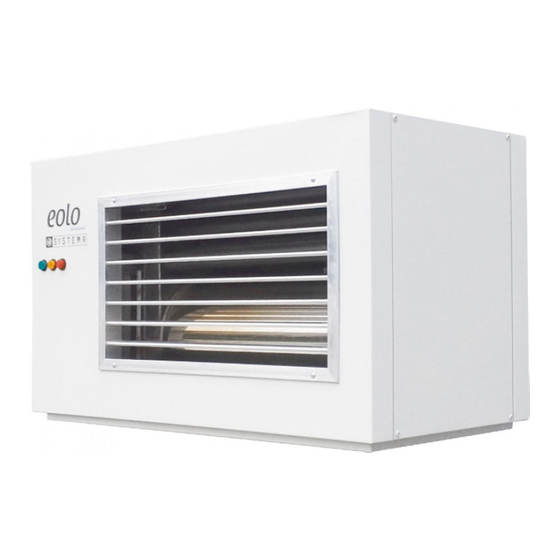

- Page 1 SYSTEMA EOLO G DIESEL OIL AIRTHIGHT SUSPENDED WARM AIR HEATERS EOLO G GE/GC USER MANUAL INSTALLATION, USE AND MAINTENANCE Rev. 01EN18-04...
- Page 2 EOLO G IMPORTANT: Read this manual carefully before starting up the system. In order to improve the product, Systema reserves the right to modify the content without prior notice. Appliance subject to periodic maintenance, depending on the type of fuel, specific applications, room temperature, length of use etc.
-
Page 3: Table Of Contents
SYSTEMA EOLO G SUMMARY GENERAL RULES ................... 5 TECHNICAL SPECIFICATIONS ..................TECHNICAL DATA ....................... 6 DIMENSIONS ........................ 1.3.1 Eolo GE -axial fans ........................1.3.2 Eolo GC - centrifugal fans ....................... 1.3.3 Exploded view of EOLO heater ...................... 1.3.4 Eolo GE -axial fans ........................ -
Page 4: General Rules
SYSTEMA EOLO G GENERAL RULES The present instruction manual is an integral and essential part of the appliance and must be kept carefully beside the appliance for further consultation. Read the instructions and warnings contained in this manual carefully as they provide important information on safety, installation, use and maintenance. -
Page 5: Technical Specifications
SYSTEMA EOLO G TECHNICAL SPECIFICATIONS EOLO G…Oil burner version GE - axial fan and GC - centrifugal fan TECHNICAL DATA EOLO 25 GE/GC 35 GE/GC 45 GE/GC 55 GE/GC 65 GE/GC 85 GE/GC 100 GE/GC Thermal load Combustion performance Emision CO... -
Page 6: Dimensions
SYSTEMA EOLO G DIMENSIONS 1.3.1 Eolo GE- Axial fan Fig 1.1 Dimensions Eolo GE series Dimensions Eolo GE Weight MODEL EOLO 25 GE EOLO 35 GE 1095 EOLO 45 GE 1155 EOLO 55 GE 1290 EOLO 65 GE 1440 1164... -
Page 7: Eolo Gc - Centrifugal Fans
SYSTEMA EOLO G 1.3.2 Eolo GC- centrifugal fan Fig 1.2 Dimensioni Eolo GC - serie centrifuga Dimensions Eolo GC Weight MODEL EOLO 25 GC EOLO 35 GC 1095 EOLO 45 GC 1155 EOLO 55 GC 1290 EOLO 65 GC 1440... -
Page 8: Exploded View Of Eolo Heater
SYSTEMA EOLO G Exploded view of Eolo heater 1.3.3 1.3.4 Eolo GE- axial fan Fig 1.3 Descripti Descrizione Front panel Back panel - fan support Supply air grille with horizontal fins support with 1 axial fan Thermal isolation support with 2 axial fans... -
Page 9: Eolo Gc - Centrifugal Fans
SYSTEMA EOLO G 1.3.5 Eolo GC - serie centrifuga Fig 1.4 Description Description Front panel Back panel - fan support Supply air grille with horizontal fins support with 1 centrifugal fan Thermal isolation support with 2 centrifugal fans Internal panel... -
Page 10: Electrical Diagram Eolo Ge - Gc
SYSTEMA EOLO G ELECTRICAL DIAGRAM EOLO GE - GC Description 7 POLS SOCK RIELLO BURNER THERMOSTAT OF VENTILATION – SAFETY THERMOSTAT FAN CONNECTION - Connectors 10 FASE – 11 NEUTRO – 12 GROUND ELECTRICAL CONNECTORS Alimentazione elettrica 230 V. 50 hz. 1F connettori PE-L1-N... -
Page 11: Burner - Fuel Connection
SYSTEMA EOLO G BURNER - FUEL CONNECTION The supply combustible system must complied to the scheme in additional instruction manual of Riello burner. ALL THE MAINTENANCE OPERATIONS MUST BE PERFORMED FROM TECHNICAL SPECIALISED PERSONNEL. INSTALLATION To obtain the maximum performance from the "EOLO" suspended warm air... -
Page 12: Wall Installation
SYSTEMA EOLO G WALL INSTALLATION The Eolo GE - GC heater can be fixed to the wall of the building. Using one of the solutions shown in the following figures.. Fig.4.6 Mounting wall bracket ATTENTION!! TO INSTALL EOLO IN SUSPENSION,IT IS NECESSARY TO SPECIFY THE ORDER CONFIGURATION. -
Page 13: Example Of Installa Tion Eolo Centrifugal
SYSTEMA EOLO G EXAMPLE OF INSTALTION EOLO CENTRIFUGAL The following figures show an example of the installation of centrifugal Eolo series, installed inside with air duct. Air intake takes place both from the outside and inside with the possibility of adjusting the internal / external air mixture. -
Page 14: Fumes / Air Intake Installation
SYSTEMA EOLO G FUMES / AIR INTAKE INSTALLATIONS IMPORTANT In the case of outlet of the combustion products in the fumes cane, this must be realized respecting the current standards in the country where the system is installed. Lmax = 5+5 m... -
Page 15: Fumes / Air Terminals Type C13 Horizontal
SYSTEMA EOLO G FUMES / AIR TERMINALS TYPE C13 HORIZONTAL Pos. Descriptione Code Q.ty 04CNTE0451 Fume terminal horizontal Ø 100 mm with colars 04CNTE0446 Air intake terminal horizontal Ø 100 mm with colars Flexible stainless steel coupling/rigid pipe Ø100 mm... -
Page 16: Fumes / Air Terminals Type C33 Vertical
SYSTEMA EOLO G FUMES / AIR TERMINALS TYPE C33 VERTICAL Pos. Description Code Q.ty 1 Fumes terminal Ø 100 mm vertical 00CNTE0001 2 Tube stainless steel Ø 100 mm 00CNTU2705 3 Collar 00CNCO3012 Lead seal 01CNCO0131 Hole cover rosette 00CNCO0605 Air terminal Ø... -
Page 17: Start Up Of Heater
The warranty is limited to the faults in material or machining of components supplied by SYSTEMA. In the case of a fault in the material or machining, SYSTEMA shall repair or replace faulty parts ex-works free of charge. ALL OTHER FORMS OF WARRANCY OR COMPENSATION, LEGAL OR CONVENTIONAL, ARE EXPRESSLY EXCLUDED. -
Page 18: Exclusions From The Warranty
SYSTEMA EOLO G a) payment for the appliance was not effected within the terms established in the contract b) "Initial ignition" was not effected by the Service Centre and/or its copy of the warranty duly compiled and signed in all parts was not received. - Page 19 SYSTEMA EOLO G Rev. 01EN18-04...
- Page 20 SYSTEMA EOLO G In order to improve the quality of products, Systema reserves the right to change specifications without notice Rev. 01EN18-04...
