GYS GYSMI 142DV Operating Instructions

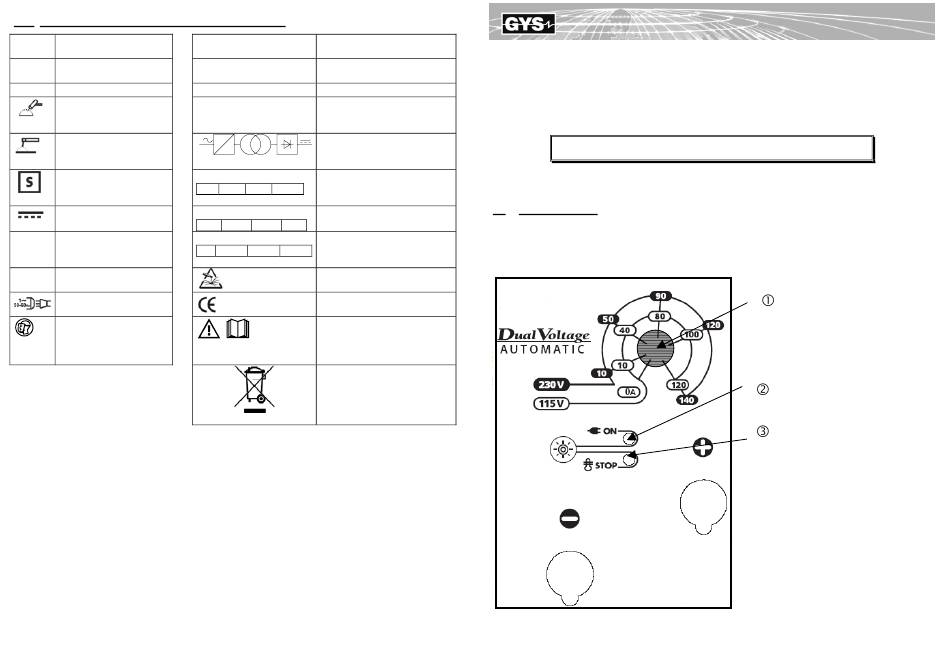

IX / MEANING OF INDICATIONS AND MARKINGS

A Amperes
V Volts
Hz Hertz
Welding with fire-proof
electrode (TIG –
Tugsten Inert Gas)
Welding with covered
electrode (MMA –
Manual Metal Arc)
Protection against
enlarged risks of
electric shock.
Welding direct current.
IP21 Protected against
fingers access to
dangerous parts
U Rated no-load voltage
0
Single phase power
supply 50 or 60Hz.
The electric arc
produces dangerous
rays for eyes and skin
(protect yourself !).
Last update : 22/11/2005 Version : S12
Nomenclature number : 72172
I1max Maximum network power
supply (effective value)
I1eff Maximum network effective
power supply
U1 Network voltage
EN 60 974-1 The device complies with
EN60974-1 standard
relative to welders.
Single phase inverter,
f1
1
converter-rectifier.
f2
X : operating factor at 30%,
60% and 100%.
X 30% 60% 100%
I : corresponding currents
2
I 140A 100A 90A
2
U : conventional voltages in
2
corresponding load.
U 25.6V 24.8V 23.6V
2
Caution, welding can
produce fire or explosion.
The device complies with
European directives.
Caution ! Read the user
manual.
Product for separate
collection.
Do not throw in a domestic
refuse.
OPERATING DIRECTIONS
Declaration of conformity : the equipment described in the following directions complies
with EEC 83/226 (electromagnetic compatibility) and 73/23 (low voltage) directives for a
professional or experienced use.
This conformity is established following the norms EN 60974-1 and A1/A2 of 2003 (low
voltage) and EN 50199 (electromagnetic compatibility)
Thank you for choosing our product ! In order to take the most of your welder, please read
the following instructions carefully :
I / DESCRIPTION
The GYSMI 142DV is a single phase, Inverter, portable welder of 5.3kg, for covered
electrode and TIG in DC. It allows welding with rutiles, basic, stainless steel and cast
iron electrodes. In TIG, it allows to weld most metals except aluminium and alloys.
Last update : 22/11/2005
Nomenclature number : 72172
GYSMI 142DV
Version : S12
