Adjust The Air Shutter - GE JGSP42SETSS Installation Instructions Manual

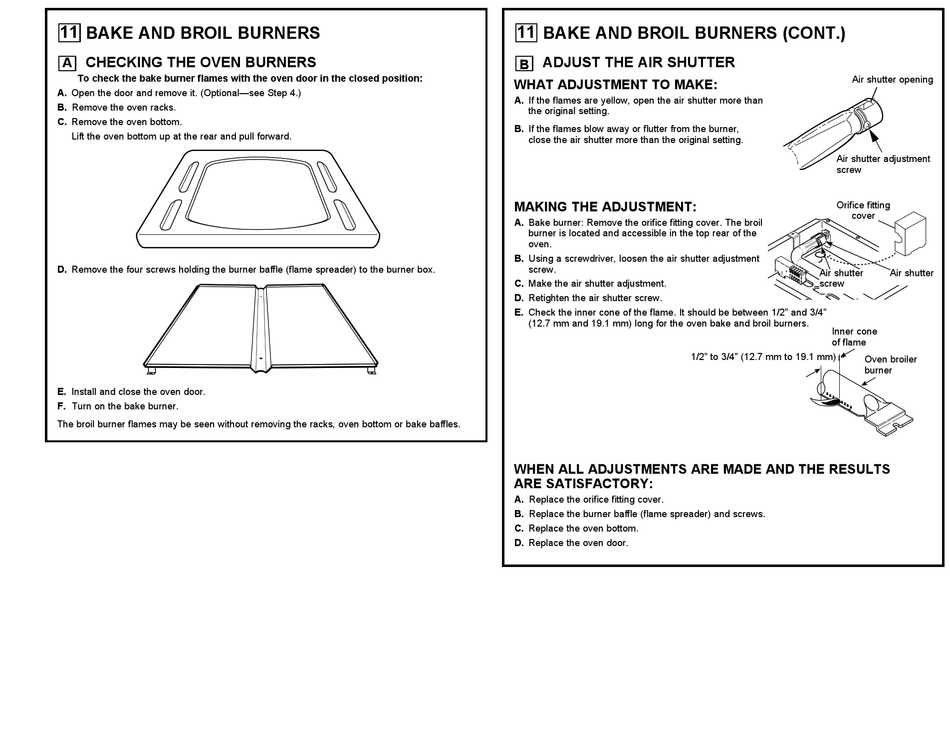

11 BAKE AND BROIL BuRNERs
chEcKINg thE OvEN BuRNERs
A
to check the bake burner flames with the oven door in the closed position:
A. O pen the door and remove it. (Optional—see Step 4.)
B. Remove the oven racks.
c. R emove the oven bottom.
Lift the oven bottom up at the rear and pull forward.
D. R emove the four screws holding the burner baffle (flame spreader) to the burner box.
E. I nstall and close the oven door.
F. Turn on the bake burner.
The broil burner flames may be seen without removing the racks, oven bottom or bake baffles.
11 BAKE AND BROIL BuRNERs (cONt.)
ADJust thE AIR shuttER
B
WhAt ADJustMENt tO MAKE:
A. I f the flames are yellow, open the air shutter more than
the original setting.
B. I f the flames blow away or flutter from the burner,
close the air shutter more than the original setting.
MAKINg thE ADJustMENt:
A. Bake burner: Remove the orifice fitting cover. The broil
burner is located and accessible in the top rear of the
oven.
B. Using a screwdriver, loosen the air shutter adjustment
screw.
c. M ake the air shutter adjustment.
D. R etighten the air shutter screw.
E. C heck the inner cone of the flame. It should be between 1/2" and 3/4"
(12.7 mm and 19.1 mm) long for the oven bake and broil burners.
1/2" to 3/4" (12.7 mm to 19.1 mm)
WhEN ALL ADJustMENts ARE MADE AND thE REsuLts
ARE sAtIsFActORy:
A. Replace the orifice fitting cover.
B. Replace the burner baffle (flame spreader) and screws.
c. R eplace the oven bottom.
D. R eplace the oven door.
Dim. "A"
Air shutter opening
Air Shutter
Air shutter adjustment
screw
Adjustment Screw
Orifice fitting
cover
Air shutter Air shutter
screw
Inner cone
CONO INTERIOR
of flame
DE LLAMA
1/2" TO 3/4" Oven broiler
QUEMADOR PARA
burner
HORNEAR/ASAR
