Hillsdale Furniture BURKARD 101105-102747 Assembly Instructions

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (8) Allen Bolts ؼ" x 1¼"
B (8) Allen Bolts ؼ" x 1½"
C (6) Allen Bolts ؼ" x 1¾"
D (22) Spring Washers ؼ" x 1mm
E (4) Flat Washers ؼ" x 13 x 1mm
F (18) Flat Washers ؼ" x 16 x 1mm
G (1) Allen Wrench ؼ"

PARTS LIST

H (1) Backrest
I (4) Legs
J (1) Footrest
K (1) Apron with Swivel Plate
L (1) Seat

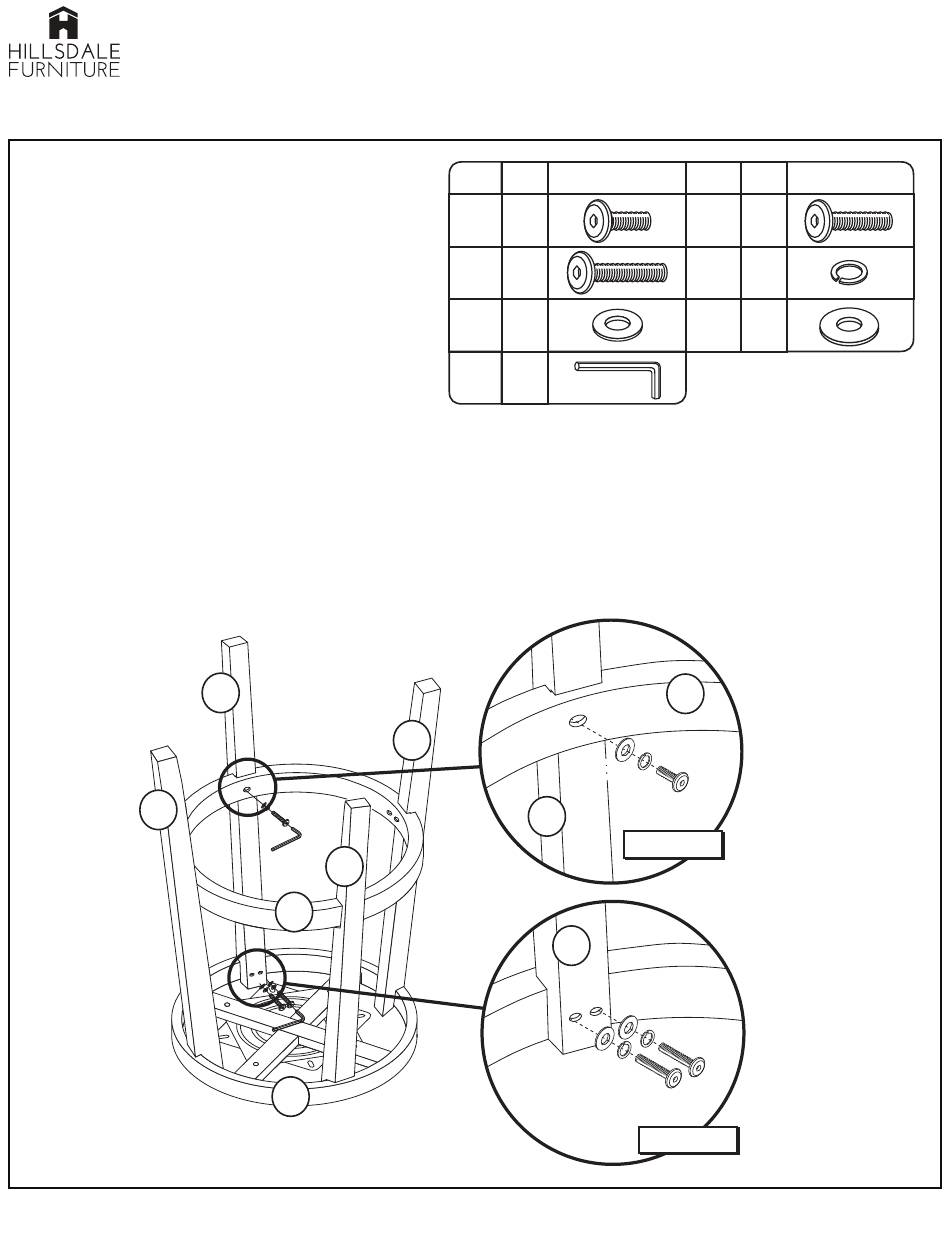

STEP 1 - Figure 1

Begin assembly by attaching the Legs (I) to the Footrest (J) by using 1 Allen Bolt (A), 1 Spring Washer
(D) and 1 Flat Washer (E) per leg.

STEP 2 - Figure 2

Attach the Legs (I) to the Apron with Swivel Plate (K) by using 2 Allen Bolts (B), 2 Spring Washers (D)
and 2 Flat Washers (F) per leg.
I
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
BURKARD WOOD SWIVEL STOOL
Model #101105-102747 (5572-826A) Counter Stool
Model #101105-102746 (5572-830A) Barstool
I
I
J
K
PART QTY HARDWARE
A 8
C 6
E 4
G 1
I
I
I
F F
PART QTY
B 8
D 22
F 18
J
E E
D D
A A
FIGURE 1
D D
B B
FIGURE 2
Date: 02-21-2017
Page 1 of 2
