Hillsdale Furniture 1017-010A Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (8) 30mm Wood Screws
B (12) 1/4" x 50mm Allen Bolts
C (12) 1/4" Flat Washers
D (12) 1/4" Spring Washers
E (1) 1/4" Allen Wrench
PARTS LIST
G (1) Back Panel
H (2) Side Panels
I (1) Front Rail
J (1) Rear Rail
K (14) Plywood Slats
H
B B
D D
C C
C C
D D
B B

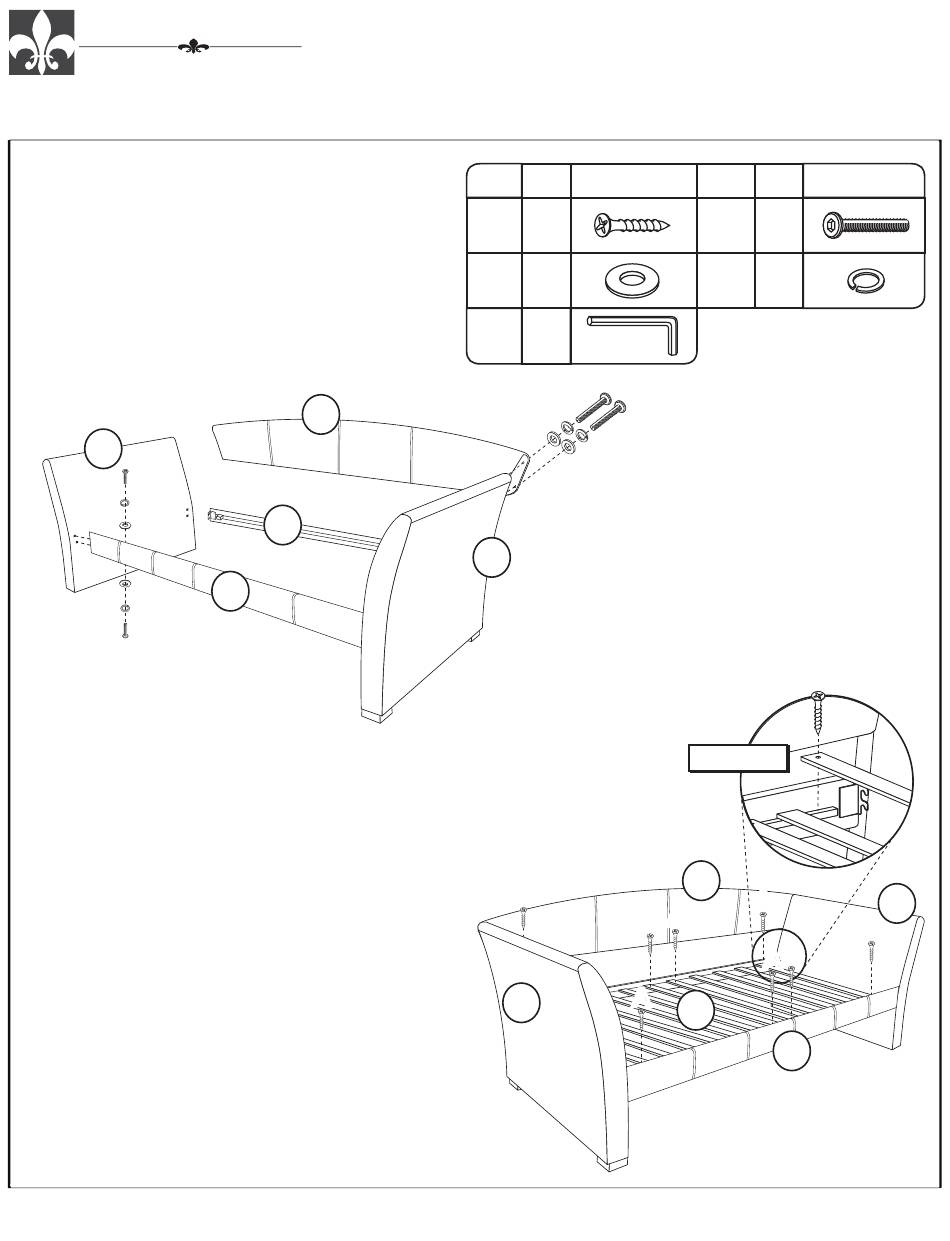

STEP 1
Begin assembly by attaching the
Back Panel (G) to the back of each
Side Panel (H) by aligning the holes and securing with 2 Allen Bolts (B), 2
Spring Washers (D) & 2 Flat Washers (C) from the backside per each end.
Do not fully tighten bolts for this step.
STEP 2
Next attach the Rear Rail (J) to the back of each Side Panel (H) by
aligning the holes and securing with 2 Allen Bolts (B), 2
Spring Washers (D) and 2 Flat Washers (C) per
each end. Do not fully tighten bolts for this step.
STEP 3
Attach the Front Rail (I) to the inside of each Side
Rail (H) in the front by aligning the holes and
securing with 2 Allen Bolts (B), 2 Spring Washers
(D) and 2 Flat Washers (C) per each end. Tighten
all bolts from Steps 1 through 3 using the Allen
Wrench (E) that has been provided.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
SIESTA UPHOLSTERED DAYBED
G
J
I
Model #1017-010A Sides
Model #1017-020A Back
PART QTY HARDWARE
A 8
C 12
E 1
B B
D D
C C
STEP 4
Insert both ends of each Plywood
Slat (K) onto the Front and Rear
H
Rails (I & J) and secure with 8
Wood Screws (A). See Figure 1.
The assembly is now complete.
A A
H
Date: 04-15-2013
PART QTY
B 12
D 12
A A
FIGURE 1
G
A A
A A
A A
A A
A A
A A
K
I
*
Trundle Sold Separately
Model #1719-030 Trundle Panel
Page 1 of 1
