GPS Replacement Instructions

Before you begin:

Unplug the Eagle Controller to disconnect.

Remove the 2 Phillip screws at the top of the Skew Assembly box that is located behind the reflector. Remove

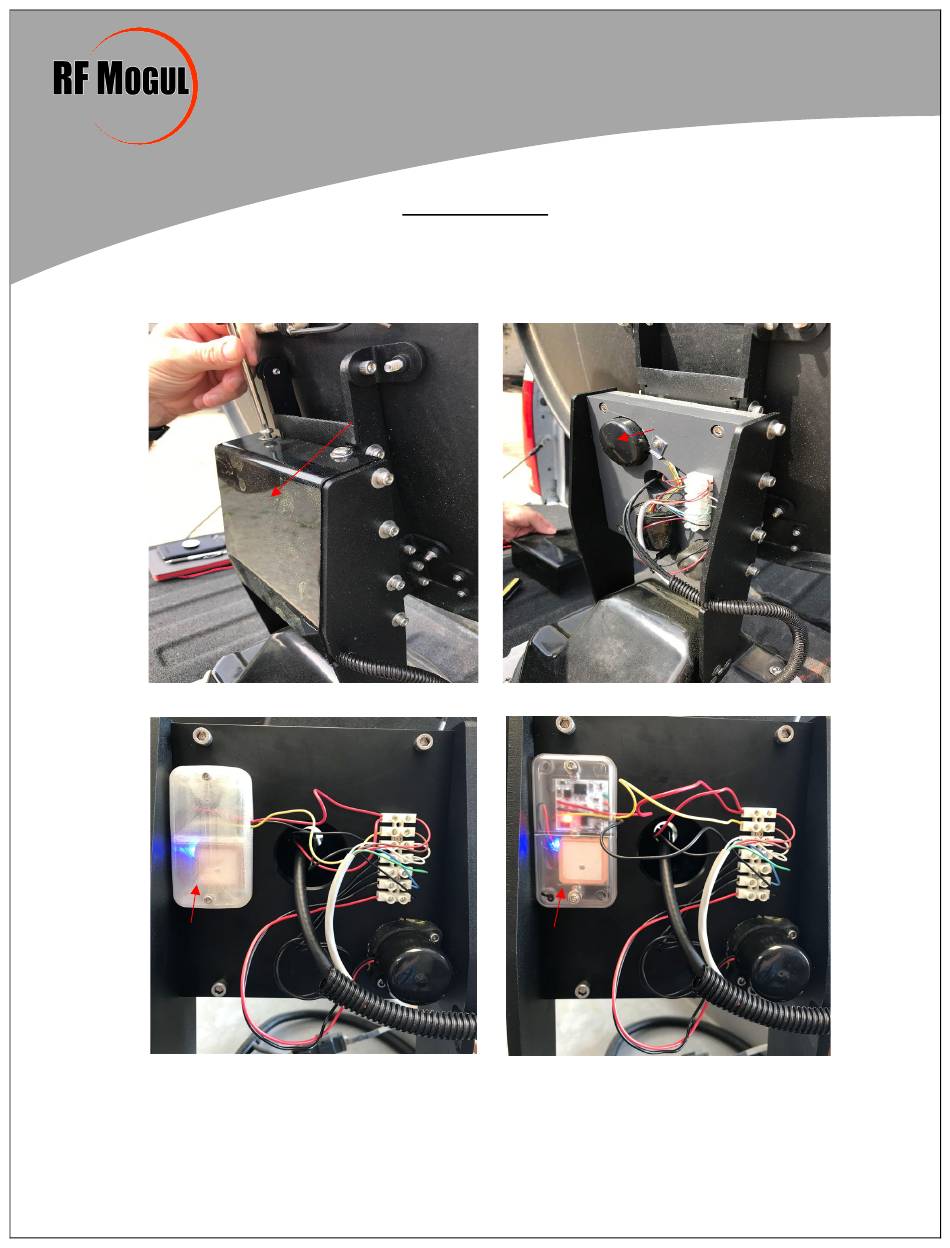

the Skew cover exposing the GPS. (The GPS can look like any of the 3 GPS photos below)

Skew Assembly Box

GPS

Table of Contents

Do you have a question about the Eagle and is the answer not in the manual?

Page 1 GPS Replacement Instructions Before you begin: Unplug the Eagle Controller to disconnect. Remove the 2 Phillip screws at the top of the Skew Assembly box that is located behind the reflector. Remove the Skew cover exposing the GPS. (The GPS can look like any of the 3 GPS photos below)
Page 2 1) Using a jewelry screwdriver, unscrew 2) Move to the wire holder (on old GPS the top three left hand side wire holes. version) and loosen the screw to turn the 2 Red, 1 yellow, and 2 black. holder counterclockwise. Wire Holder 3) Remove the GPS cap.
Page 3 = No GPS satellites locked steady light = there is no blinking = 2-3 satellites locked controller communication When blue light goes out it means all satellites locked. Please contact RF Mogul Tech Support if you have questions at: Phone: 801-895-3308 Email: techsupport@rfmogul.com Website:...
