Owner's Manual

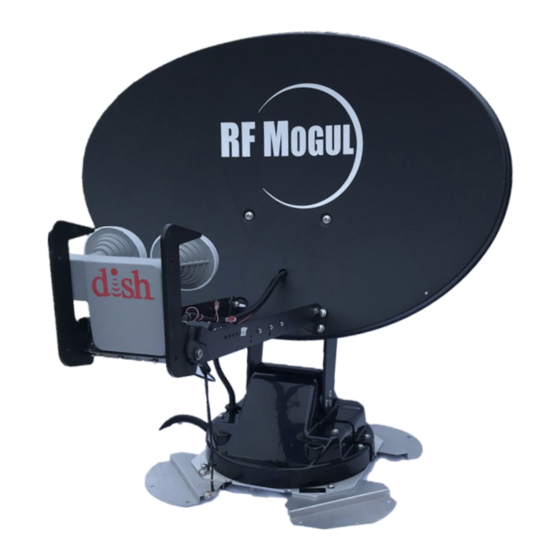

Eagle RV TV Antenna
Please have the following information available
when contacting Tech. Support.
Controller Serial #_______________________________
Antenna Serial # _______________________________
Date of Purchase: _______________________________
Installer's Name: ________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle and is the answer not in the manual?

Questions and answers

Related Manuals for RF Mogul Eagle

Summary of Contents for RF Mogul Eagle

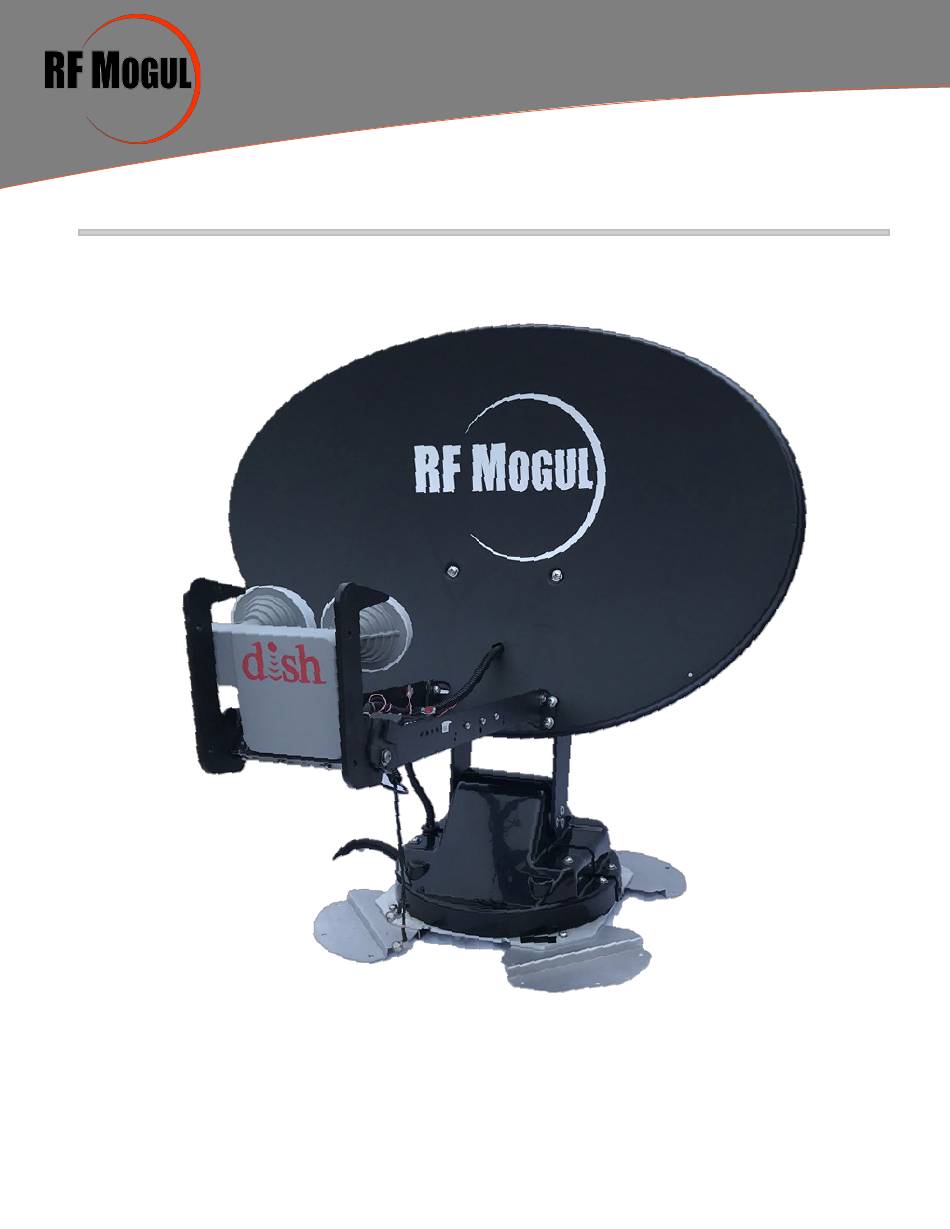

  • Page 1 Owner’s Manual Eagle RV TV Antenna Please have the following information available when contacting Tech. Support. Controller Serial #_______________________________ Antenna Serial # _______________________________ Date of Purchase: _______________________________ Installer’s Name: ________________________________...
  • Page 2 The Eagle TV Automatic Antenna System provides RV customers the choice of their preferred Satellite TV provider all on the same mount. The viewing experience is HDTV and 4K UltraHD utilizing multiple receiver's and DVR’s simultaneously. It is a true at home experience in the comfort of your RV! Please take the time to read this manual in its entirety before installing or operating your new TV Satellite antenna.

  • Page 3: Table Of Contents

    SHAW Connection Diagram………………………………………………..…….……………..…….……...20 Dish DPH LNB Connection Diagram…………………………….…….………..………………..………..21 Dish Hopper-3 Connection Diagram………………………..………………..…………………..…..…..22 Controller Operations …………….…………………….……………….………………..…….….….……….23 Appendix ……………………………………………….………………………….……………….…………….…..27 Warranty and Registration.………………….……………………………….…………………….….……..28 P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 4: Safety And Warnings

    OBSTRUCTIONS DURING OPERATION The Eagle TV Satellite requires an unobstructed view of the southern sky for the best signal reception. Buildings and trees are examples of such obstructions that may prevent strong signal strength. Also check that there are no obstructions (such as tree limbs) above the antenna that will prevent it from raising.

  • Page 5: Clearance Requirements

    Clearance Requirements The arm of the Eagle antenna extends 26” from the center of the base. Ensure there is adequate rotational clearance for the antenna to safely operate. 37 Inches 29 Inches 8.5 Inches 13.5 Inches Distance for installing LNB...

  • Page 6: Eagle Tv Parts And Movement Definitions

    Azimuth (AZ) Skew (SK) (travel Raises Up and Down Rotates CW and CCW Reflector Tilt Up and Down position) P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 7: Eagle Tv Assembly Instructions

    Eagle TV Assembly Instructions Mounting the Reflector and the LNB Arm to the Base Assembly Your Eagle Antenna will be shipped in 2 separate boxes. A Reflector box and a Mount box. Reflector Box Mount Box Locate the Control Cable and Mounting Hardware enclosed in the weather covered bag in the Mount Box and remove the Control Cable from the bag.
  • Page 8 Using wire strippers, strip ½” off the exposed colored wires as shown below. Cut off excess cable covering Strip colored wire ends ½” P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 9 Make sure the color code of the coax connected to the LNB is the same as the color code connected at the antenna base. Fill all coax connectors with dielectric grease to prevent corrosion! P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 10 ¼”-20 x ¾” Philips SS screws that are provided. Align the remaining 4 holes then tighten the top 2. P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 11 12VDC.) Tuck the Scotch-Lok connectors through the hole in the dish. LED Connector 10 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 12 (Applies to DirecTV may differ w/ Dish Slimline Eastern & Western Arc LNB) These screws are used to attach the LNB. Remove two inner screws 11 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 13 Slide the LNB into the LNB Brackets and insert the two (2) screws back into the LNB. 12 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 14 It is important that the brackets are properly orientated during assembly. SHAW Dish Network DirecTV Bell TV 13 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 15: Eagle Tv Installation Instructions

    10. 1 tube of dielectric compound (Boss Products Accumetric, LLC www.bossproducts.com) 11. 1 tube clear silicone #315 (Boss Products www.bossproducts.com 12. Split loom cable wrap 14 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 16 This will help prevent water penetration and allow the antenna to sit level. Caution: The Eagle antenna must be oriented toward the front of the vehicle. The antenna reflector must face the rear of vehicle it is being installed on (see photo after step 12) to prevent damage to the antenna system due to wind forces while the vehicle is in motion.
  • Page 17 12) Using a small diameter drill bit make a small pilot hole in the roof where the cabling will pass through into the control cabinet in the vehicle. 16 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 18 (Attach the Green 12 Pin Connector in accordance with instructions on the bottom of the Eagle Controller or figure 2 on pg. 27) If the wires are placed too far into the connector, it will clamp down on the outer plastic shielding, and will not make good connection to the wire.
  • Page 19 See the following diagrams below to get a better idea on the cable connections based on the service provider selected. Perform a “Test Dish” (Option 9 in the Menu) to marry your Eagle Controller to the new Mount. This is an important function, do not ignore.

  • Page 20: Directv Swm Connection Diagram

    A 4 Port splitter is shown. 110 Volts AC Receiver #1 Receiver #2 Receiver #3 Receiver #4 19 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 21: Shaw Connection Diagram

    SHAW Connection Diagram The SHAW system can be ordered with 4 coax cables. Standard configuration of the RF Mogul Antenna System includes 3 coax cables unless it is specifically ordered with 4. Most RV installations can operate with 3 (2 receivers, 1 Non-DVR and 1 Dual Tuner). Some SHAW DVR’s take only 2 coax cables as single tuner Non-DVR receivers use only 1 coax.

  • Page 22: Dish Dph Lnb Connection Diagram

    Antenna to the controller! Eagle Controller Receiver LNB Power Inserter DC Pass Channel Stack 4-Way Splitter 21 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 23: Dish Hopper-3 Connection Diagram

    Note: Joey may be Receiver LNB wired or wireless! To ODU To Host Joey 2.0 Hybrid Solo Hub Hopper 3 22 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 24: Controller Operations

    REC indicates the receiver coax is attached to the controller. VDC indicates power is being supplied to the controller by the provided Power Supply. 23 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 25 If you have DirecTV SWM the coax must run directly to the controller uninterrupted to the connection marked "TO LNB" on the Eagle Controller. (It may be necessary to buzz out the coax cables going through the mount be to determine which one is to be connected to the SWM LNB since only one cable is required but multiples are supplied).
  • Page 26 • 6: Move Azimuth - pressing and holding the appropriate button will manually move your mount in azimuth (Up arrow CLOCKWISE, Down arrow COUNTERCLOCKWISE) 25 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...
  • Page 27 REMEMBER: 90% of all problems are a result of incorrect CONNECTIVITY or CONFIGURATION. 26 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 28: Appendix

    Exit the Menu and press “Search” to find satellite. • Call RF Mogul support to have the GPS error resolved 27 | P a g e RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20...

  • Page 29: Warranty And Registration

    It does not apply if the physical install of any RF Mogul Systems or components by a Technician that is an independent company not authorized by RF Mogul. The installer shall bear full responsibility for the entire installation process.
  • Page 30 The LNB (Low Noise Block Converter) is NOT covered by RF Mogul. This item is shipped as a convenience to the installer and user and are not considered part of the RF Mogul system. RF Mogul does not cover expedited shipping charges. RF Mogul will ship ground freight using common carriers at their discretion.
  • Page 32 EAGLE TV PRODUCT REGISTRATION FORM Please fill out the form and remit back to RF Mogul 3604 S. Via Terra Salt Lake City UT. 84115 rfmogul.com/eagle-tv-registration Or register your product online: Name:_________________________________________________________________ Address:_______________________________________________________________ ________________________________ ___________________ _____________ City State/Prov Zip/Postal Code...
