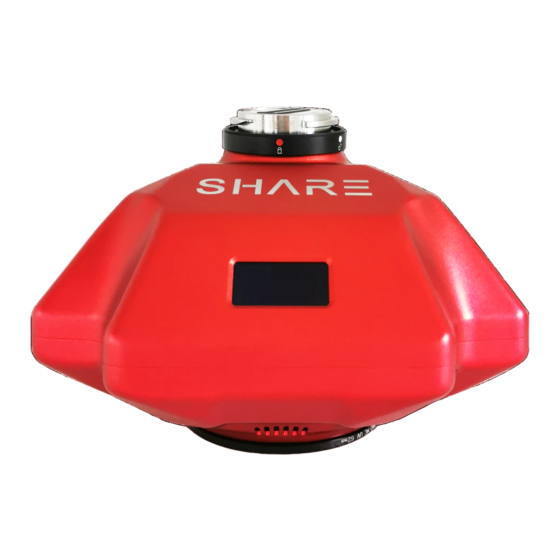

- Page 1 SHARE 102S PRO V2 User Manual V1.4 2022.05 SHENZHEN SHAREUAV TECHNOLOGY Co., Ltd.
- Page 3 UAV TECHNOLOGY CO., LTD. (abbreviated as “SHARE UAV”). SHARE UAV has the final interpretation right of this document and all other collateral documents. SHARE UAV has right to update, modify or terminate the content of this document without prior notice. For update information, visit website http://www.shareuavtec.com/en/ and click on the product page for this product.
-
Page 4: Table Of Contents
Contents 1. Product Overview..........................1 1.1 Introduction...........................1 1.2 Features..........................2 1.3 In the box..........................3 1.4 Camera Parameters....................... 3 2. Installation............................4 2.1Camera Introduction......................4 2.2 Installation..........................5 2.3 Camera Connection.......................6 3. Camera Operation........................... 6 3.1 Powering On.......................... 6 3.2 Taking Photos........................8 3.3 DJI Pilot Setting........................9 3.4 Repair...........................11 3.5 Data Copying and Deleting....................11... -
Page 5: Product Overview
The 3D data of obtained from the SHARE 102S PRO V2 can realistically reflect the appearance, position, height and other attributes of ground features. Enhancing immersion and making up for the shortcoming of low artificial simulation of traditional modeling. -
Page 6: Features
* Support DJI Terra, achieving GCP free with high precision * Camera firmware is automatically upgraded online through Share UAV Data Manager * SHARE UAV Data Manager software provides flight data management of captured imagery * 1.14 inch TFT screen showing working status instantly. -
Page 7: In The Box
1 pc 1 pc 1 pc 2 pcs 4 pcs 1 pc 1 pc 1.4 Camera Parameters SHARE 102S PRO V2 Camera Parameters Power Supply DC 12 ~ 48 V Endurance Power Supply By Drone Power On/Off Auto On/Off Data Transfer... -
Page 8: Installation

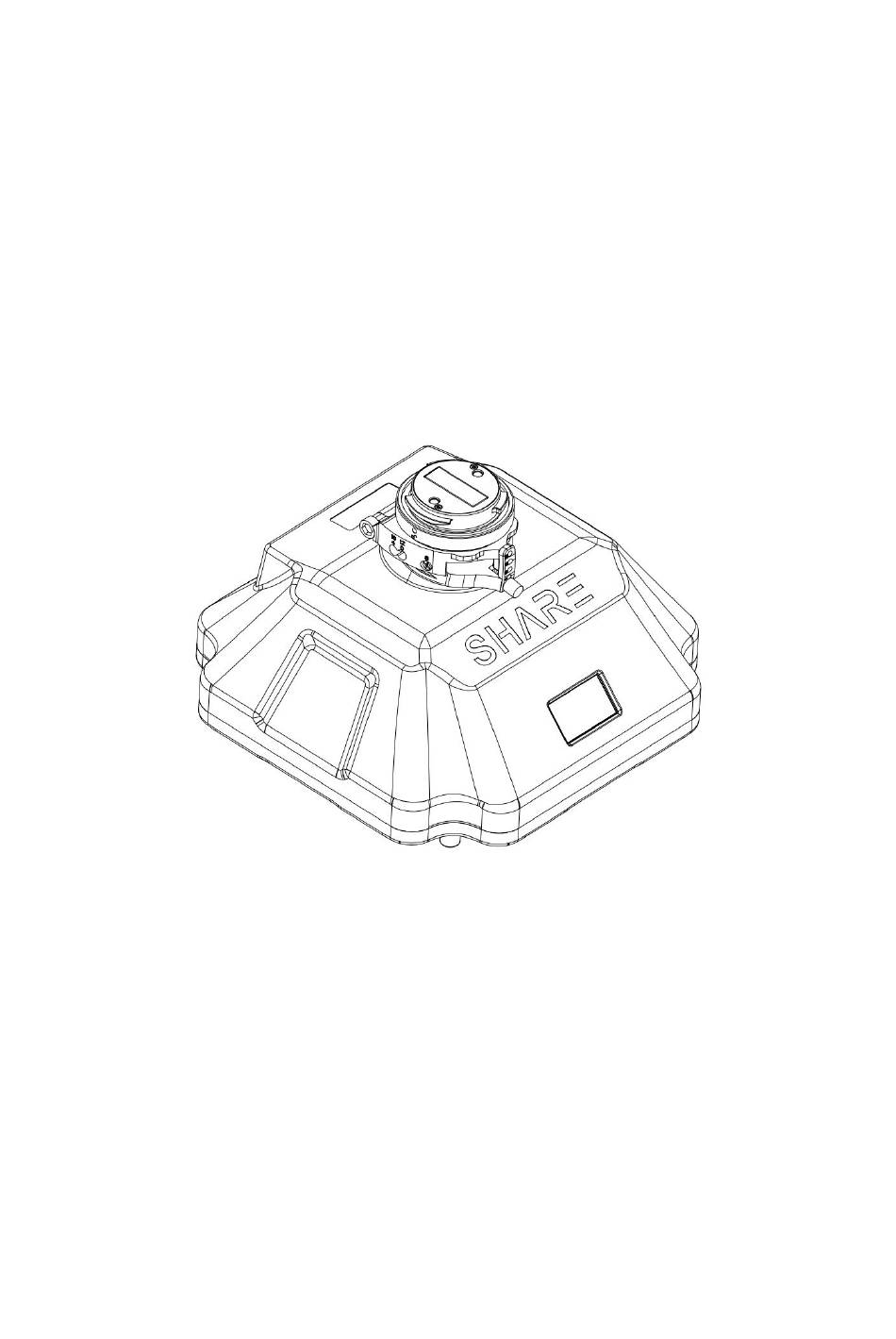

2. Installation 2.1Camera Introduction The SHARE 102S PRO V2 has an TFT display on the front. When installing the camera, ensure that the display is aligned with the aircraft nose. The lens near the front of the camera is the back-view, and the drive letter is named after the lens Angle orientation, which is opposite to the lens mounting position. -
Page 9: Installation
2.2 Installation Installation Method 1： (1) To remove SkyPort cover of the drone, press and hold the release button and turn the cover so it can be removed. (2) Remove SkyPort cover of the camera, align the white point of the camera with the red point of the drone, and embed it in the installation position. -
Page 10: Camera Connection
2.3 Camera Connection Pic 4 Camera Cable J30J-15P Definition： 3. Camera Operation 3.1 Powering On The camera is powered directly from the drone and is switched on and off automatically. The suggested power supply voltage is DC 12V-48V. When the camera is working, the instantaneous power of the power supply must reach more than 60 W to ensure the normal operation of the device. - Page 11 Steps of power on: Mount the camera on the drone, and make sure the camera is secured ； (2) Turn on the drone, the camera will start automatically and enter the self-test. The total startup duration of the camera will be about 35s, the camera will beep once the startup is completed.
-
Page 12: Taking Photos
Screen Storage drive 3.2 Taking Photos Take working with DJI M300 RTK for example: Pic 6 Pilot screen（indoor） Pic 7 M300 RTK Remote Controller Side Channel Settings The left bottom window in When the camera is on, the camera can be used to shoot. -
Page 13: Dji Pilot Setting
DJI Pilot for route planning and set Take working with DJI M300 RTK for example,u flight parameters. Pic 8 Pilot APP Mission Planning （1）SHARE 102S PRO V2 ： Open DJI Pilot→Select Mission Flight→Create Routes→Mapping Mission→Plan flight Area→Select Camera→Input Mission Parameters Click save after finishing setting （2）Normal Parameter Setting：... - Page 14 Pic 9 Create New Camera SHARE 102S PRO V2 ParameterS （3）Payload Setting Enter the payload setting menu, which has those functions: Items Functions Display Real-time Data Real-time data window hide/show 【default: OFF】 (ON/OFF) ENTER Enter button, using when the camera reports an error...
-
Page 15: Repair
A. Automatic repair: user can restart the device, and the camera will automatically initiate the repair. B. If the problem can not be repaired by method A, users could use SHARE Data Manager to format the storage card then restart the camera again. -
Page 16: Camera Maintenance
6. Click disconnect, the drive letter pops up to disconnect the data line. 【 Precaution 】 Please delete the drive letter file by using Share Data Manager. Do not delete a drive letter file at will. The data cannot be restored after being deleted or initialized, please operate carefully. -
Page 17: After Sales
12. Please copy and delete data through Share Data Manager to reduce the debris of junk files. After using for a period of time, it is recommended to initialize and clean the camera for one time to increase the service life of the memory card. -
Page 18: After-Sales Service
Party A: Buyer of Products Party B: Shenzhen Share UAV Technology Co., LTD The after-sales service content shall refer to the after-sales service regulations of Share UAV; During the warranty period, Party B will provide Party A with regular technical support free of charge, and bear the related costs of repair and replacement caused by product quality problems. - Page 19 If you have any questions, please contact Shenzhen Share UAV Technology Co., LTD After-sales service and technical support tel: 0755-23216686 (working days 9:00-18:00 Beijing time)
- Page 20 Official Website YouTube Facebook If you have any questions about the product Please contact us via below email： INFO@SHAREUAVTEC.COM SHENZHEN SHARE UAV TECHNOLOGY CO.,LTD...
