- Page 1 Mapping Camera SHARE 6100 User Manual V1.0 2020.11 深圳赛尔智控科技有限公司 SHENZHEN SHARE UAV TECHNOLOGY CO., LTD.
- Page 2 UAV TECHNOLOGY CO., LTD. (abbreviated as “SHARE UAV”). SHARE UAV has the final interpretation right of this document and all other collateral documents. SHARE UAV has right to update, modify or terminate the content of of this document without prior notice. For update information, visit website http://www.shareuavtec.com and click on the product page for this product.

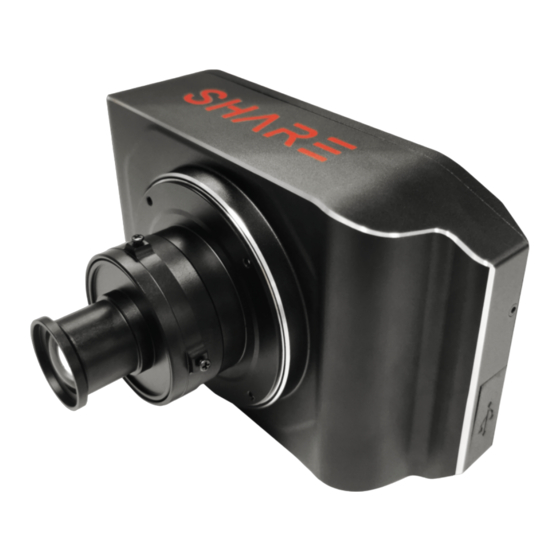

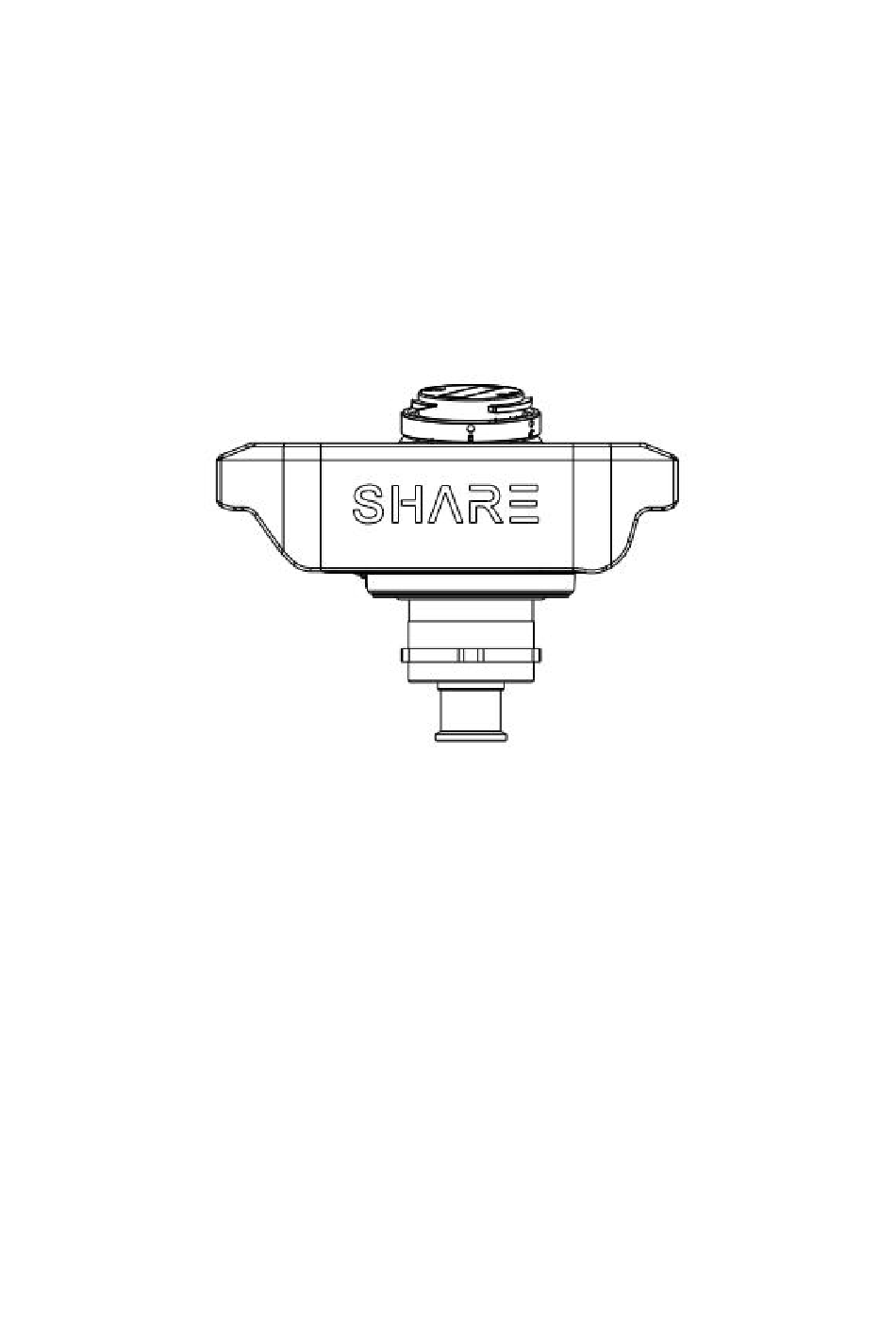

- Page 3 Lens Cleaning Cloth x1 SHARE 6100 SHARE 6100 is equiped with a 61MP full frame sensor and a professional 40mm mapping lens, which is specially designed for aerial photogrammetry. It’s seamless docking with DJI Matrice 210 RTK V2 & DJI Matrice 300 RTK. It’s easily operated by DJI Pilot and it supports real-time image transmission.
-
Page 4: Camera Operations
M300 RTK as an example. Step of power on: 1) Mount the SHARE 6100 on the DJI drone, and please make sure the installation is firm. 2) Turn on the power of the drone, the camera will start to self-est. It will take about 35s to power on. - Page 5 Take Photo After camera turned on, camera will be able to take photo. Since the focus is infinity, the real-time images transmission on DJI Pilot will show dark image. User can press the ‘photo’ button on controller to test the photo function.
-
Page 6: Camera Setting
Open DJI Pilot – Mission Flight -- Create a Route -- Mapping -- Create a mapping area – Custom Camera – Add Camera – Camera Setting -- Overlap setting 2) Parameters of SHARE 6100 Photo resolution (W) Sensor size (W) - Page 7 Payload Setting Function Display Real-time Data Hide or dispaly the real-time data window on DJI Pilot Mode Switch the photo mode (A, S, M), default setting is M Shutter Shutter speed (1/640, 1/800, 1/1000, 1/1250) On/Off Control camera powr on/off, default setting is on Enter The enter button, same as the button on SONY camera Menu...
-
Page 9: Specifications
Specifications General Product Name SHARE 6100 Dimensions 136 x 103 x 76 mm Weight Approx. 380 g IP Rating IP4X Supported Aircraft Matrice 210 RTK, Matrice 300 RTK Operating Temperature -10℃~40℃ Humidity Camera Sensor size Full frame Effective Pixels 61 MP Pixel size 3.7 um...
