- Page 1 SHARE 6100 Pro User Manual V1.2 2021.01 SHENZHEN SHARE UAV TECHNOLOGY Co., Ltd.
- Page 2 The copyright of this document and all other collateral documents belong to SHENZHEN SHARE UAV TECHNOLOGY CO., LTD. (abbreviated as “SHARE UAV”). SHARE UAV has the final interpretation right of this document and all other collateral documents. SHARE UAV has right to update, modify or terminate the content of this document without prior notice.
-
Page 3: Table Of Contents
Contents 1. Product Overview ........................1 1.1 SHARE 6100 Pro Introduction ....................1 1.2 Features ............................1 1.3 In the box ............................ 2 1.4 Camera Parameters ........................3 2. Installation ............................. 3 2.1 Camera Introduction ......................... 3 2.2 Camera Installation ........................4 3. -
Page 4: Product Overview

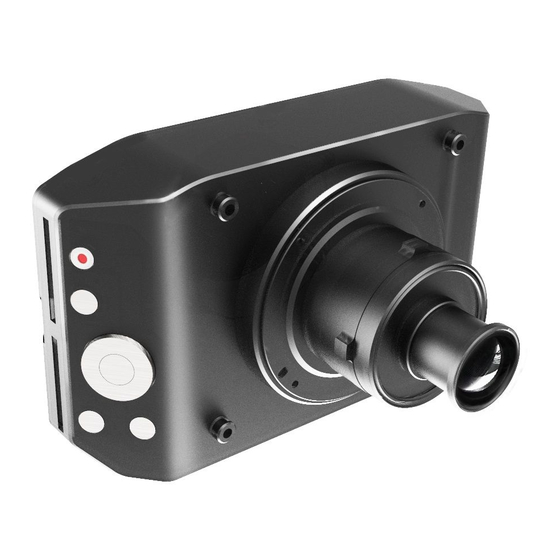

1. Product Overview SHARE 6100 Pro camera with gimble is a surveying and mapping product equipped with 61 million pixel sensor and professional-grade surveying and mapping lens, with vertical angle as the main direction of image acquisition. At the same time, the use of the... -
Page 5: In The Box
* SHARE Data Manger management flight intelligently * Real-time image transmission display, the data can display on the ground station synchronously. * Adjust the parameter via DJI Pilot app (or buttons) * Pluggable and removable card design, equipped with USB 3.0 card reader for data... -
Page 6: Camera Parameters

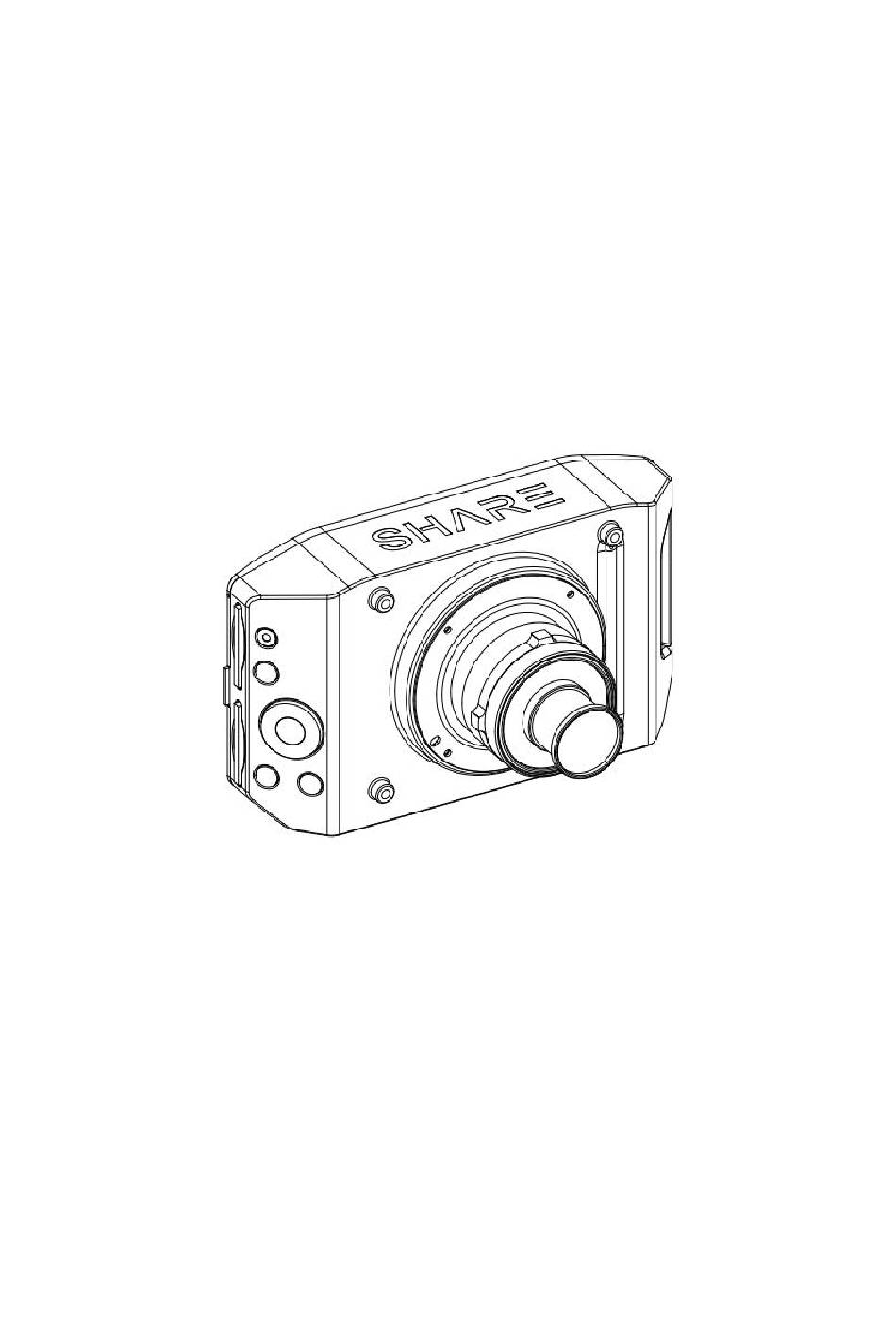

≤ 95% Size 130×76×103 mm Measurement Weight ≈360 g 2. Installation 2.1 Camera Introduction SHARE 6100 Pro Camera housing radium carved with the "SHARE" direction is defined as the front, installation with the aircraft nose in the same direction. Photo drive... -
Page 7: Camera Installation
(SD card ) should be named "3 Down View", POS information drive (TF card) should be named "GPS" to be compatible with SHARE Data Manager. The camera is equipped with a interface, which is highly compatible with DJI M300 RTK and M210 RTK V2. - Page 8 2.2.2 J30J-15 Interface Pic 2 J30J-15 J30J-15 Connector Definition： Shutter and Hot PPS Pin TTL Pin Shoe Pin Power Pin Name J30J-15 C/A2547H-4 E/A2547H-5 XT30 D/A2510HM-3P- PIN1: Shutter Power Line PIN1&2:NC PIN2: Hot shoe Connect to 1-DC PIN1:PPS PIN3:GND signal + Function Camera 13.6-48V...
- Page 9 Pic 3 Mounting Holes at the Bottom of the Camera (1) Four M3 threaded holes are arranged at the bottom of the camera, with a depth of 3.5mm and distributed in the rectangular corners of 70×58 mm. (2) Four threaded holes can be used for installing and fixing rubber damping ball, also can be designed according to the different structure of the flight platform installation structure.
-
Page 10: Camera Operation
3.1.1 Power by DJI SkyPort, turn on automatically when drone is on. steps of power on: （1）Mount the 6100 Pro on the drone, and make sure the installation is firm； （2）Turn on the drone, the camera will start automatically and enter the self-test. The total startup duration of the camera will be 40 S, during startup, the blue indicator blinks quickly. -
Page 11: Take Photo
15W to ensure the normal operation of the device. Steps： Mount the 6100 Pro on the drone, and make sure the installation is firm （1） ； （2）Turn on the drone, the camera will start automatically and enter the self-test. The total startup duration of the camera will be 40 S, during startup, the blue indicator blinks quickly. -
Page 12: Camera Setting
Open DJI Pilot – Mission Flight -- Create a Route -- Mapping -- Create a mapping area – Custom Camera – Add Camera – Camera Setting -- Overlap setting （2）SHARE 6100 Pro parameter： Photo resolution (W) Sensor size (W) Focal length 9504px 35.7mm... - Page 13 Pic 8 Create Customize Camera...
- Page 14 （3）Payload setting Pic 9 Payload Setting Click the three points in the upper right corner of the screen and select Payload. Functions: Function Real-time data(On/Off) Real-time data window display/hide Mode Camera mode switch (A,S,M), default is M Shutter Shutter speed(1/640,1/800,1/1000,1/1250) On/Off Camera On/Off (default Off) Confirm button...
-
Page 15: Camera Repair
Pic10 Buttons You can also change the basic parameters (Settings) of the camera through the external button of the camera, as shown in Pic 10. 3.4 Camera Repair (1) Common problems in camera use ①Image database file error ②Writing into the memory card error ③Can not find Image database file (2) There are two repair methods：... -
Page 16: Share Data Manager
Operation System Windows 7/10 4.3 Operation Process The main operation of SHARE Data Manager is to copy photo data from the camera and write shooting information and geographic information into photos. The operation process of copying photos is as follows:... -
Page 17: Software Installation
(2) Once the installation is completed, SHARE DATA Manager creates two shortcuts on the desktop: "SHARE Data Manager" and "SHARE Tool Box". Please log in to the website below to view the latest online tutorial of SHARE Data Manager： http://bbs.SHAREuavtec.com/upload/software/SHAREElfInstaller.exe... -
Page 18: Software Function
4.5 Software Function Open the SHARE Data Manager on the desktop, select the camera model as SHARE 6100 Pro, select the UAV model as the actual flying model, and click OK to enter the interface to wait for connecting device. -
Page 19: Functions
The photos and POS data are stored separately in the camera. The photos can be associated with the corresponding POS , the POS can be written into the photos when copying data through the SHARE Data Manager. 4.6 Functions 4.6.1 Copy Flights Copying flight is the copying of POS data and photo data from one or more flights from the camera to the computer and pre-processing for modeling. - Page 20 （3）Copy Settings complete, click Start Copy to enter the copy process interface. The current copy progress and remaining time are displayed on the page.
- Page 21 （4）Under normal circumstances, the copy is completed when the copy progress reaches 100%. At this point, all the images have been copied to the save folder and the stand project files have been generated. （5）Open folder and view the copied imagery data. There are several flight folders and an Excel file that can be imported into ContextCapture as a block file.
-
Page 22: Clean Flights
4.6.2 Clean Flights Clearing flights is the function of clearing old, captured imagery from the camera. The cleaning process is as follows: （1） Select “Clean Flight”; （2） Click the Clean Flights button, the software will pop up a tip window, asking if you want to clean the selected flights to avoid the error deletion. -
Page 23: Firmware Upgrade
【Attention】 (1) The old photo data in the camera should be removed by SHARE Data Manager. Manual deletion of the photo data is not recommended. Manually deleting data will cause the camera to fail to take pictures. (2) Once the data in the camera is removed, it cannot be restored. Therefore, before removing data, it is important to check whether the photos contained in the details of the flight are the ones to be deleted to avoid deleting flights by mistake. -
Page 24: Camera Information
This information is important for the pre-processing of photo data, which can be viewed in the SHARE Data Manager and can be alerted in case of unexpected data loss. Don't worry if you accidentally delete the camera info, we have saved an online backup for you, which can be downloaded to the camera using the SHARE Data Manager. -
Page 25: After Sales
(2) Packaging SHARE 6100 Pro Case layout Please keep the cover of SHARE 6100 Pro transport case upword and do not place it upside down. Avoid severe vibration and turbulence during transportation. -
Page 26: After-Sales Service
Party B: Shenzhen SHARE UAV Technology Co., LTD The after-sales service content shall refer to the after-sales service regulations of SHARE UAV; If you have any questions, please contact Shenzhen SHARE UAV Technology Co., After-sales service and technical support tel: 0755-23216686 (working days 9:00-18:00 Beijing time) - Page 27 Official Website YouTube FaceBook If you have any questions about the product Please contact us via email： INFO@SHAREUAVTEC.COM SHENZHEN SHARE UAV TECHNOLOGY CO.,LTD...
