Summary of Contents for SHARE PSDK 102S V2

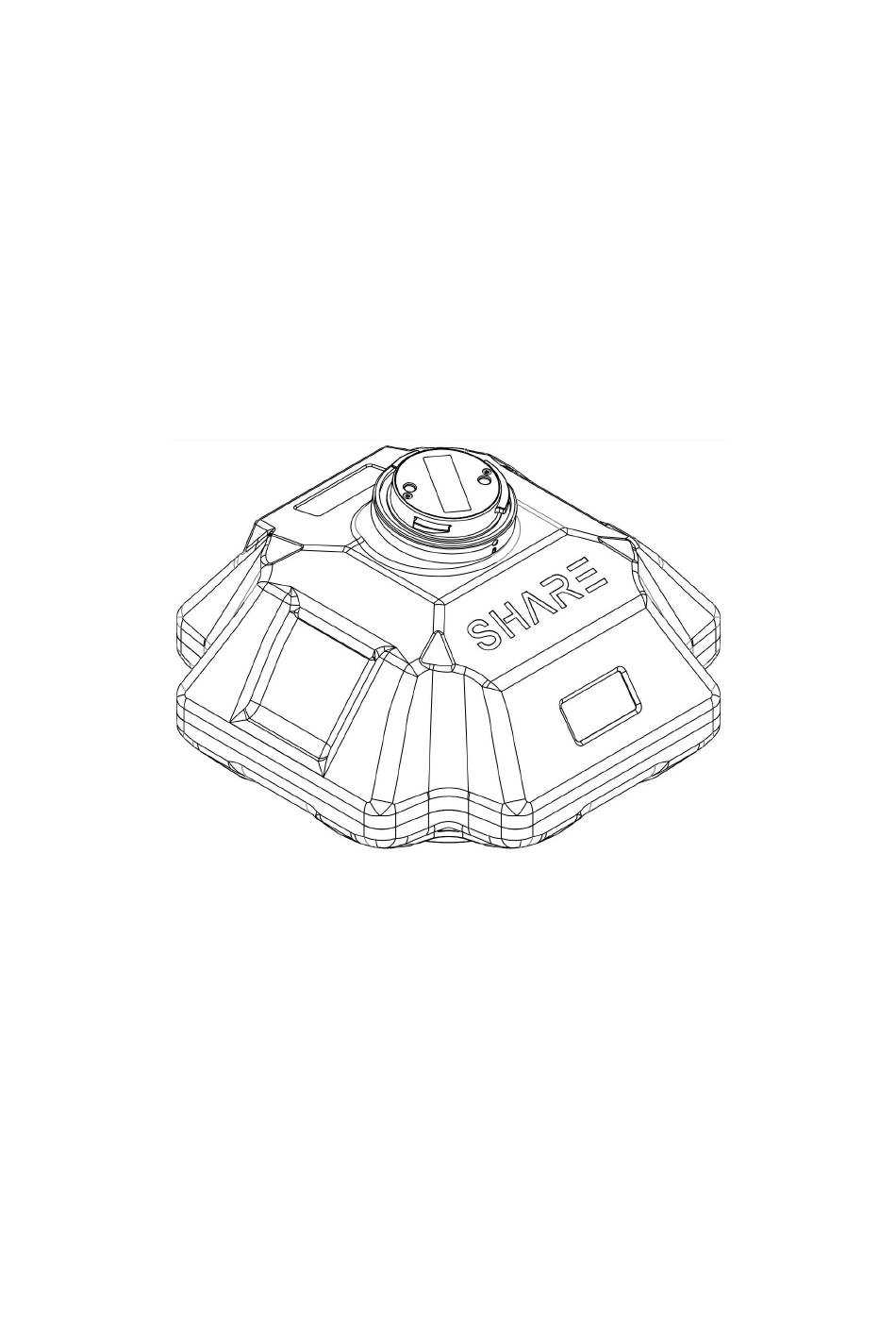

- Page 1 PSDK 102S V2 - 5 Lens Oblique Camera User Manual V1.3.2 2021.09 深圳赛尔智控科技有限公司 SHENZHEN SHARE UAV TECHNOLOGY Co., Ltd.
- Page 2 Do not allow people under the age of 18 to use the PSDK 102S V2. Do not modify or disassemble the PSDK 102S V2. SHARE UAV accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product.
-
Page 3: Table Of Contents
3. Camera Operation........................... 4 3.1 Powering On.......................... 4 3.2 Taking Photos........................6 3.3 DJI Pilot Setting........................7 3.3.1 DJI Pilot Mission Planning - PSDK 102S V2..............7 3.3.2 PSDK 102S V2 parameter................... 8 3.3.3 Payload setting......................8 3.4 Repair...........................10 4. Share Data Manager........................10 4.1 Introduction.........................10... -
Page 4: Product Overview
Storage: 1280GB The PSDK 102S V2 features five professional mapping sensors with a total pixel count of 120 million. It uses an advanced and professional integrally-formed structure in this industry. Through excellent shape and structural design and manufacturing, it creates a professional 5 sensor oblique camera. -
Page 5: In The Box
* DJI Terra supports high-precision POS file import without laying ground control points * Camera firmware is automatically upgraded online through Share UAV Data Manager * SHARE UAV Data Manager software provides flight data management of captured imagery * Real-time image transmission and telemetry data can be viewed on the DJI RC/App... -
Page 6: Installation
2. Installation 2.1 Camera Introduction The PSDK 102S V2 has an OLED display on the front. When installing the camera, ensure that the display is aligned with the aircraft nose. The lens near the front of the camera is the back-view, and the drive letter is named after the lens Angle orientation, which is opposite to the lens mounting position. -
Page 7: Camera Operation
Camera installation Removal steps: (1) To remove camera, press and hold the release button, rotate the camera in the opposite direction until the red point is aligned with the white point, then remove the camera; (2) Replace the SkyPort covers and lens cover. 3. - Page 8 50 - Fixed solution For accurate imagery geolocation, RTK mode should be used with a RTK flag of Camera temperature Current camera temperature 30℃ The number of times the The trigger times camera has received trigger been received F - Lens facing to the back R - Lens facing to the left Number of photos taken D - Lens facing to the downward...
-
Page 9: Taking Photos
3.2 Taking Photos Pic 5 Pilot screen（indoor） The left bottom window shows the Take working with DJI M300RTK for example, camera is on. real-time image of the down view lens. In this example the indoor light is insufficient and the left bottom image is black. -
Page 10: Dji Pilot Setting
Using DJI Pilot for route planning and set Take working with DJI M300RTK for example ， flight parameters. Pic 6 Pilot App 3.3.1 DJI Pilot Mission Planning - PSDK 102S V2 1) Open DJI Pilot 2) Select Mission Flight 3) Create a route... -
Page 11: Psdk 102S V2 Parameter
Sensor size (H) Minimum interval 4000px 15.6mm 1.0s Click save after setting done。 Pic 7 Create new camera PSDK 102S V2 parameter 3.3.3 Payload setting Enter the payload setting menu, which has those functions: Items Functions Real-time data ON/OFF Real-time data window hide/show 【default: show】... - Page 12 Pic 8 Payload setting Pic 9 Display of Pilot when working As shown in Pic 9, the working environment has relatively weak light intensity. The user can...
-
Page 13: Repair
4.2 Operation environment Recommend Min Specs Items Specs Intel Core i7 Hard Drive Space 512GB Operation System Windows 7/10 4.3 Workflow The main operation of Share Data Manager is to copy photo data from camera and write... -
Page 14: Software Installation
The operation process of copying photos is as follows: 4.4 Software Installation Once the Share UAV Data Manager has been downloaded, open the file and follow the prompts to complete the installation. All installation settings will be set to the default. -
Page 15: Software Interface
Once the installation is complete, Share Data Manager creates two shortcuts on the desktop: "Share Data Manager" and "Share Toolbox". Please log in to the website below to view the latest online tutorial of Share Data Manager： http://bbs.shareuavtec.com/upload/software/ShareElfInstaller.exe 4.5 Software interface Open Share Data Manager, select the camera model as PSDK 102S V2, and select the UAV that was used to conduct the flight with. - Page 16 As shown in the image above, flights are sorted by shot time and all are displayed on the Share Data Manager. We can see the name of the flight (corresponding to the POS file on the GPS disk) and the time of shot There is a “detail”...
-
Page 17: Functions
In the camera, the photos and POS data are stored separately. Through the Share Data Manager, the photos can be associated with the corresponding POS, and the POS can be written into the photos when copying data 4.6 Functions... - Page 18 （3）Copy Settings complete, click Start Copy to enter the copy process interface. The current copy progress and remaining time are displayed on the page. （4）Under normal circumstances, the copy is completed when the copy progress reaches 100%. At this point, all the images have been copied to the save folder and the stand project files...
- Page 19 have been generated. （5）Open folder and view the copied imagery data. There are several flight folders and an Excel file that can be imported into ContextCapture as a block file. （6）Under each flight folder there are 5 folders and a text file, the text file is the original POS file, the five folders are named with the first letter of "front, back, left, right and down", storing photos from five perspectives.
-
Page 20: Clean Flights
Each parameter in the copy setting screen must be set correctly to obtain the photos that meet the requirements. The specific meanings of setting parameters are shown in the following table: Parameter Meaning Mandatory/Enable Target folder The target location of images to be copied Generate CC project Whether to generate excel files imported Enable... - Page 21 （2） Click the Clean Flights button, the software will pop up a tip window, asking if you want to clean the selected flights to avoid the error deletion. （3） Click OK and the software will automatically delete the selected flights and restore the camera parameters.
- Page 23 （4） When the cleaning progress reaches 100%, the formatting is complete. 【Attention】 (1) The old photo data in the camera should be removed by Share Data Manager. Manual deletion of the photo data is not recommended. Manually deleting data will cause the camera to fail to take pictures.
-
Page 24: Firmware Upgrade
This feature can only be used if you are connected to the Internet, so we recommend that you stay connected to the Internet when using the Share Data Manager, so that you do not miss the latest firmware updates. -
Page 25: Camera Maintenance
5.Camera Maintenance When using the oblique camera, please pay attention to the daily maintenance. 1) Avoid storing the camera in a place of extreme hot, strong vibration, strong magnetic and high humidity. 2) Please do not use detergent containing diluent or gasoline and other organic solvents to clean UV Lens. -
Page 26: After Sales
6. After sales 6.1 Delivery 1) All equipment delivered by SHARE UAV shall be packed in accordance with the standard protective measures for packaging and transportation. Such packaging shall meet the requirements for long-distance transportation, moisture resistance, shock resistance, rust prevention, etc. -
Page 27: After-Sales Service
Party A: Buyer of Products Party B: Shenzhen Share UAV Technology Co., LTD The after-sales service content shall refer to the after-sales service regulations of Share UAV; If you have any questions, please contact Shenzhen Share UAV Technology Co., LTD... - Page 28 Official Website YouTube FaceBook If you have any questions about the product Please contact us via email： INFO@SHAREUAVTEC.COM SHENZHEN SHARE UAV TECHNOLOGY CO.,LTD...
