Quick Start Guide
EliteIQ™

1. Wire Your EliteIQ

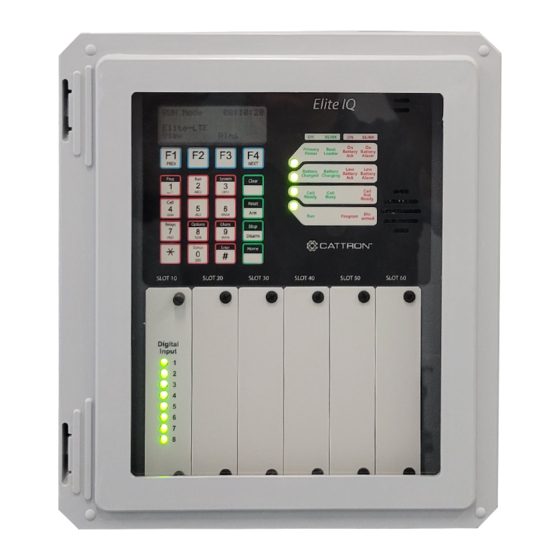

The EliteIQ consists of the main processing unit enclosure and the cellular modem enclosure. The power
and data cables between them will need connected as well as any required I/O connections to be
monitored.

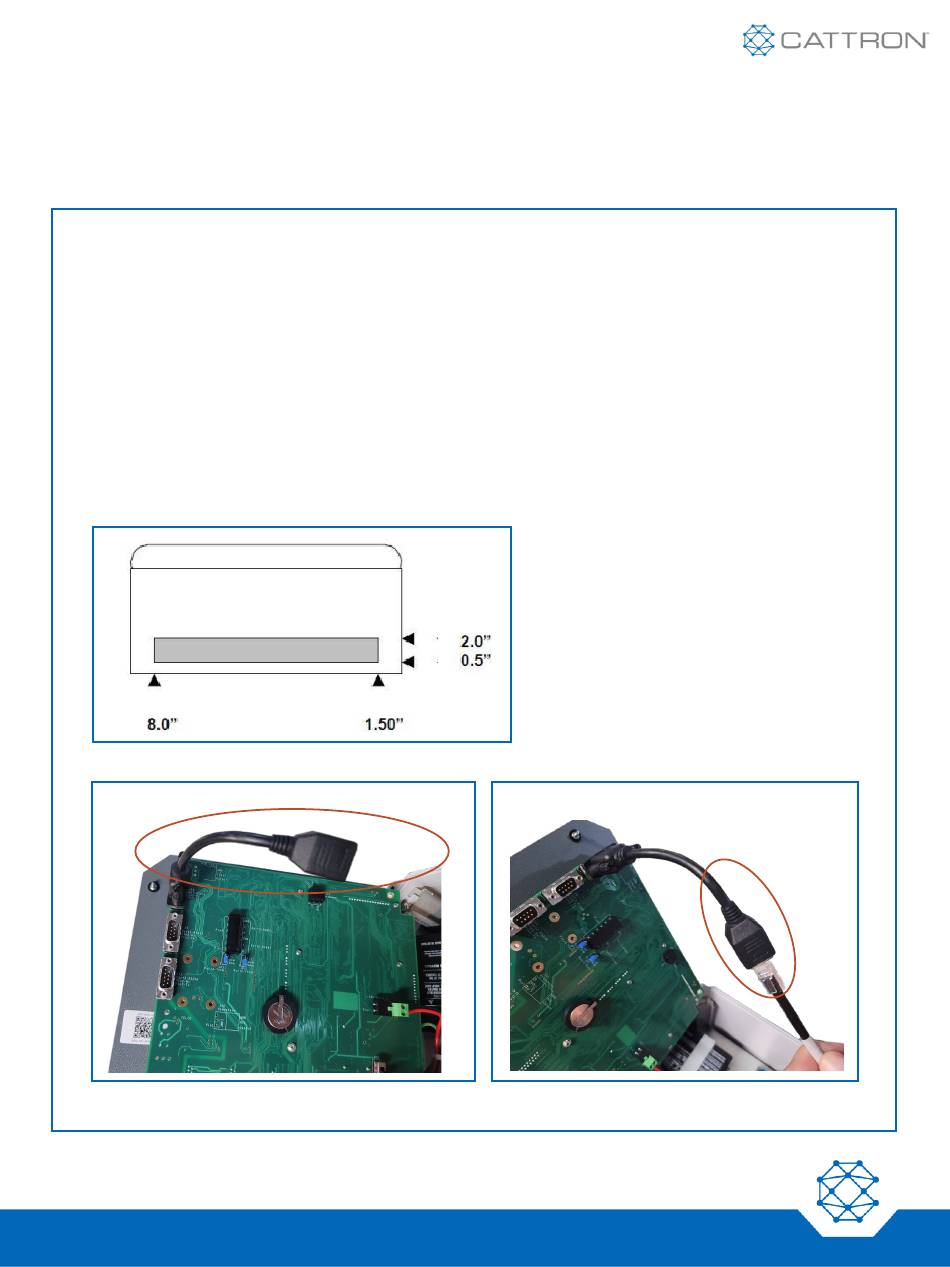

1.
Drill holes in the main processing unit enclosure for the amount of I/O wiring required, affix the
necessary conduit fittings, and assure proper waterproofing. Feed the following wires from the modem
enclosure through as well.
2.
Attach the DB9 (M) to RJ45 (F) adapter, #1800-0082, to J16 on the back of the main processing unit
swing panel.
3.
Connect RJ45/Ethernet cable, #1800-0083, to the DB9/RJ45 adapter.
1.
Recommended
Drill Area
2.
Configuration Sheets and Manuals Are Available at Cattron.com
Nimble: 9M01-920X-A001 | August 2022
Bottom
3.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EliteIQ and is the answer not in the manual?

Questions and answers

Related Manuals for Cattron EliteIQ

Summary of Contents for Cattron EliteIQ

  • Page 1 Quick Start Guide EliteIQ™ 1. Wire Your EliteIQ The EliteIQ consists of the main processing unit enclosure and the cellular modem enclosure. The power and data cables between them will need connected as well as any required I/O connections to be monitored.
  • Page 2 1/V+ and the black wire to pin 2/GND. Ground the white and blue wires to the main panel ground stud. Strip back the cable jacket as needed. Configuration Sheets and Manuals Are Available at Cattron.com Nimble: 9M01-920X-A001 | August 2022...
  • Page 3 Attach the black wire from the +12V BATTERY connector to the negative battery post. Wire AC power to the Line (Black), Ground (Green), and Neutral (White) terminals on the main unit panel. Configuration Sheets and Manuals Are Available at Cattron.com Nimble: 9M01-920X-A001 | August 2022...
  • Page 4 If your system is preconfigured, the I/O will arrive programmed per the configuration sheet you provided to us. If it is not preconfigured or if changes are required, the EliteIQ can be programmed via a locally connected PC, or remotely over the cellular network. Programming instructions can be found in the manual.
  • Page 5 Quick Start Guide EliteIQ™ EliteIQ depicted without customer I/O. For detailed information, reference the schematic drawings and online manual found at https://www.cattron.com/support/user-manuals/water-and-wastewater-user- manuals/. Wired EliteIQ Configuration Sheets and Manuals Are Available at Cattron.com Nimble: 9M01-920X-A001 | August 2022...
