- Page 1 ® CommandPro 23 Series User Manual 9M02-9028-A011-EN...
-
Page 2: Revision History
Cattron Holdings, Inc., or any of its affiliates or agents shall not be liable for incidental or consequential damages of any kind. All Cattron products are sold pursuant to the Terms and Conditions of Sale, a copy of which will be furnished upon request. When used as a tradename herein, Cattron means Cattron Holdings, Inc. -
Page 3: Table Of Contents
® CommandPro 23 Series User Manual Contents 1. Warnings ................................5 2. FCC Compliance Statement ..........................6 3. Safety Rules .................................7 3.1 Installation ..............................7 3.2 Personal Safety ............................7 3.3 Care ................................7 4. Introduction................................8 4.1 ID Codes ..............................8 4.2 Programming ..............................8 4.3 Programming Accessories .........................8 4.4 AutoLink ..............................8 4.5 Options ...............................8 5. - Page 4 ® CommandPro 23 Series User Manual 9.3.1 Battery Replacement ........................... 22 9.3.2 Changing the Transmitter ID Code ...................... 23 9.3.3 Changing the Transmitter Keypad (Handheld) ..................23 9.3.4 Handheld Transmitters ........................25 9.3.5 Belly Box Transmitters ......................... 25 9.4 Receiver Testing ............................25 9.5 Receiver Troubleshooting ........................
-
Page 5: Warnings
® CommandPro 23 Series User Manual Warnings WARNING Read all safety rules and warnings before installing and operating this system. 9M02-9028-A011-EN Rev 4... -
Page 6: Fcc Compliance Statement
® CommandPro 23 Series User Manual FCC Compliance Statement ® The CommandPro Series receivers have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Safety Rules
® CommandPro 23 Series User Manual Safety Rules WARNING Read all instructions. Failure to follow these rules may result in serious personal injury. Installation • GROUND THE RECEIVER CASE. In order to ensure safety of the system, firmly connect the receiver case to earth ground. -
Page 8: Introduction
In short, the MAP allows Cattron to match the control requirements of almost any system. Cattron programs the MAP at the factory. - Page 9 ® CommandPro 23 Series User Manual • Intrinsically Safe. Intrinsically Safe UL-approved systems with NEMA 7 receiver enclosures are available for ratings of up to Class 1, Division 1, Group D. The following features are offered on the 23T23: • Push-button Selector.
-
Page 10: Transmitters

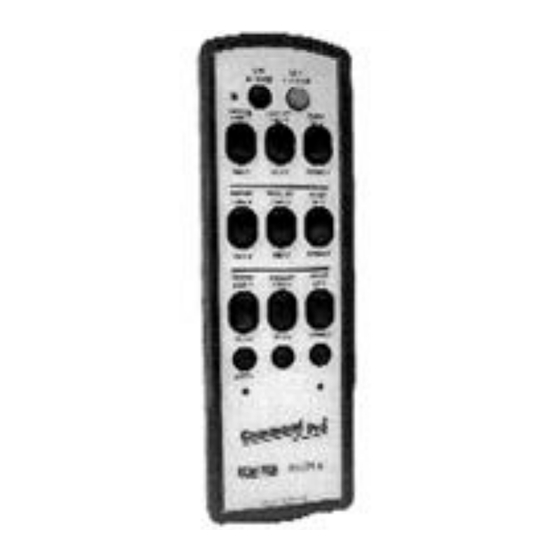

Cattron handheld transmitters are housed in a rugged case molded from a modified polymer plastic that stands up to extremely rugged use. A key feature is the patented switch assembly for control inputs. This long-life elastomeric keypad is ergonomically designed to provide easy operation over long periods of time with exceptional reliability. -
Page 11: Transmitter Safety And Operational Features
® CommandPro 23 Series User Manual Transmitter Safety and Operational Features WARNING Do not operate the system until you are familiar with radio-controlled operation. If you are not familiar with radio-controlled equipment operation, contact your supervisor before attempting to use the radio control system. The following list describes the safety and operational features and characteristics of the transmitters;... -
Page 12: Certifications
® CommandPro 23 Series User Manual Model Weight Dimensions No. of Commands Batteries 2.75” x 6.5” x 1.0” 23T10A 9 oz. 2.75” x 8.0” x 1.0” 23T09A 9 oz. 2.75” x 8.0” x 1.0” 23T14A 9 oz. 3.5” x 11.5” x 1.0” 23T23 1.25 lb. -
Page 13: Receivers
® CommandPro 23 Series User Manual Receivers This section describes the 23R08A, 23R14A, 23R22 and 23RCAN receivers. Many of the features are common in all receivers; therefore, descriptions have been combined for the purposes of this document. CommandPro ® series receivers contain sophisticated programs coupled to electrically tough interfaces. These power systems offer several advantages: •... - Page 14 ® CommandPro 23 Series User Manual Figure 2: 23 Series Receivers (23R08A and 23RCAN) 9M02-9028-A011-EN Rev 4...
- Page 15 ® CommandPro 23 Series User Manual Figure 3: 23 Series Receiver (23R14A) 9M02-9028-A011-EN Rev 4...
- Page 16 ® CommandPro 23 Series User Manual Figure 4: 23 Series Receiver (23R22) 9M02-9028-A011-EN Rev 4...
-
Page 17: Receiver/Decoder
® CommandPro 23 Series User Manual Receiver/Decoder The receivers use an advanced synthesized FM Receiver designed to work in the presence of potentially interfering signals, such as might be encountered from pagers, cell phones, two-way radios, etc. The microprocessor-based decoder ensures a great deal of safety as well as versatility. Commands are received on one of 81 possible frequencies and are checked against a 16-bit address code for proper identity and further tested against a 10-bit CRC check. -
Page 18: Operation
® CommandPro 23 Series User Manual Operation When operating any remote control system, ensure that all safety measures are followed. Before activating the system, make sure personnel are clear of the equipment and that it is safe for the equipment to operate. Make sure the vehicle is properly secured and prepared for the equipment to operate. -
Page 19: Installation Instructions
(refer to receiver enclosure location is not suitable to provide this clearance and the antenna should be mounted at a remote location, the Cattron Remote Antenna Mounting Kit should be used. Contact Cattron at www.cattron.com/contact... -
Page 20: Receiver Mounting
The relay circuits are designed to operate at 8 A continuous over all environmental conditions, and they will withstand momentary surges greater than 8 A. If the combined current in any relay bank exceeds 8 A continuous or 15 A surge, contact Cattron at www.cattron.com/contact regarding proper installation to ensure reliable operation. -
Page 21: Installation Testing
® CommandPro 23 Series User Manual Note: Review the steps above to ensure the accuracy of the wiring before applying power to the installation. Installation Testing Before putting the system into service, the following testing procedure must be performed: 1. Apply power to the receiver. 2. -
Page 22: Maintenance And Troubleshooting
® CommandPro 23 Series User Manual Maintenance and Troubleshooting Monthly Inspection Schedule • Inspect the transmitter for damage to the keypad and case. • Inspect all electrical and antenna connections to ensure they are clean and tight. • Ensure all terminal strips are firmly in place. Transmitter Troubleshooting The transmitters have an LED status indicator to aid in troubleshooting. -
Page 23: Changing The Transmitter Id Code
® CommandPro 23 Series User Manual 9.3.2 Changing the Transmitter ID Code Figure Refer to 1. Remove the screws on the back of the transmitter and remove the back of the case. 2. Attach the programming plug to the four-pin connector on the circuit board. Verify the ID CODE displays. 3. - Page 24 ® CommandPro 23 Series User Manual Figure 7: 23 Series Transmitters with Backs Removed 9M02-9028-A011-EN Rev 4...
-
Page 25: Handheld Transmitters
® CommandPro 23 Series User Manual 9.3.4 Handheld Transmitters When requesting spare parts, please contact Cattron and provide your transmitter model and serial number in the first instance. Item Part Number Spare Transmitter (complete) Use Model Number/Serial Number Shoulder Strap... -
Page 26: Receiver Troubleshooting
The transmitter and receiver are now ready to use. 10. Warranty Statement For service and repairs, go to www.cattron.com/contact. 11. CE Declaration of Conformity Hereby Cattron declares that the radio equipment is in compliance with Directive 2014/53/EU. View the EU Declaration of Conformity document at www.cattron.com 9M02-9028-A011-EN... - Page 27 Due to continuous product improvement, the information provided in this document is subject to change without notice. Cattron Support For remote and communication control systems support, parts and repair, or technical support, visit us online at: www.cattron.com/contact Cattron North America Inc., 655 N River Rd NW, Suite A, Warren, OH 44483 9M02-9028-A011-EN Rev 4...
