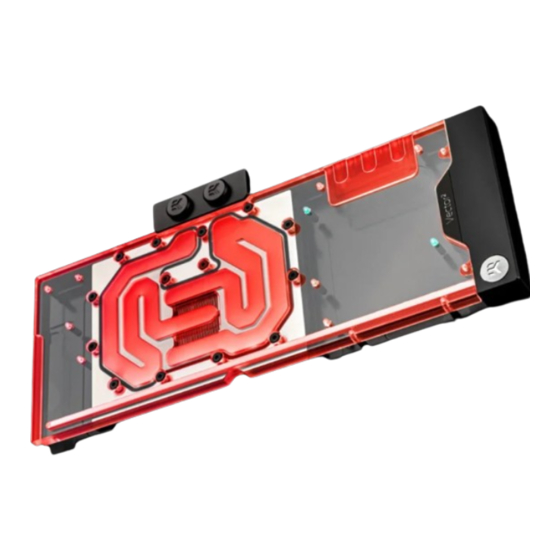

  • Page 1 EK-Quantum Vector² Red Devil RX 7900 XTX D-RGB GPU WATER BLOCK USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER PREPARING THE WATER BLOCK FOR INSTALLATION CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND ATTACHING THE WATER BLOCK INSTALLING THE BACKPLATE ATTACHING THE BACKPLATE INSERTING THE GRAPHICS CARD INTO THE CHASSIS...
  • Page 4: Box Contents

    BOX CONTENTS EAN: 106329 M2.5x4 AX1 Screw (12 pcs) M2.5x8 AX1 Screw (2 pcs) Standoff Ø4.5/2.5 (2 pcs) EK-Quantum Vector Red Devil RX 7900 XTX D-RGB M2.5x6 AX1 Screw (2 pcs) Polyamid Washer M2.5 0.5mm (12 pcs) EK Plug G1/4 (2 pcs) Thermal Pad F 1.0 mm (5 pcs)
  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 27 mm 25.5 mm - 5 -...
  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: - Dimensions: (L x H x W): 325.6 x 148 x 27 mm - D-RGB LED count: 17 - D-RGB cable length: 50 cm - D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground) Position Description...
  • Page 7: Preparing The Graphics Card

    PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the water block onto the graphics card.
  • Page 8: Cutting And Placing Thermal Pads

    CUTTING AND PLACING THERMAL PADS STEP 1 Thermal Pad F – 1.0 mm (120 x 16 mm) The GPU water block comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components, such as COILs, MOSFETs, and drivers.
  • Page 9: Applying Thermal Compound

    APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS.
  • Page 10 STEP 2 Use eleven (11) M2.5 x 4 AX1 Screws and PVC washers to tighten M2.5 PVC WASHER M2.5 x 4 AX1 the PCB on the water block. Tighten the screws evenly using the SCREW Phillips-head screwdriver. EK recommends you start tightening the screws around the GPU core first, and then continuing outward to prevent damage to the GPU.
  • Page 11: Installing The Backplate

    INSTALLING THE BACKPLATE STEP 1 Thermal Pad F – 1.0 mm (120 x 16 mm) After attaching the water block, a few more thermal pads need to be cut into smaller pieces to cover all the necessary components. EK made sure to provide you with more than an adequate quantity of 1 mm 120 mm thermal pads to complete this step.
  • Page 12: Attaching The Backplate

    ATTACHING THE BACKPLATE STEP 1 Position the backplate (including screws and standoffs) onto the BACKPLATE GPU PCB. Make sure all the holes are aligned. Tighten the screws evenly. Before attaching the backplate, make sure all the Thermal Pads are placed correctly! Do not use excessive force! For this step, you will need: Phillips Head Screwdriver...
  • Page 13: Fittings And Tubing

    FITTINGS AND TUBING Screw in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. EK- PLUG G1/4 Do not forget to plug the remaining two openings using the enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks.
  • Page 14: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 15: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
