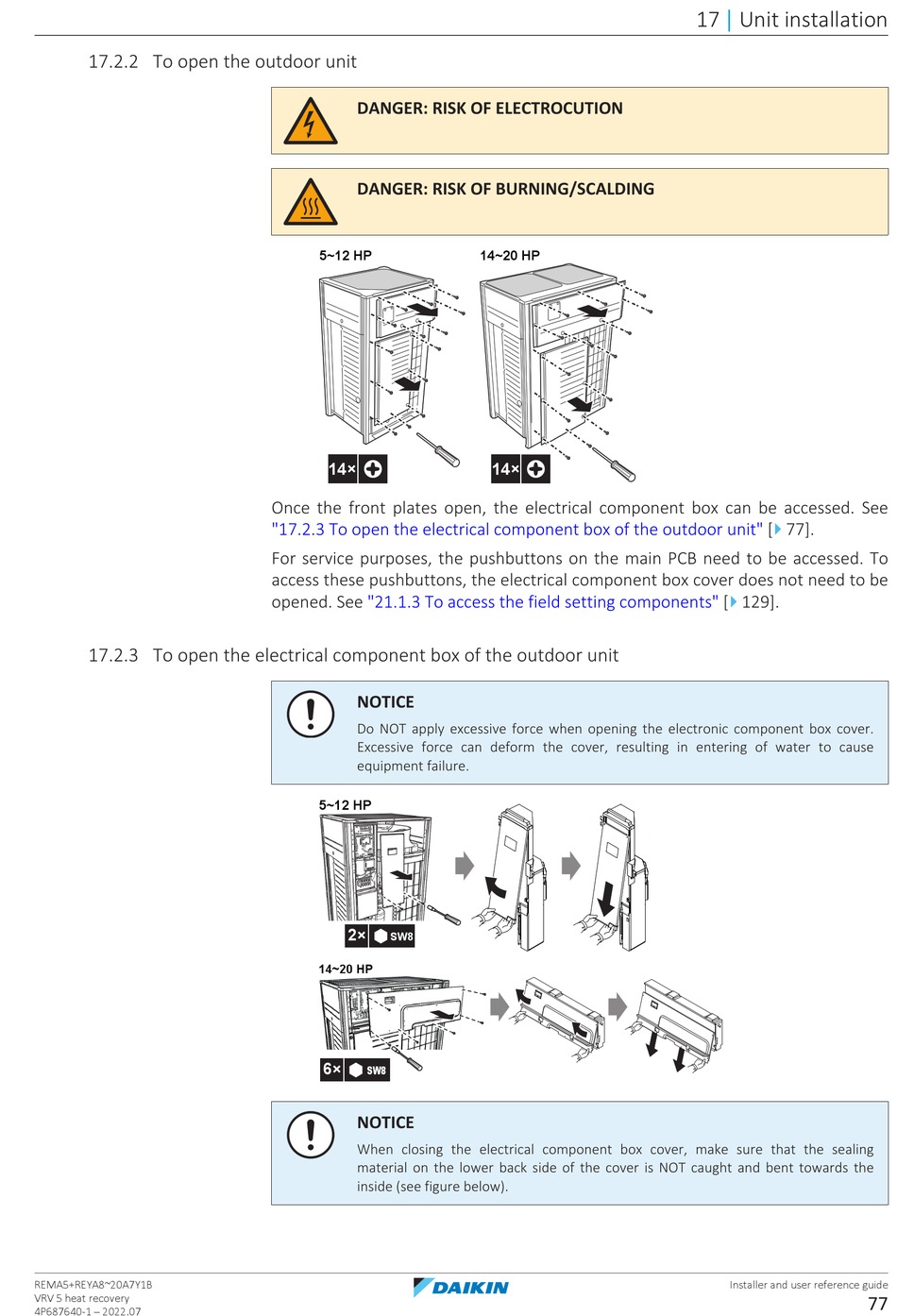

17.2.2 To open the outdoor unit

17.2.3 To open the electrical component box of the outdoor unit

REMA5+REYA8~20A7Y1B
VRV 5 heat recovery
4P687640-1 – 2022.07
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING/SCALDING
5~12 HP
14×
Once the front plates open, the electrical component box can be accessed. See
"17.2.3 To open the electrical component box of the outdoor
For service purposes, the pushbuttons on the main PCB need to be accessed. To
access these pushbuttons, the electrical component box cover does not need to be
opened. See "21.1.3 To access the field setting
NOTICE
Do NOT apply excessive force when opening the electronic component box cover.
Excessive force can deform the cover, resulting in entering of water to cause
equipment failure.
5~12 HP
2×
SW8
14~20 HP
6×
SW8
NOTICE
When closing the electrical component box cover, make sure that the sealing
material on the lower back side of the cover is NOT caught and bent towards the
inside (see figure below).
14~20 HP
14×
components" [
17 Unit installation
|
4
unit" [ 77].
4
129].
