- Page 1 INLET VALVES IMPULS380 FORS...

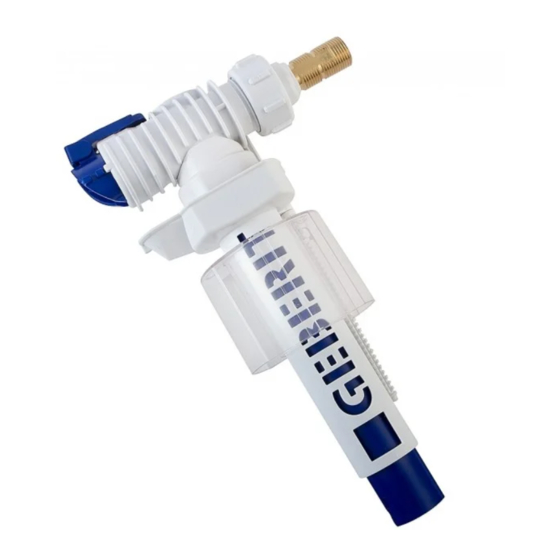

- Page 3 Art. No. 222.012.00.1 The Geberit Impuls380 cistern inlet valve Art. No. 222.012.00.1 with 1/2” nipple is used in some Geberit cisterns or as a general 1/2” inlet valve. The Impuls380 cistern inlet valve has an operating pressure range from 10 to 1000 kPa (0.1 to 10 bar). The valve is designed for fast and quiet filling action.
- Page 4 Service and spare parts Geberit Fors cistern inlet valve is maintenance friendly. In the event of a blockage, the silicone diaphragm and lever part can be easily removed without tools for cleaning. The spare part is supplied as a kit (diaphragm, insert, cover and lever) in one package. After any maintenance or replacement of the valve, make sure that the fill and spill level of the cistern is correctly adjusted.
- Page 5 Importante note: When the complete inlet valve is replaced make sure that the fill and spill level of the cistern is correctly adjusted. If the old Servo valve was clipped to the overflow pipe of the Geberit outlet valve, the existing clip has to be replaced with a new clip Art.
- Page 6 Art. No. 222.026.00.1 The Geberit Impuls380 cistern inlet valve Art. No. 222.026.00.1 with long 3/8” stratos nipple is used in a number of cisterns from Caroma and Villeroy & Boch. The Impuls380 cistern inlet valve has an operating pressure range from 10 to 1000 kPa (0.1 to 10 bar). The valve is designed for fast and quiet filling action.
- Page 7 The Geberit Impuls380 cistern rear-entry inlet valve Art. No. 222.013.00.1 with 300mm long hose and 3/8” female connection is manufactured for use with the Geberit outlet valve. It fastens onto the overflow pipe of the outlet valve via a clip Art. No. 274.400.00.1 (clip has to be ordered separately).
- Page 8 (1000kPa) shown into opening Accessories If the old servo valve was clipped to the overflow pipe of the Geberit outlet valve, the existing clip has to be replaced with a new clip Art. No. 274.400.00.1. 274.400.00.1 Inlet valve clip...
- Page 9 Geberit Inlet Valves IMPULS380 SERVICE Close stop valve (1) & remove valve (2). Unclip spindle from lever. Undo diaphragm cover (1/4 turn). Remove diaphragm cover. Wash diaphragm and cover with clean water. Align diaphragm with insert. Assemble diaphragm insert and cover Note: This membrane assembly is only suitable for Impuls380 inlet valves.
- Page 10 Fors bottom Inlet valve! Ensure diaphragm is aligned with insert. Wash diaphragm with clean water. Assemble diaphragm insert and cover. Note: Fors is also fitted with a filter which might need cleaning. Lock assembly into housing. Remove water connector, check filter.
- Page 11 Geberit Inlet Valves NOTES...
- Page 12 The required features should therefore be invidvidually clarified in accordance with individual situations at the time of proceeding. All dimensions in mm (10mm = 1cm) This publication GEAU037.2018 supersedes all previous publications. © Copyright Geberit Pty Ltd May 2018...
